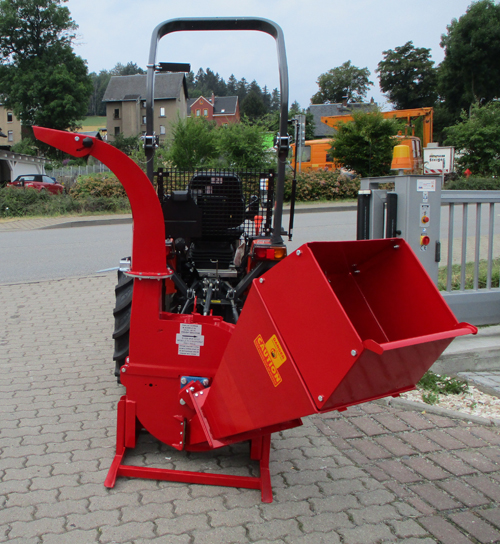

Rear - wood chipper shredder H15 shredder for tractors with PTO tractor

Rear - wood chipper shredder H15 shredder for tractors with PTO tractor
Product no.: H15

1.240,00 EUR   19 % VAT incl.

Shipping inside Germany: free *     * Shipping information

Shipping time: immediately available from stock, since we have several stores in the vicinity, we ask for tel. Pre-registration for pick-up


Rear - wood chipper shredder H15 shredder for tractors with PTO tractor

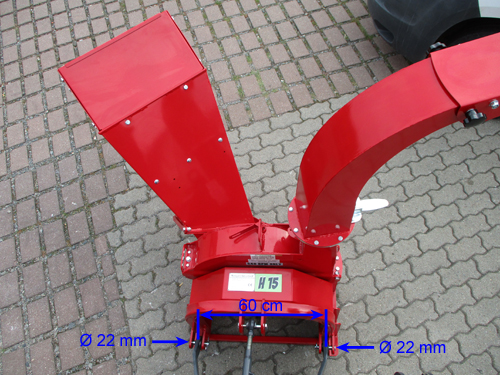

The small tractor should have a rear three-point hitch KATI or KATII and a standard PTO shaft with 540 rpm. clockwise.

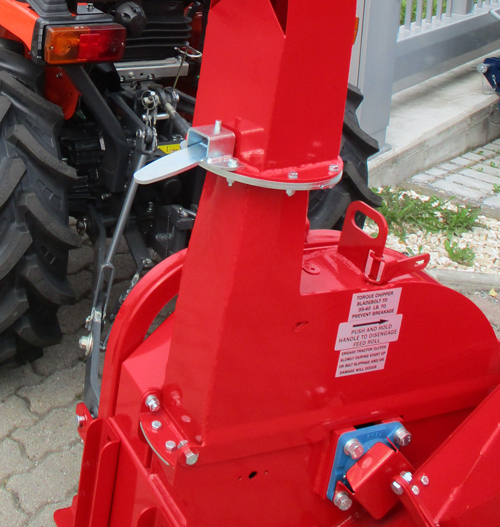

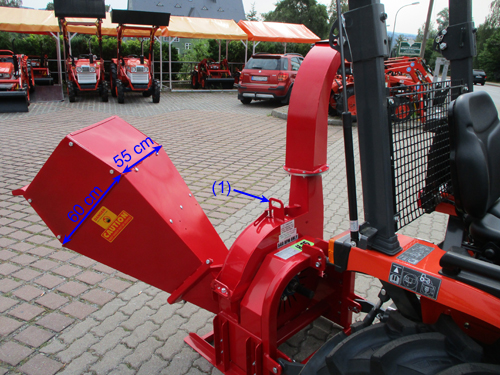

(1) Transport eyelet

This H15 chopper is equipped with a knife disc on which 4 chopping knives are mounted.

With the knife disc you can chop branches up to a thickness of 100 mm.

The knife disc has a diameter of 60 cm and is electronically balanced.

The chopper is built very robustly - no savings were made on the material.

Since there are 4 knives on the knife disc, the chopped material is chopped very small. The chopper is designed for small tractors. A tractor with a dead weight of 500 or 600 kg can drive this chopper. The funnel can be folded in for transport purposes.

It is manufactured according to CE standards, is purchased directly from the factory (imported without intermediaries) and is in stock here.

We also have all common spare parts in stock.

A standard PTO is included in the standard scope of delivery. We offer further PTO shafts below. You can e.g. Buy a PTO shaft with an adjustable slip clutch or with a separator bolt. We would then credit you with 40 euros for the standard PTO included in the standard scope of delivery.

We guarantee a serious transaction - you have a full right of return.

Technical specifications

• It is driven by the PTO shaft of the tractor at a PTO shaft speed of 540 rpm.
Tractor power: from 15 hp
• 600 mm diameter chopping disc

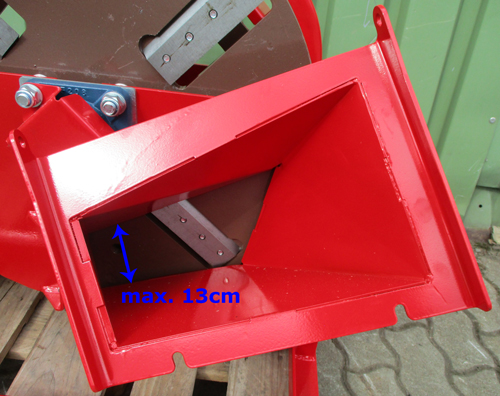

• Max. Chopped material diameter 100 mm

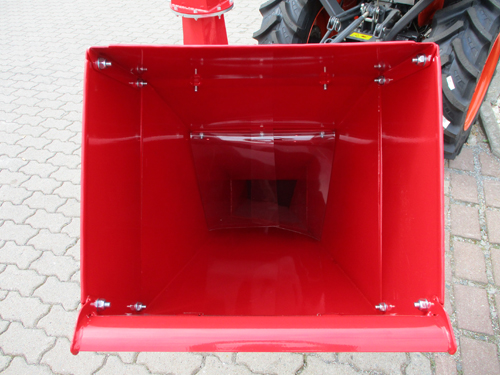

automatic feed through sloping funnel and sloping knife position
Cup size: 50 x 50 cm
• 6-7 m³ / h throughput capacity
• Ejection pipe adjustable on both sides
• 4 chopping knives (16 cm long) and 1 counter knife / cutting knife adjustable

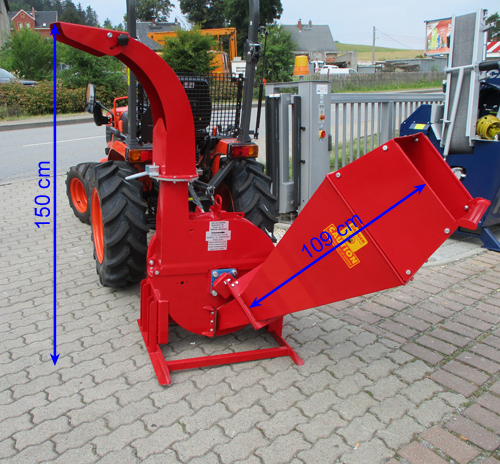

• Dimensions (LxWxH) in working position: 1600 x 1400 x 1500 mm
• Dimensions (LxWxH) in transport position: 1000 x 1400 x 1500 mm
• 195 kg weight

We have been selling the shredder since 2008 and always get it from the same manufacturer!

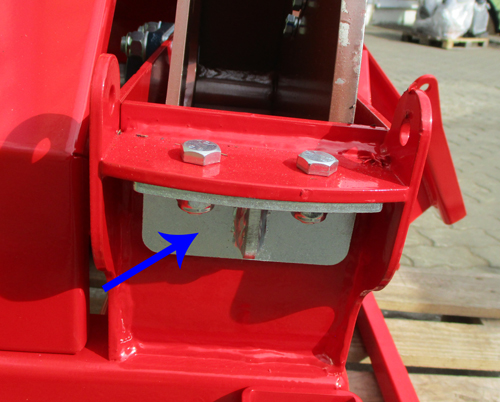

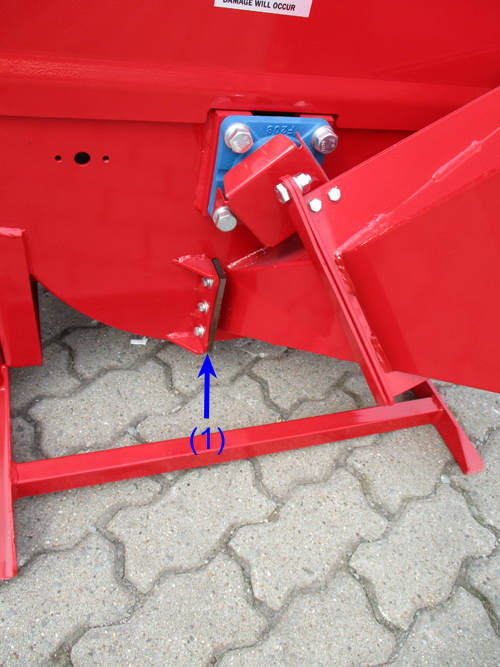

adjustable counter knife

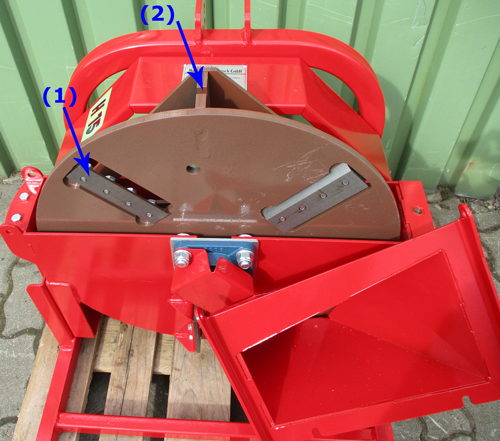

(1) 4 chopping knives/changeable knives each 16 cm long
(2) massive rotor blade (4x installed each 14mm thick)

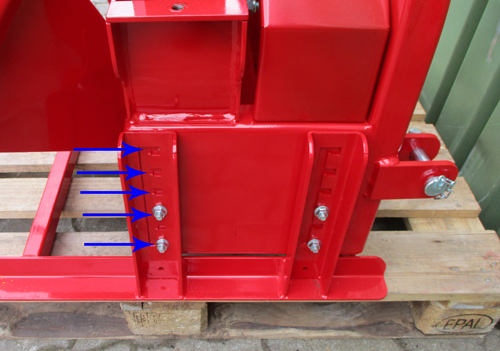

5-fold height adjustment of the base possible

branch breaker

(1) solid rotor blade
(2) replaceable branch breaker

DANGER!
Please shorten the PTO shaft to the appropriate length.

While stocks last!!




⇒ Typing errors, misapprehensions and changes excepted.
