Heck-Balkenmäher / Doppelmessermähwerk BM170D for tractors from 15 hp

The rear beam mower / beam mower for rear-mounted tractors is a double-blade mower. This rear mower is especially suitable for small tractors. The rear beam mower is used for the mowing of wet meadows because of the low ground pressure. Due to its low weight and the low power requirement, it is preferably installed on small tractors.

We have been looking for a long time in the market to find a light weight.

The tractor should have a right-hand rotation of the tailgate by means of a KAT1 / KAT2 three-point hitch and a 540 rev./min.

The PTO shaft is included in the standard delivery.

The device complies with the current CE regulations, including a safety sticker.

ESM / Busatis individual components are installed on the cutting unit / cutter bar.

We guarantee a serious handling - you have full return.

Technical specifications:

• Knife width 170 cm
• Own weight 170 kg
• Working capacityit 2 ha / h
• Working speed 4-12 km / h
• From 15 hp tractor power
• For rear turning point KATI and KATII
• With PTO shaft
• Drive speed 540 revolutions per minute
• hydraulic lifting
• Safety mechanism by floating lever

Attention!

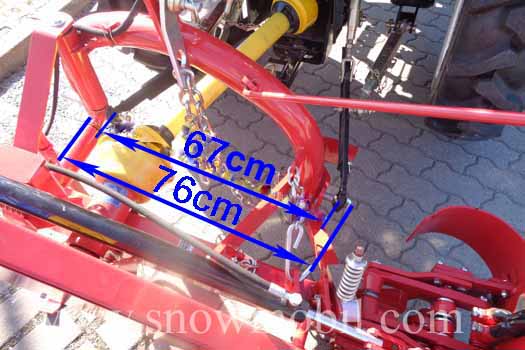

Please shorten the PTO shaft to the appropriate length.

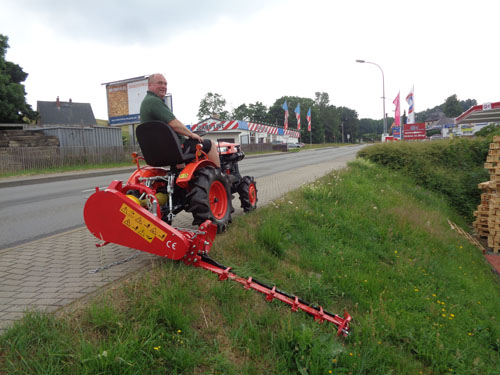

The mower can also be used on slopes and slopes.

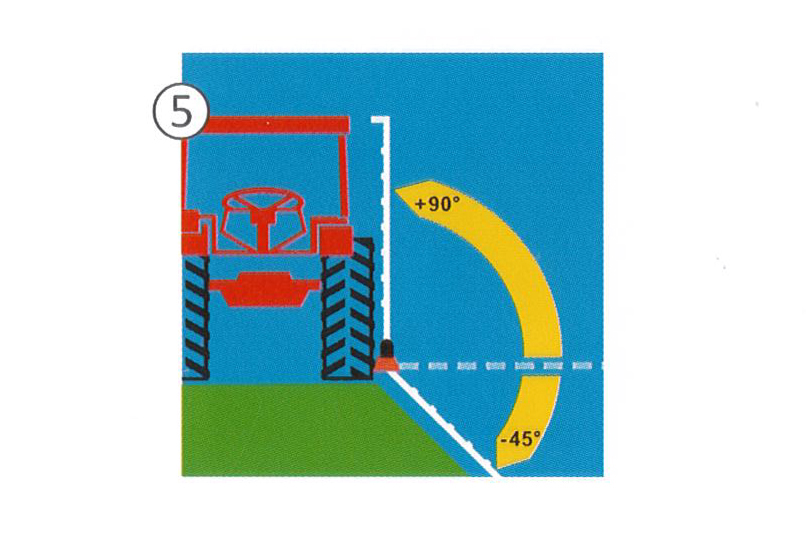

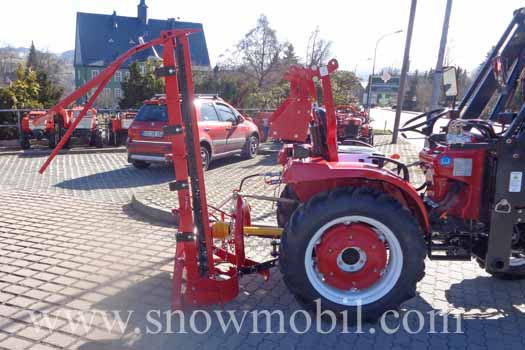

Mowing on slopes and off-road up to + 90 ° and -45 ° possible:

The hydraulic lifting of the cutter bar only works in the range of 0 - 90 ° by means of a one-way control circuit.

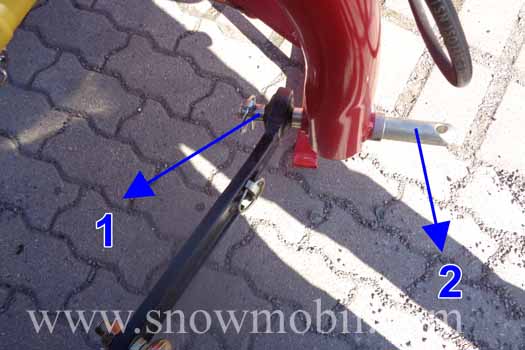

1 -> Bolt diameter 22 mm

2 -> Bolt diameter 28 mm

This galvanized bolt can be moved to the right or left.

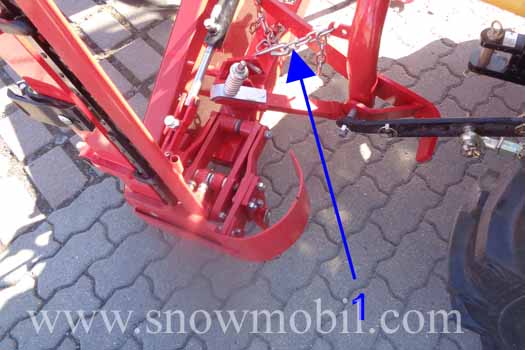

1-> Transport safety chain

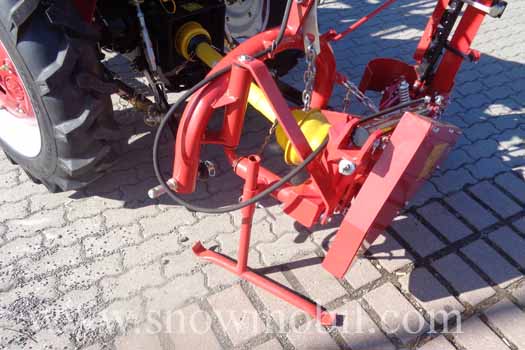

Parking support

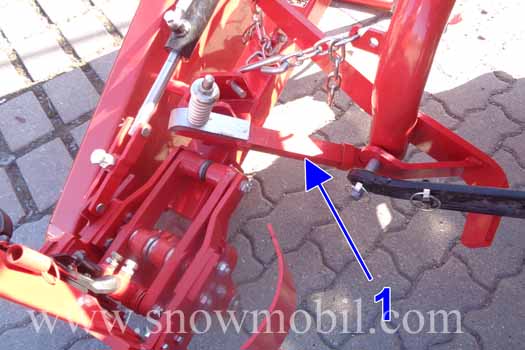

1-> The protection against collision is integrated.

1-> Firmly fixed tailpiece

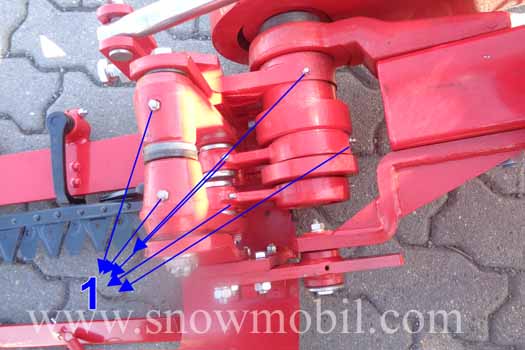

1->The double blade drive is completely lubricable.

1-> Locking

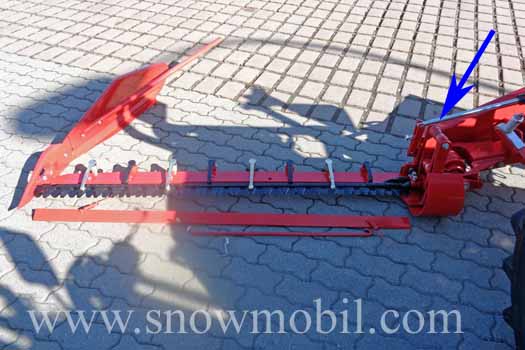

Original double knife ESM Busatis

1-> hydraulic lifting

1 -> Hydraulic lift single acting.

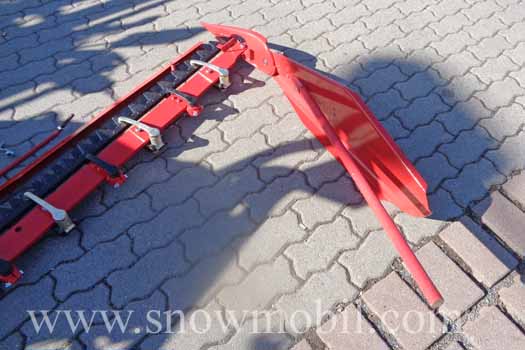

1-> Grass deflectors
