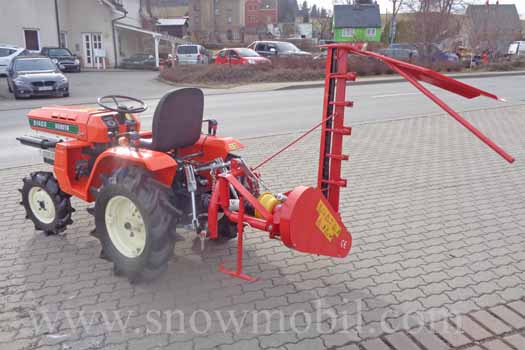

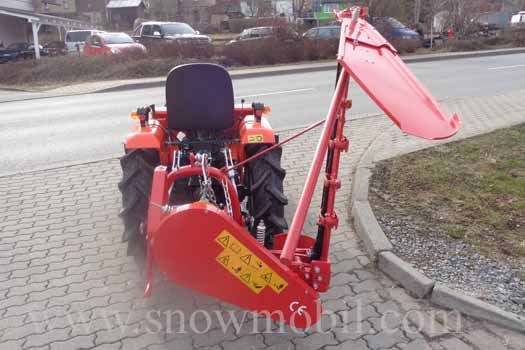

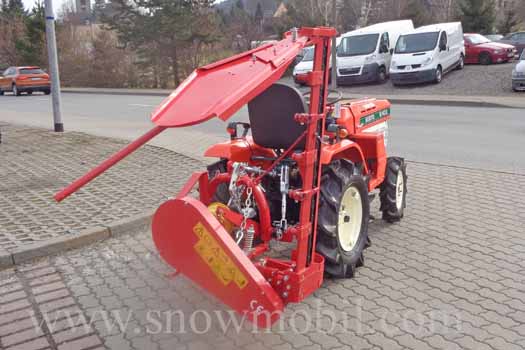

Rear beam mower BM125D for tractors from 15PS
The rear beam mower / beam mower for rear-mounted tractors is a double-blade mower. This rear mower is especially suitable for small tractors. The rear beam mower is used for the mowing of wet meadows because of the low ground pressure. Due to its low weight and the low power requirement, it is preferably installed on small tractors.
We have been looking for a long time in the market to find a light weight.
The tractor should have a right-hand rotation of the tailgate by means of a KAT1 / KAT2 three-point hitch and a 540 rev./min.
The PTO is supplied as standard.
The device complies with the current CE regulations, including a safety sticker.
ESM / Busatis individual components are installed on the cutting unit / cutter bar.
We guarantee a serious handling - you have full return.
Technical specifications:
- Knife width 125 cm
- Own weight 152 kg
- Working capacity 1,5 ha / h
- Working speed 4-12 km / h

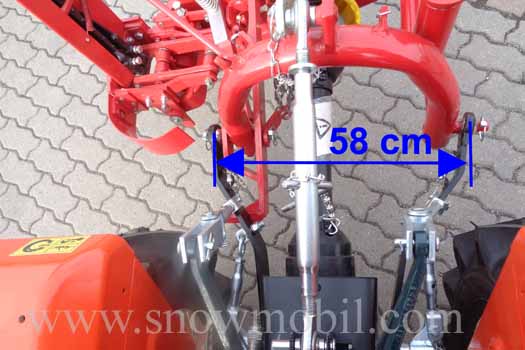

- For rear turning point KAT1 and KAT2
- With PTO shaft
- Drive speed 540 revolutions per minute

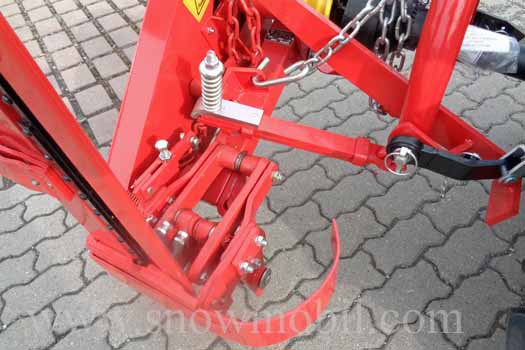

- Safety mechanism by floating lever
Attention!
Please shorten the PTO shaft to the appropriate length.
The mower can also be used on bows and hens.
Mowing on slopes and off-road up to + 90 ° and -45 ° possible:
Bolt diameter 22 mm
This galvanized bolt can be moved to the right or left.

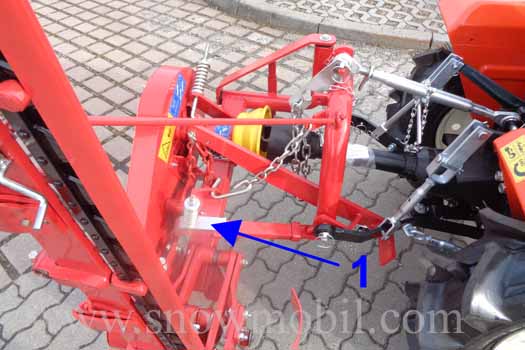

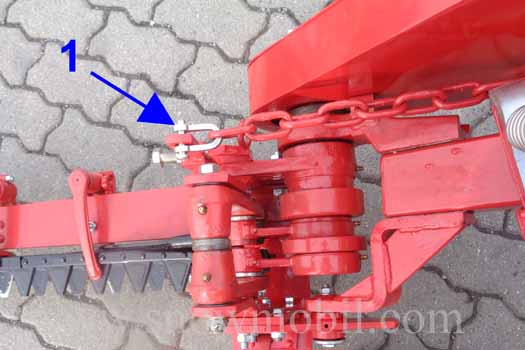

1-> Transport safety chain

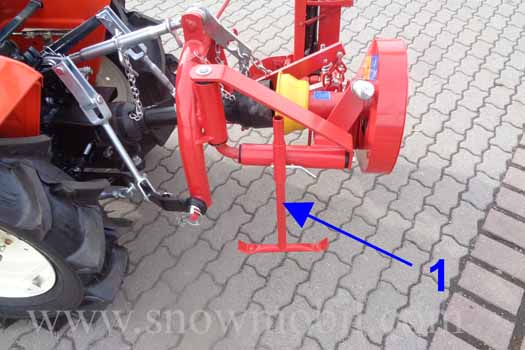

1 -> Parking support

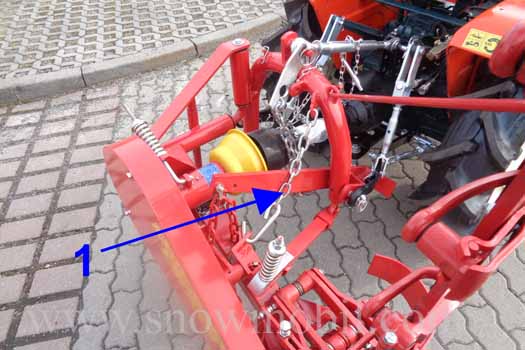

1-> The protection against collision is integrated
1-> Adjustable cutting angle adjustment
1-> Firmly fixed tailpiece

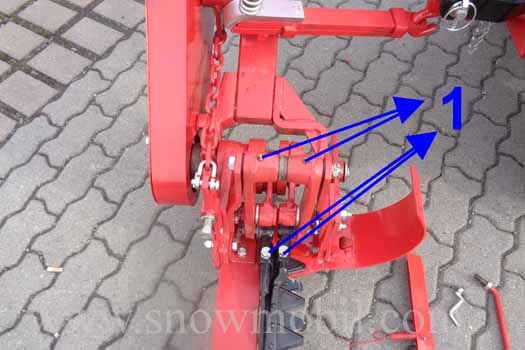

1->The double blade drive is completely lubricable

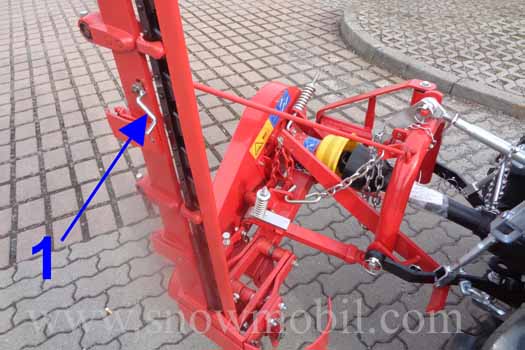

1-> Locking

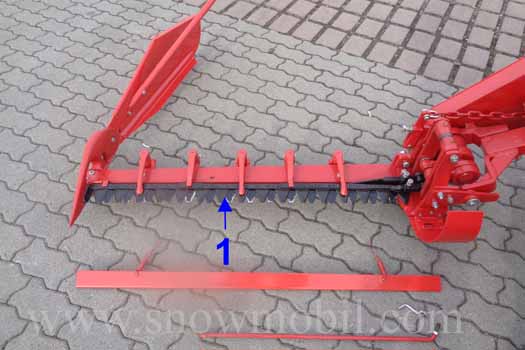

1-> Original double knife ESM Busatis

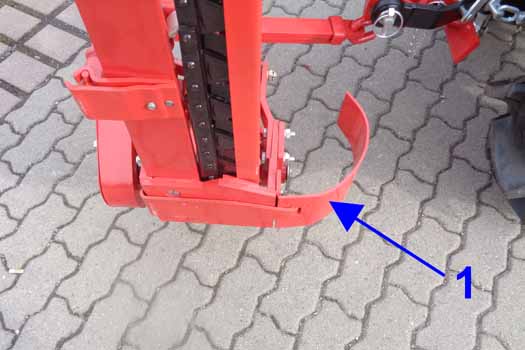

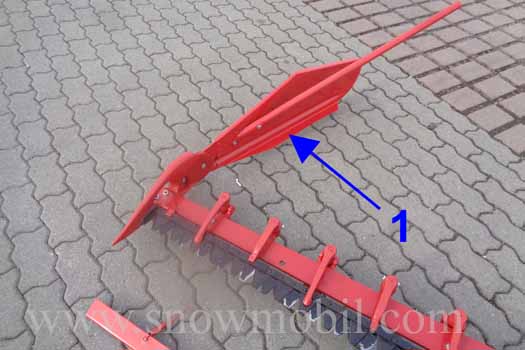

1-> Grass deflectors
