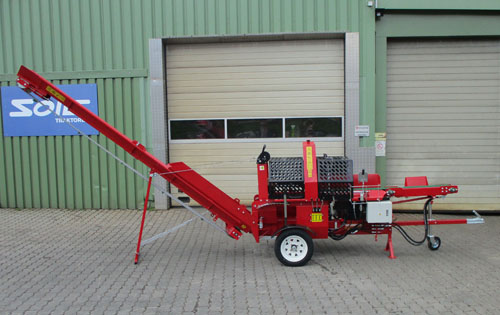

Wood now only warms up once more - when burning! No longer with splitting and sawing.
This machine is mainly bought by private customers who use wood for heating all year round, as well as by semi-professional operators. The proportion of wood heating in Scandinavia (in rural areas) is around 80%.
It can easily be operated by one person.
A demonstration in our house is also possible by prior arrangement by telephone.
functionality
The 7.5 electric motor drives 1 powerful hydraulic pump. This pump drives the splitter and the hydraulic motor for the chainsaw and the hydraulic chainsaw lowering system.
The discharge conveyor belt can be swiveled on both sides.
The hydraulic pump drives the discharge belt and the infeed belt. The splitting cylinder reacts automatically via a pressure control (with very hard wood it splits more slowly and with soft wood it splits faster). The wood is pressed against a heat-treated, energy-saving splitting wedge that is only 1.5 cm thick.

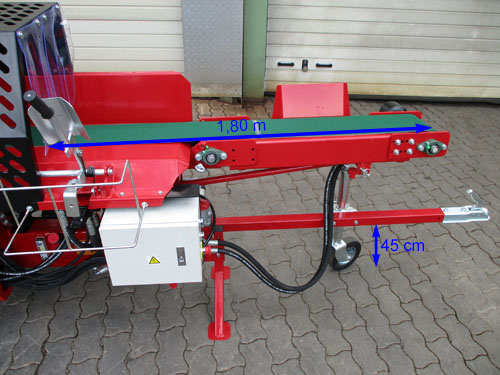

Logs up to 4 m long can be placed on the table. The infeed belt is 180 cm long, so the log can be easily pulled into the machine.
Important for her:
The automatic splitter is completely assembled, adjusted and tested by us.
You have no risk.
A layman would need about a day to screw the machine together - but how should he implement the setting?

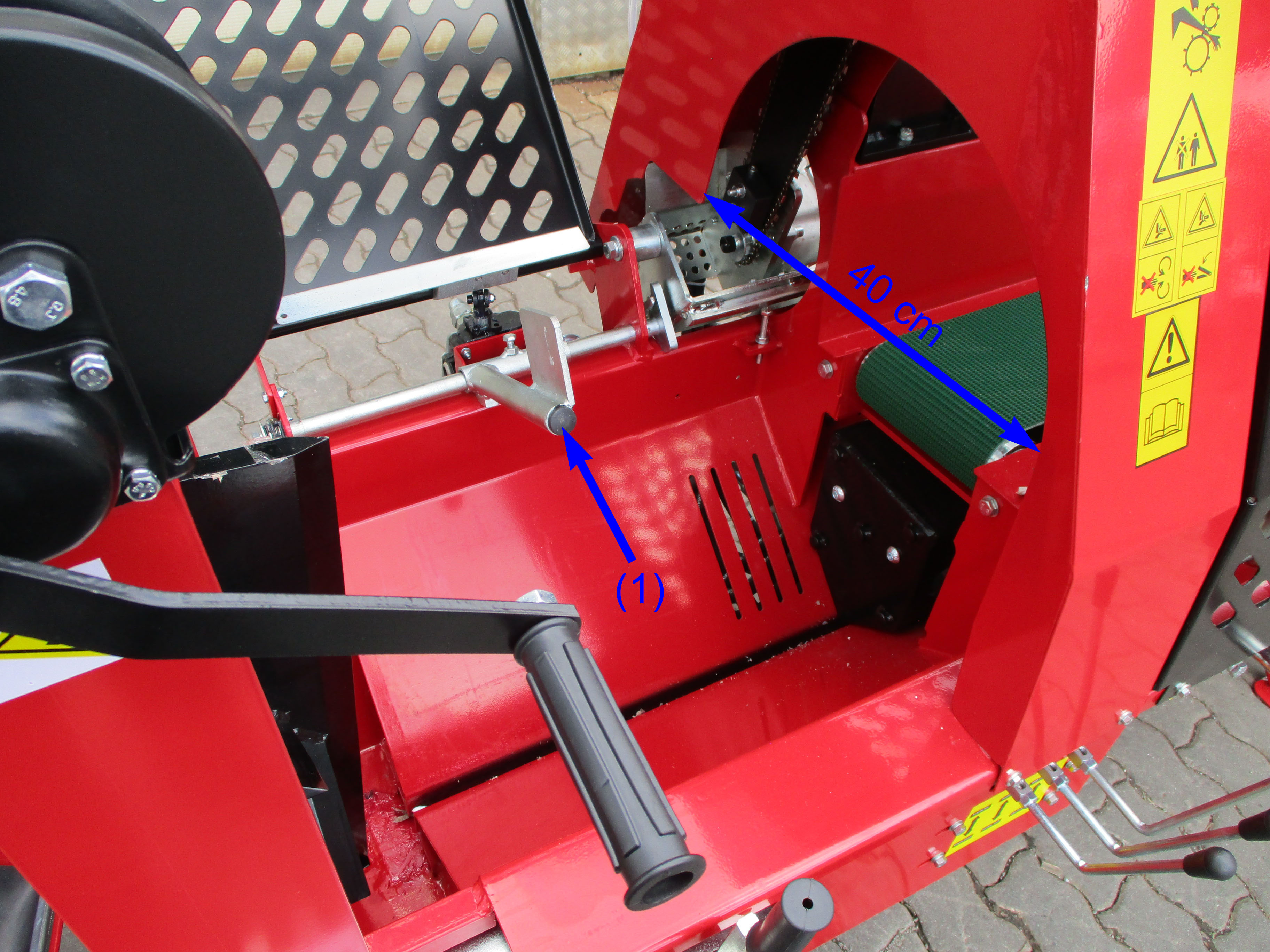

(1) The stop goes back 1.5 cm during the sawing process, so the sawn piece of wood can straight into the splitting channel.

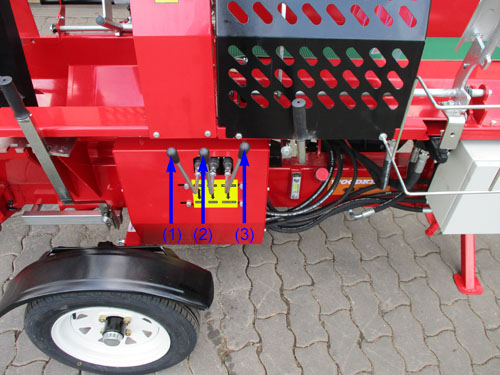

(1) Control lever: This lever operates the hydraulic lifting of the chainsaw. Pressing it lightly means lowering it slowly and pressing it down fully means lowering the chainsaw as quickly as possible. For safety, a compressed air storage tank is connected in between, which prevents the saw chain from jamming. Thus the feed of the chainsaw is absolutely optimized.
(2) Control lever: Forward and reverse of the feed belt
(3) Control lever: For operating a log lifter, support table, lifting table, longitudinal and cross conveyor, etc.

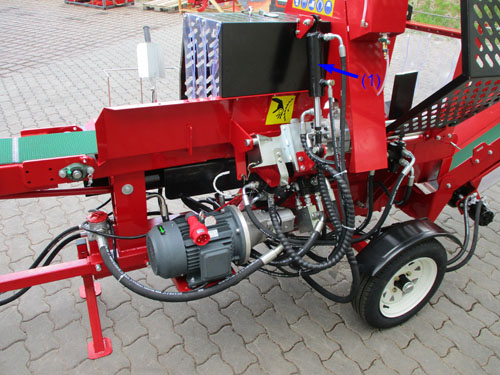

(1) Hydraulic cylinder for the hydraulic lowering of the saw chain

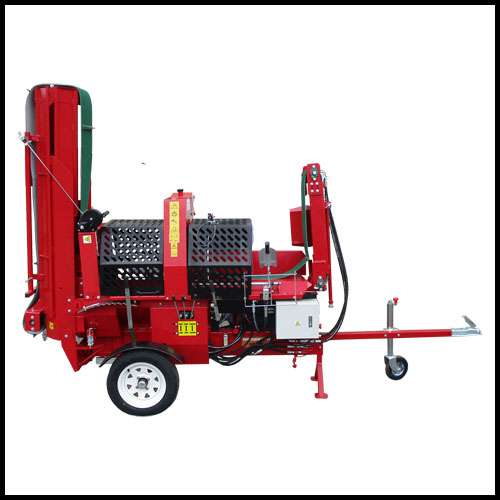

Technical specifications
| Modell |
Woodking 40BF Hydro
|
| Drive |
7.5 kW electric motor 380 V
|
| Splitting power |
20 t
|
| Cutting diameter |
40 cm |
| Saw Chain / Sword |
325 "76 TG 1.5; 45's Sword
|
| adjustable cutting length |
50 cm |
| Achievement according to stem strength |
3 - 5 RM / hour
|
| Splitting speed |
20 cm / sec. |
Weight with conveyor
|
520 kg |

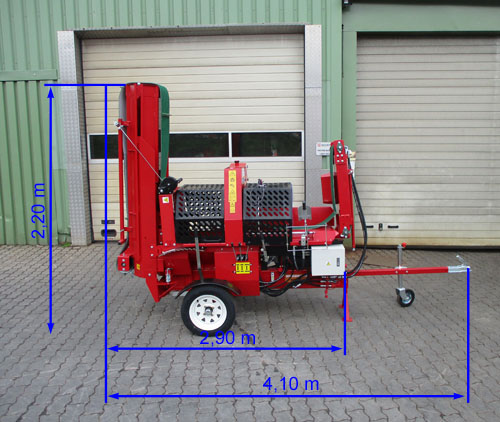

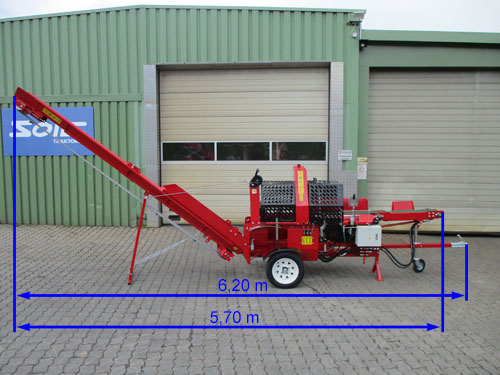

| Dimensions (LxWxH) at transport position |
410x120x210cm
|
| Capacity of the hydraulic pump |
25 l / min. at 200 bar |
| Cylinder diameter |
80 mm |
| High speed valve |
standard |

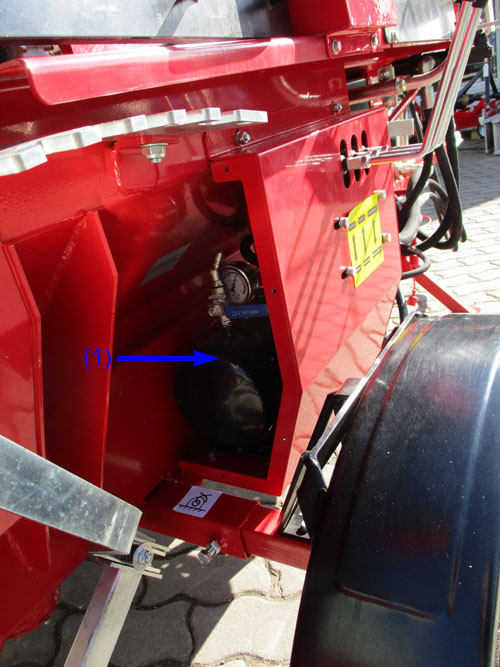

(1) Compressed air storage tank

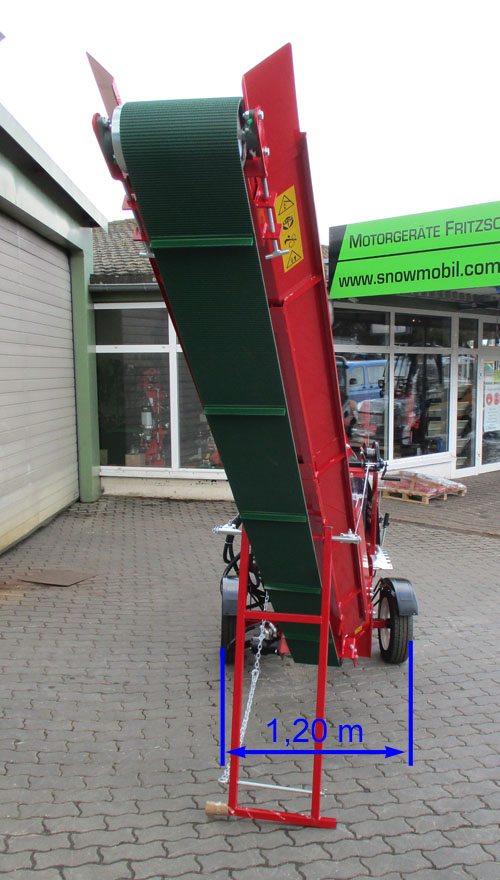

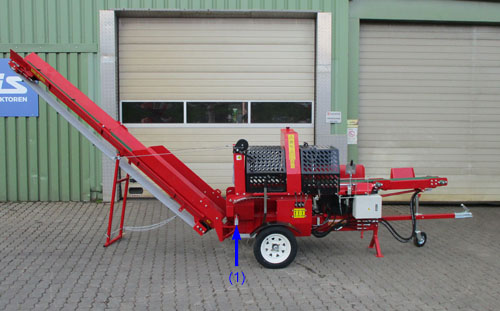

(1) Lever for swiveling the conveyor belt
(1) Including conveyor belt elevation (so that the split pieces of wood can no longer fall down)

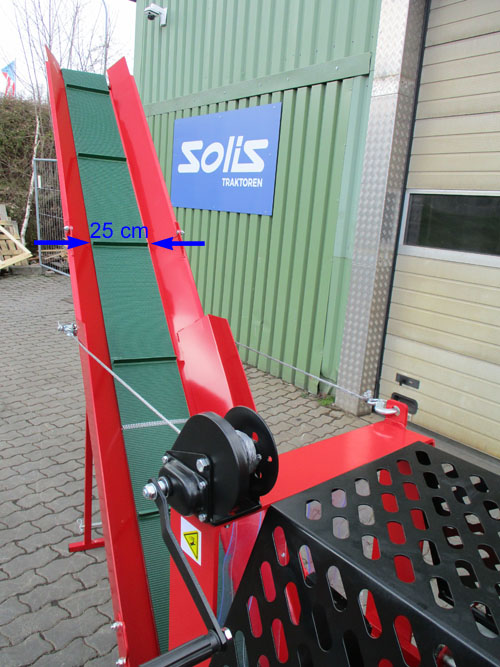

25 cm wide conveyor belt, 3.20 m long conveyor belt

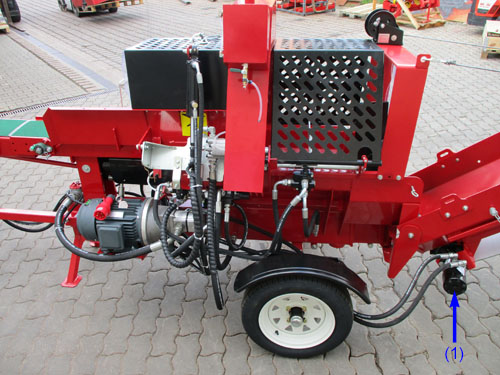

(1) hydraulic drive of the conveyor belt

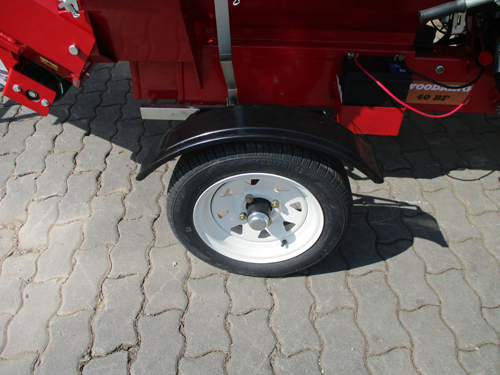

135 / 70R12 tires
The 6 and 4 wedge are included in the standard scope of delivery.

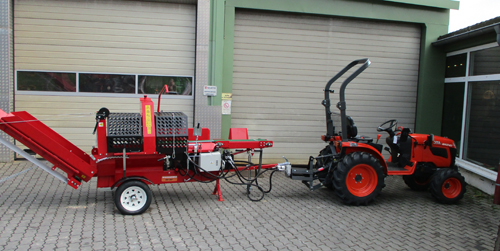

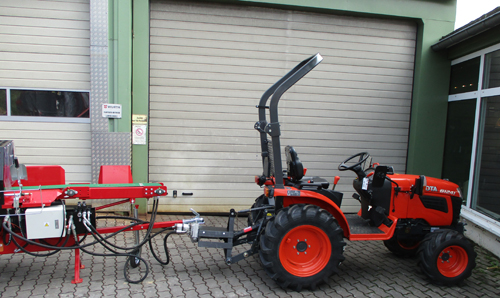

The PTO pump can be attached to any tractor at 540rpm clockwise.
The hose package can be coupled with bayonet locks.
The standard PTO is not included in the scope of delivery but can be purchased for a surcharge of 120.00 euros.

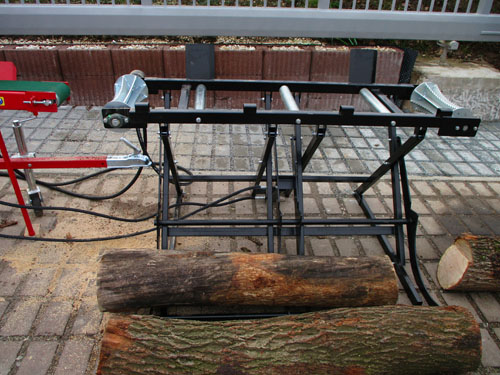

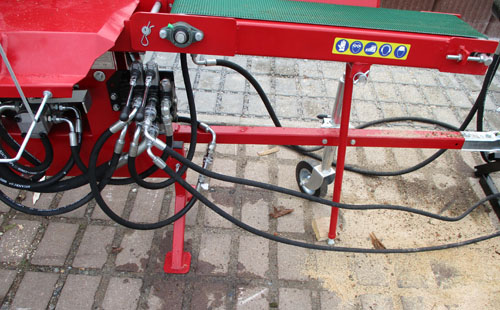

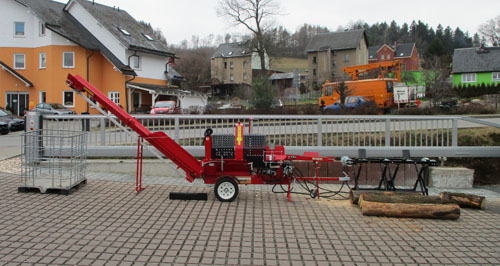

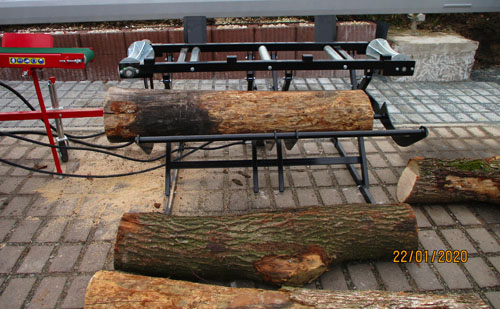

- Log lifter SHW for automatic log splitter for 1999,00 € --- currently not available at the time
The log lifter can be connected to all saw splitters, firewood splitters of the Woodking series.
An additional control valve is NOT included in the scope of delivery of the log lifter.
Up to max. Trunks 4 m long can be lifted with this log lifter.
A hydraulic feed roller transports the log into the feed channel.
The feed belt and the hydraulic feed roller of the log lifter are connected in series and are operated by means of a control lever.

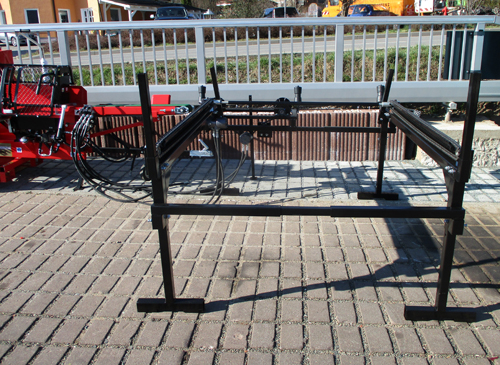

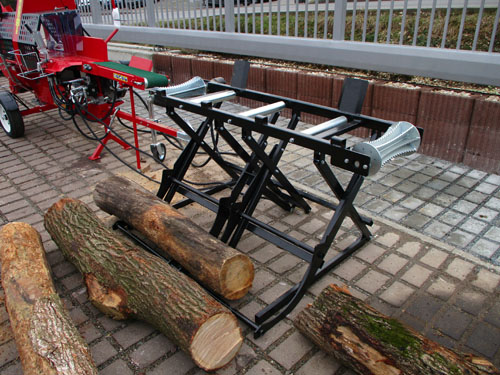

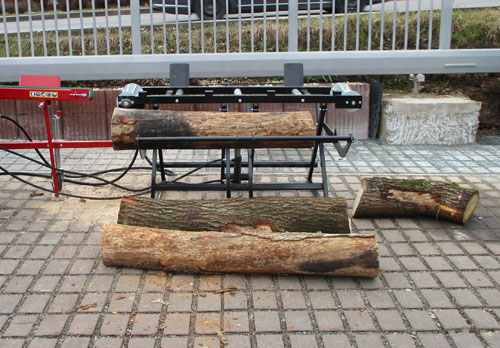

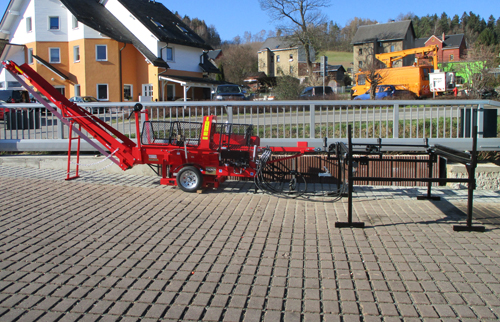

- log support table HZB3000HQ wood support table feed table longitudinal and cross conveyor for Woodking automatic splitters for 2600.00 euros
The wood for loading the saw splitting machine can be conveniently placed on the frame using a forklift or grab arm.

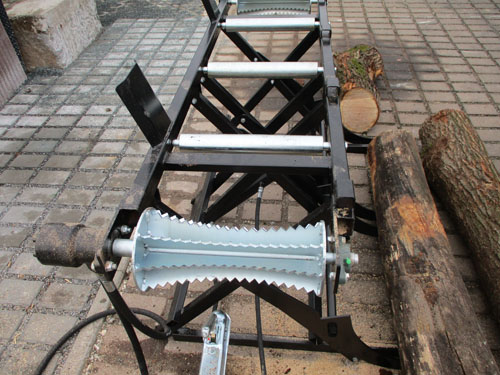

The trunk and the sawing machine are transported by means of a hydraulically driven star wheel roller / spiked roller - this is the longitudinal conveyance.
This means that the spiked roller and the standard feed belt of the automatic sawing machine are connected in series.
The cross-conveyance takes place via 2 roller chains.
The chains are driven hydraulically.
At the end of the chain, 4 log drivers are attached to a shaft, which let the log fall into the longitudinal conveyor.
Several holes are drilled in the supports, so the height and width of the support table can be adjusted depending on the hole pattern.
The two plastic support rollers and the star wheel roller are included.

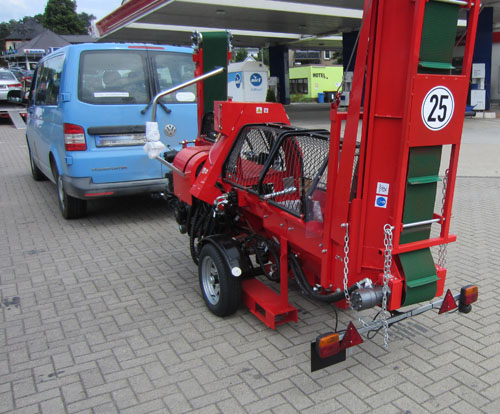

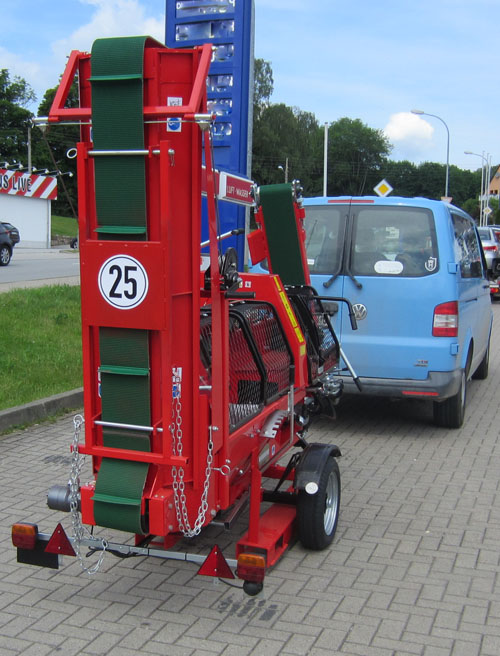

- Conversion to street legal 25 km / h for 650 euros
We equip the splitting machine with the corresponding STVZO lighting device.
The acceptance is carried out by DEKRA.
We will send you the DEKRA report afterwards by registered mail.
Please dismantle the forklift pockets beforehand!

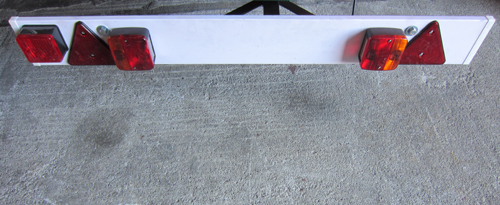

Das ist die aktuelle Lichtleiste.

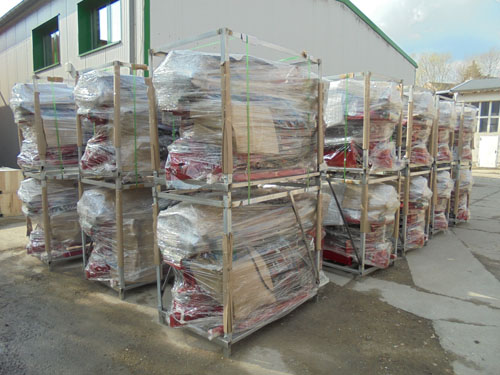

Die neue Lieferung Woodking Sägespaltautomaten ist eingetroffen!
