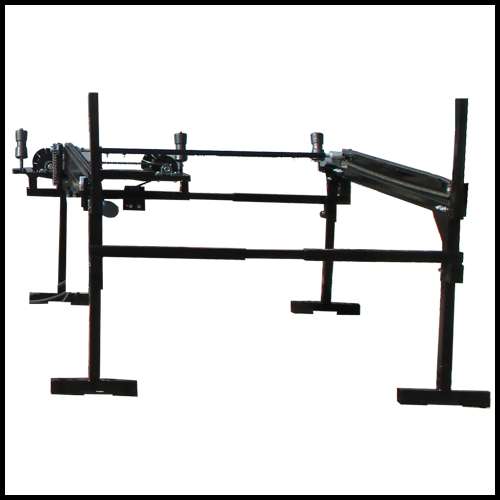

log support table HZB3000HQ wood support table feed table longitudinal and cross conveyor for Woodking automatic splitters

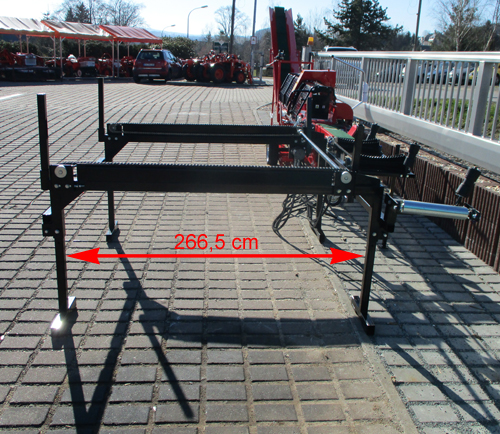

The wood for loading the saw splitting machine can be conveniently placed on the frame using a forklift or grab arm.

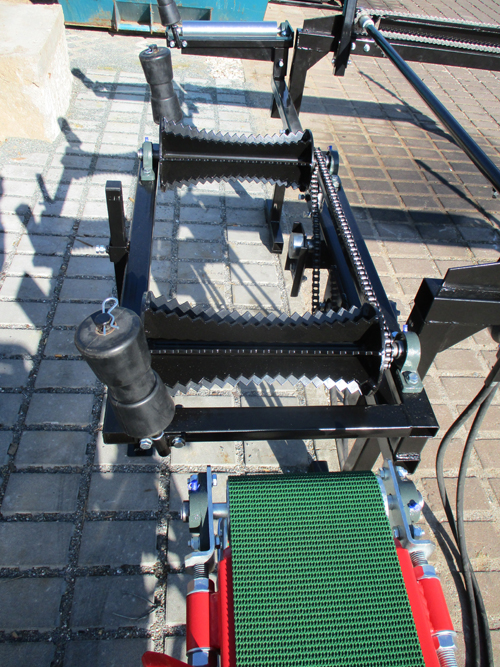

By means of two hydraulically driven star wheel rollers / spiked rollers, the log is transported into the automatic saw blade machine - this is longitudinal conveying.

This means that the spiked roller and the standard feed belt of the automatic sawing machine are connected in series.

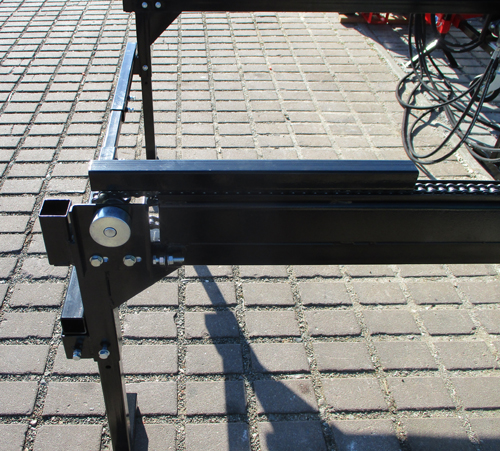

The cross-conveyance takes place via 2 roller chains.

The chains are driven hydraulically.

At the end of the chain, 4 log drivers are attached to a shaft, which let the log fall into the longitudinal conveyor.

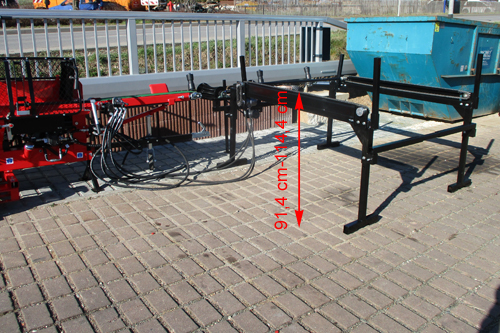

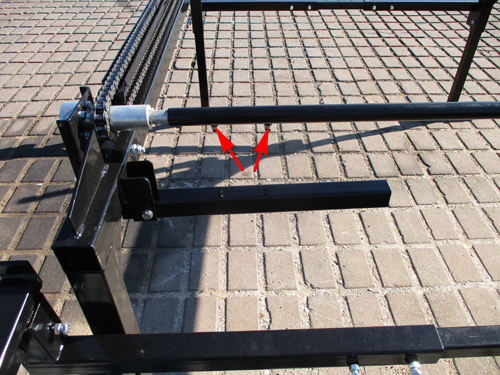

Several holes are drilled in the supports, so the height and width of the support table can be adjusted depending on the hole pattern.

The two plastic support rollers and the star wheel roller are included.

The control valve is not included in the scope of delivery!

Technical specifications

• load capacity: 3000 kg

• max. length of the wood: up to 5 m

• weight approx. 240 kg

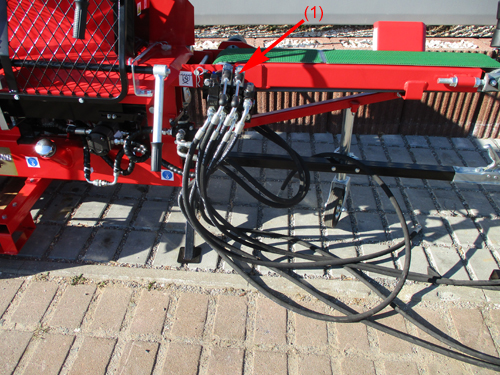

(1) 1 hose set are included

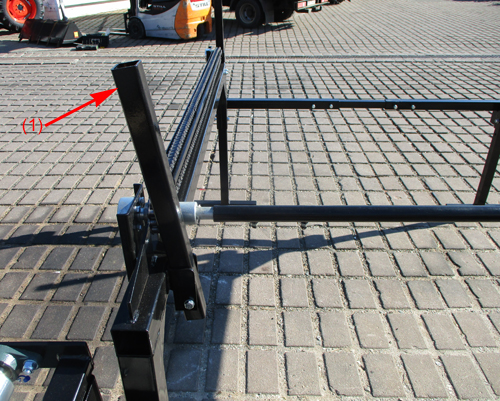

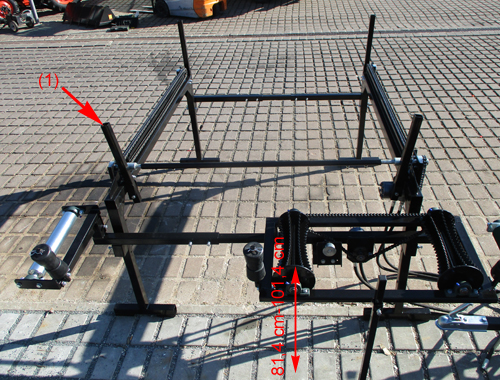

(1) foldable wooden stop

(1) foldable wooden stop

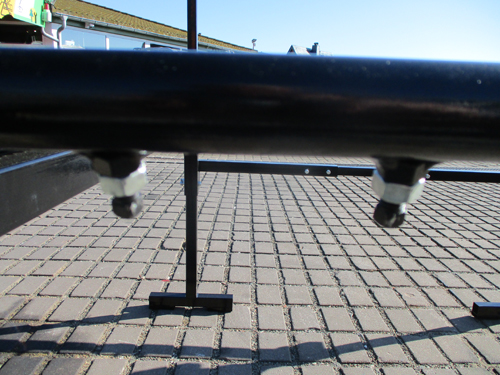

regular driver

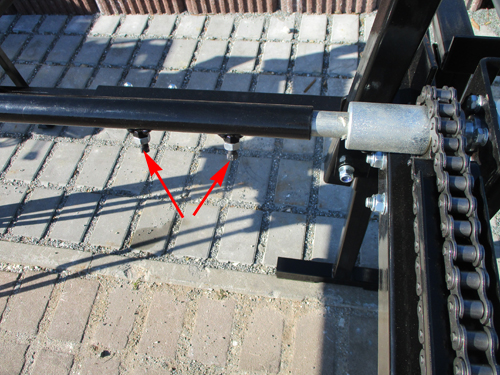

regular driver
