A reliable Yamaha generator with a proven technology and a very good price-performance ratio.
The generator is a tested brand new unit and will be delivered in the original packaging with manual. The unit has been produced for the German or EU market.
The generator has 2 switchable levels. Level 1 is the Full-load level - Level 2 is the ecological level, the RPM of the generator is regulated depending on power output.
Delivery includes 1 bottle of engine oil.
Standard is a low oil shut off in case of absence of oil in the engine - as protection against engine damage.
Any type of electronic equipment will be run with the inverter, because it provides a perfect frequency and voltage stability
The drive motor and the generator share a common cooling fan. This saves space and weight.
An oil alert system (low oil level) stop the unit when oil level is low.
The generator is surrounded by a compact tubular frame.
The engine and the generator are mounted on low vibration rubber blocks.
INVERTER-system:
A absolutely fluctuation free sine wave with constant AC current 50 Hz is produced.
Thus electronic devices such as computers, laptops, televisions and heating control can be operated without interference.
eco mode, saver mode Economy Control:
The generator produces a constant current output, both in low and high rotational speed range, always.
If there is not much power needed, the generator operates at a lower operating speed.
For higher power requirements, the speed of the motor increases automatically.
overload protection:
If too much current is drawn, and so the generator is overloaded the red light - lights up at the overload display.
The current output is interrupted by an electronic switch immediately.
Thus, the generator is protected in every way.
Low oil shutdown:
If the oil level in the engine falls to a minimum level, the low oil shutdown switches off the ignition coil immediately.
Thus prevent damage to the engine.
Only after refilling the oil, the engine will start again.
We guarantee a serious carrying out. You have a full right of return.
Specification
| Model |
INVERTER
gasoline generator
EF2800i Yamaha
|
| nominal frequency |
50 Hz |
| nominal voltage |
230 Volt |
| nominal current |
10,9 A |
| max. power (230 Volt) |
2,8 KVA |
| continuous power (230 Volt) |
2,5 KVA |
| voltage control |
Inverter |
| type of protection |
IP44 |
| sockets |
2x 220 Volt Schuko |
| sockets 3-phase current |
0 |
| Cubic capacity |
171 ccm |
| construction |
compact construction / low noise |
| engine type |
4 stroke OHV Yamaha engine MZ175
with low oil shutdown
2 levels ( level 1 is the Full-load level -
level 2 is the ecological level) |
| max. engine power |
4,0 kW/5,5 PS at 4000rpm. |
| Tank volume |
11,2 liters |
| running time (without refueling) |
7,7 - 17 h at economy mode |
| noise level (7m) |
60 -67 db(A) at economy mode |
| noise level LWA |
94,0 dB(A) |
| Dimensions (LxWxH) |
487 x 395 x 425 mm |
| weight |
30 kg |
| starter system |
hand start |

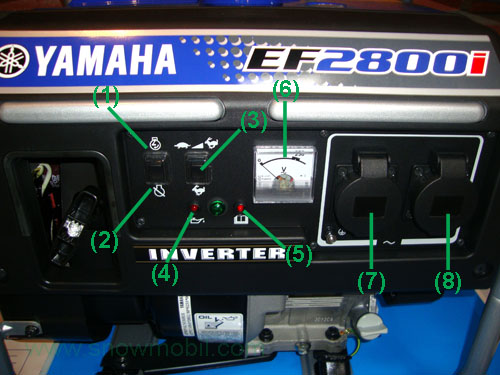

(1) on
(2) off
(3) economy circuit / eco mode
(4) Low oil warning light
(5) Overload indication
(6) Voltmeter
(7) safety socket 1
(8) safety socket 2
We are registered for professional disposal with WEEE Reg. DE26942012.
