A quality DIESEL engine is used as drive engine.
Durability, low oil consumption and low fuel consumption characterize this engine

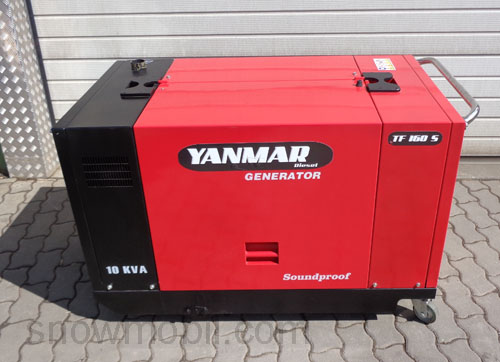

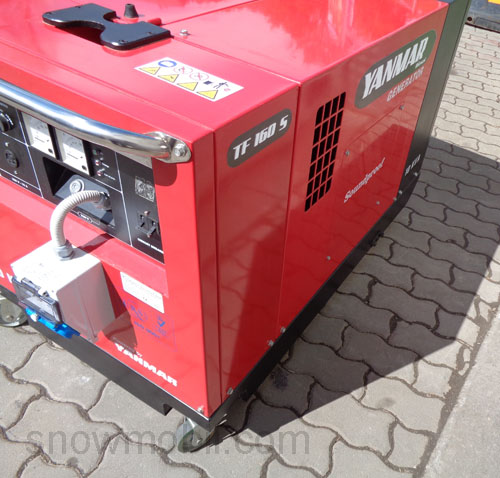

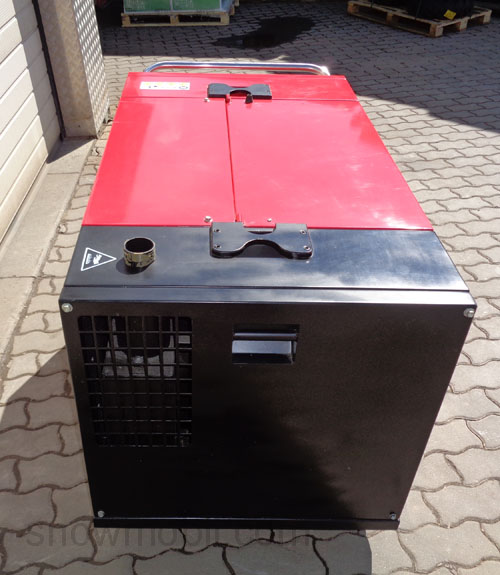

The generator is completely soundproof.
The voltage is controlled via AVR.

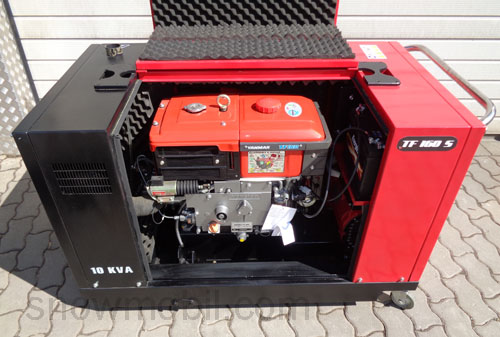

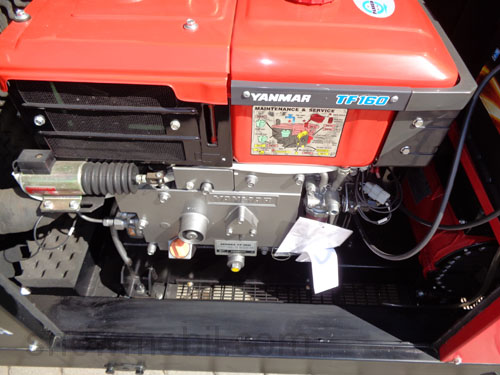

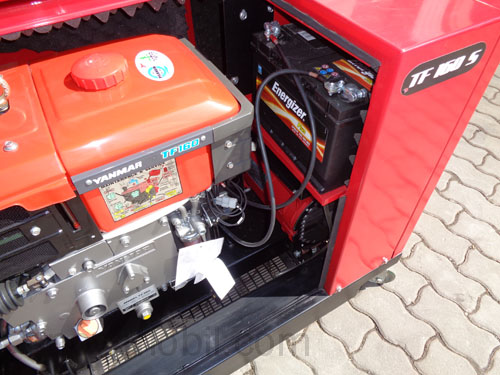

The drive motor is a Yanmar slow-speed engine with a maximum speed of 2400 rpm. It is produced at Yanmar Diesel Indonesia, a branch factory of Yanmar Japan.
Slow-speed motors are characterized by a long life.
The engine is a direct injection engine.

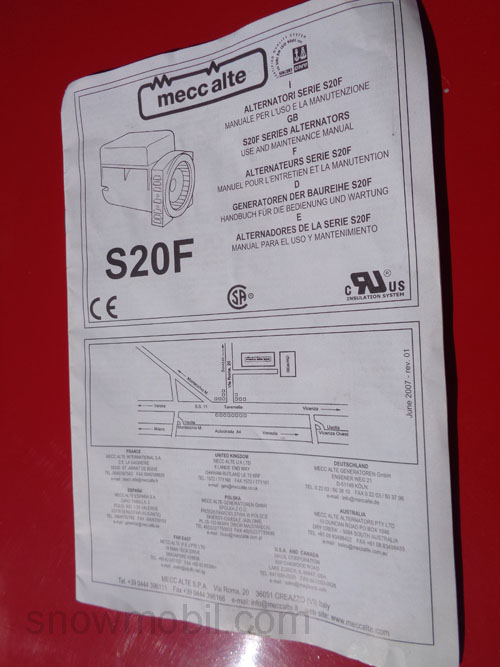

The generator is from the company "Mecc alte" from Italy. This is driven by two V-belts. This is the most common construction of generators in Asia - simple and easy to repair.
We have long sought in Asia to find these manufacturers.
This Power Generator is designed for daily use to generate electricity on construction sites, boats and homes!

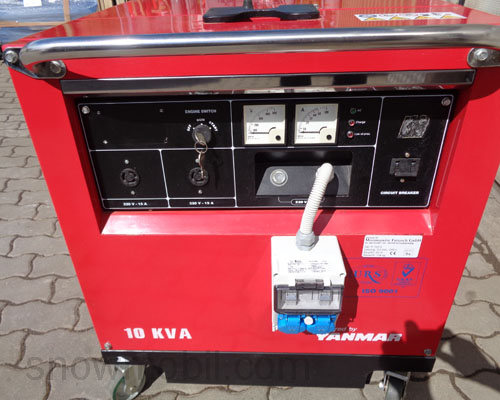

It is fitted as standard with a FI circuit breaker.
You can also get a China Power Generator it costs only 1/3 of this, but it also has a lifetime of only 1/3 compared with a Japanese unit. We had to learn this by ourself.
We assemble and test all machines and devices before shipment, and so you have a lower risk.
We guarantee a serious carrying out. You have a full right of return.

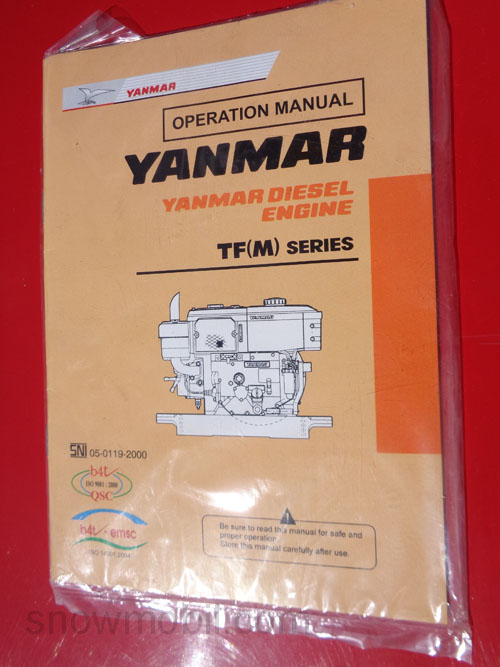

The unit is delivered inclusive a instruction manual.
Here you can see the original prospectus of Yanmar:
Specification
|
Model
|
Synchron Diesel Generator
TF160S
|
|
Frequency
|
50 Hz
|
|
Max. continuous rating
(230 Volt)
|
10,0 KVA
|
|
Generator type
|
syncronic
|
|
Max. rpm of engine
|
2400 rpm.
|
|
Voltage
|
2 x 230 Volt
|
|
Power-Factor
|
1,0
|
|
Voltage-regulation
|
AVR + 1,5%
|
|
Engine performance
|
Yanmar TF160E
1 cylinder direct injection
|
|
Cylinder / displacement
|
1 / 857 ccm
|
|
Engine power (max. at 2400 rpm)
|
16,0 PS / 11,9 kW
|
|
Consumption
|
4,3 l/h
|
|
Tank capacity
|
11,0 Liter
|
|
Starter system
|
Electric start 12V / hand start
|
|
noise level (7m)
|
90 dB
|
|
Dimensions (LxWxH)
|
1420 x 750 x 880 mm
|
|
Weight
|
470 kg
|
>
