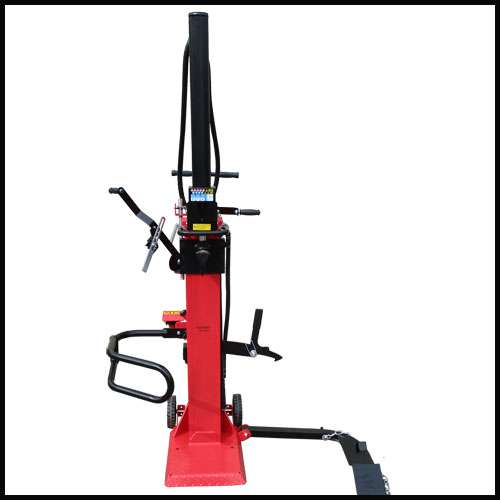

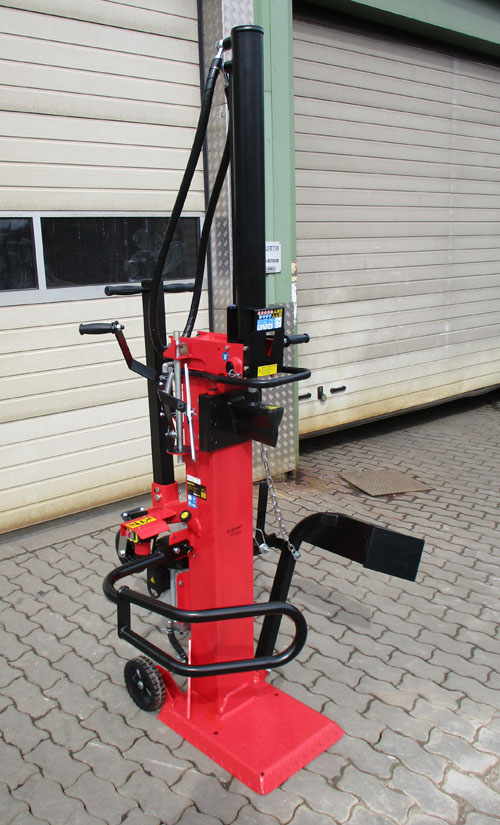

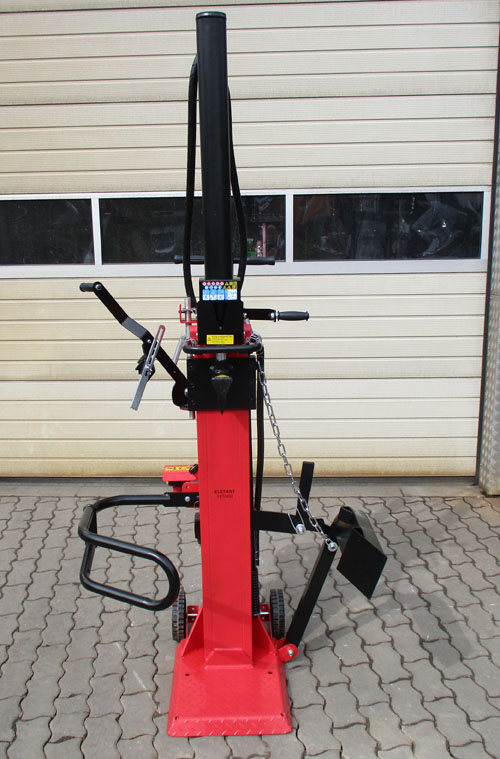

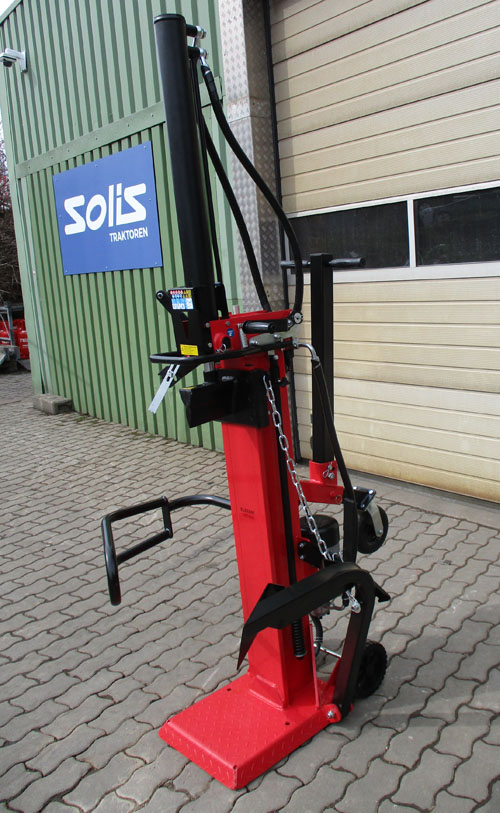

Log splitter Firewood splitter Elefant 14T / 400 with electric motor 400V and log lifter

The two-stage professional hydraulic pump builds up the full splitting pressure as soon as the riving knife encounters resistance.

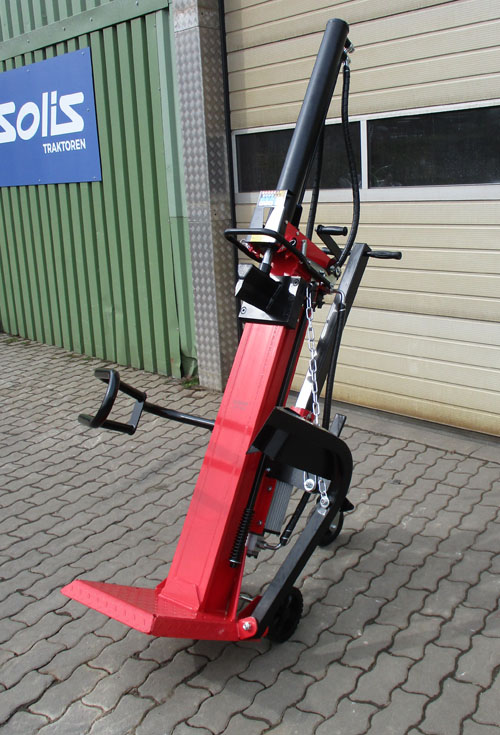

with transport support wheel

Technical specifications

• max.splitting force: 14 t
• Gap length: 1.05 m

• Cylinder stroke: 85 cm

• gap diameter: 10 cm - 50 cm

• Electric motor 400V / 3.5 kW

• Forward speed: 4,2 cm / s - 21,8 cm / s

• Return speed: 5,2 cm / s

• Hydraulic tank: 7,5 liters

• Hydraulic pressure: 246 bar

• Dimensions extended (LxWxD): 230 cm x 100 cm x 120 cm

• Weight: 184.9 kg

• including log lifter

• including chassis

• low base plate

with 2 splitting speeds as standard

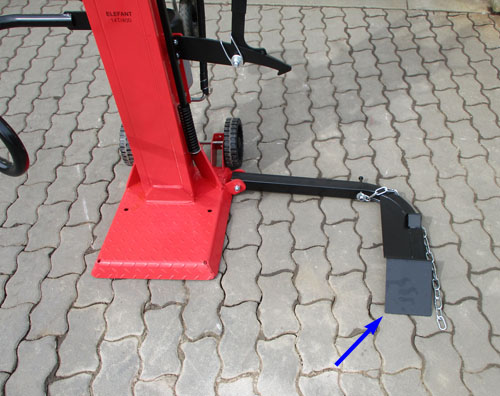

Log lifter

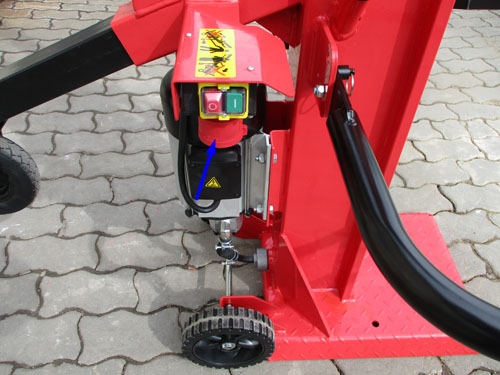

with phase inverter

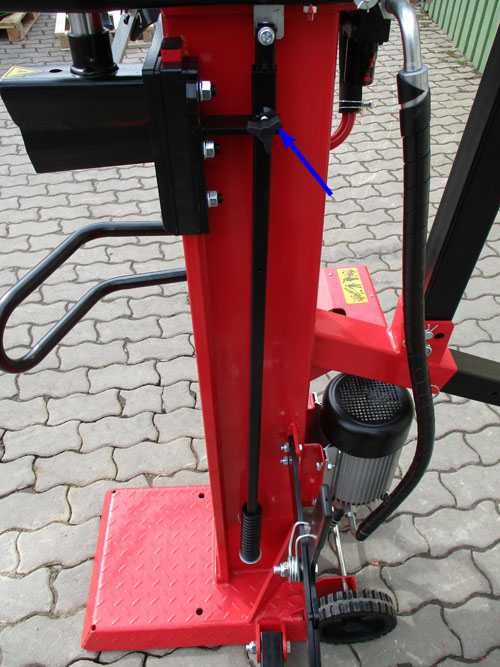

stepless gap height adjustment
