The two-stage professional hydraulic pump brings the full splitting pressure as soon as splitting wedge meets resistance.
This log splitter can also be attached to KATI or adapter to KATII.
Tractors from 20 PS can operate this splitter. However, one should note the weight ratio tractor to wood splitter (net weight of 269 kg). Therefore tractors with a low weight should be equipped with a front loader or front weights so that the tractor does not tilt when lifting the log splitter.
The PTO shaft is not included. A PTO shaft is available for € 120.00.

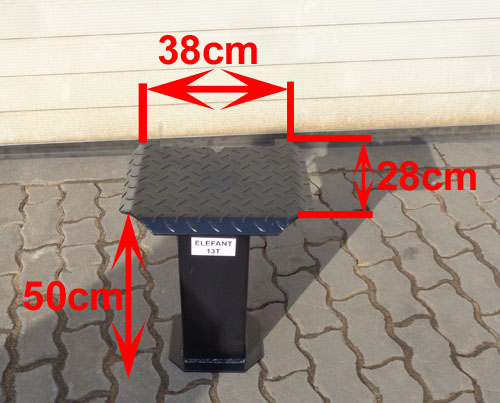

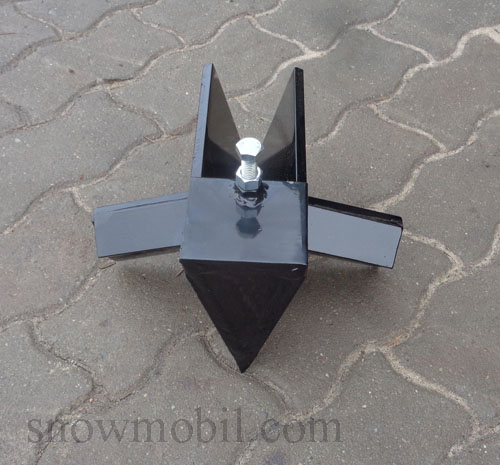

A short table for wood is available for 199.00 Euros and a 4x cross wedge (currently not available at the time) for 99,00 Euros.
Within the European Union, however, this splitting cross, gap extension, gap broadening or short wood table / support table must not be used when using the wood splitter, since the new EU standard EN 609: 2017 for wood splitters, the use of multiple splitting wedges, splitting crosses, gap extensions, slit broadening or short wooden tables / Overlay tables generally forbidden.
Any use of the splitting cross, gap extension, gap broadening or short timber table / support table is at your own risk and responsibility.



Specification:
- max. Spaltkraft: 16 t

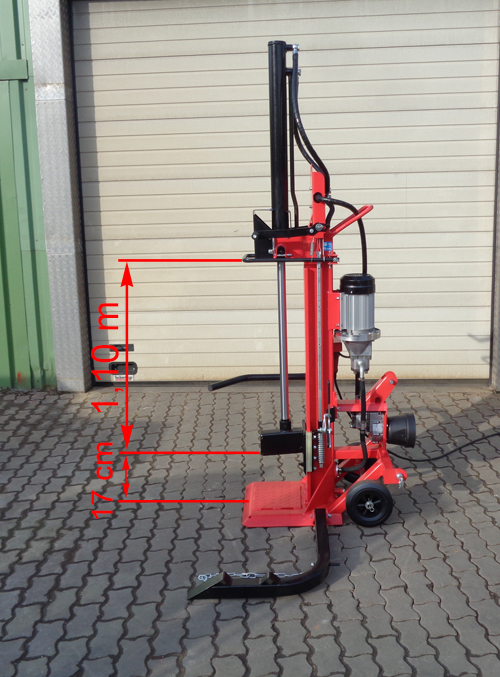

- Spaltlänge: 1,10 m
- Stammdurchmesser: 30 cm
- Zylinderhub: 90 cm
- max. Spaltdurchmesser: 50 cm
- Elektromotor 400V / 4,5 kW

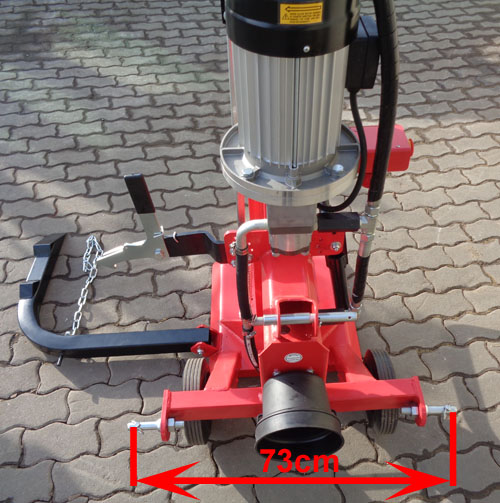

- für Heckdreipunktaufhängung KAT1 - 73 cm Mitte-Mitte Unterlenker
- Vorlaufgeschwindigkeit: 4,6 cm/s - 14,2 cm/s
- Rücklaufgeschwindigkeit: 6,4 cm / s
- Hydrauliktank: 18 Liter
- Hydraulikdruck: 277 bar

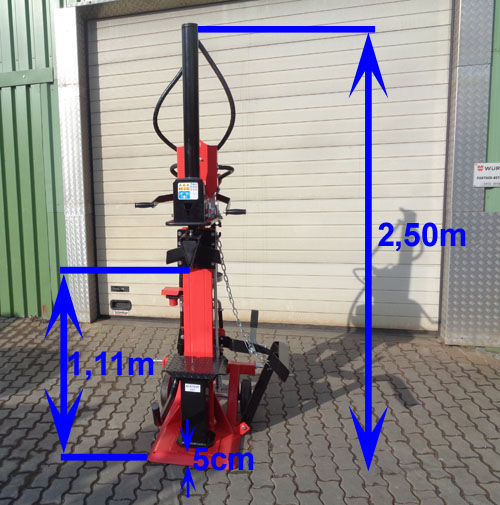

- Abmessung ausgefahren (LxBxH): 105 cm x 170 cm x 250 cm
- Gewicht: 276 kg
- inkl. Stammheber
- inkl. Fahrwerk
- Kombiversion Zapfwellenantreib E-Motor

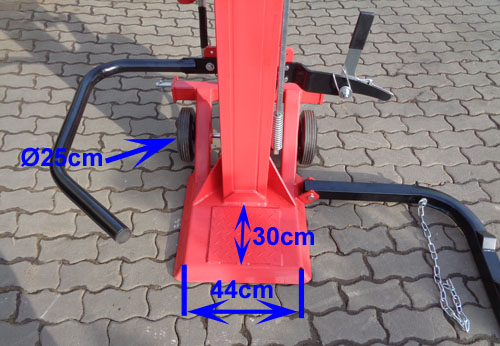

- niedrige Bodenplatte

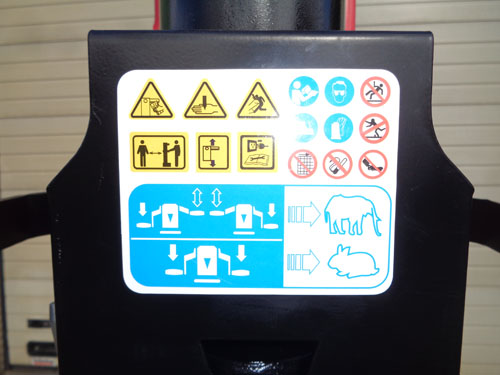

Standard with 2 splitting speeds

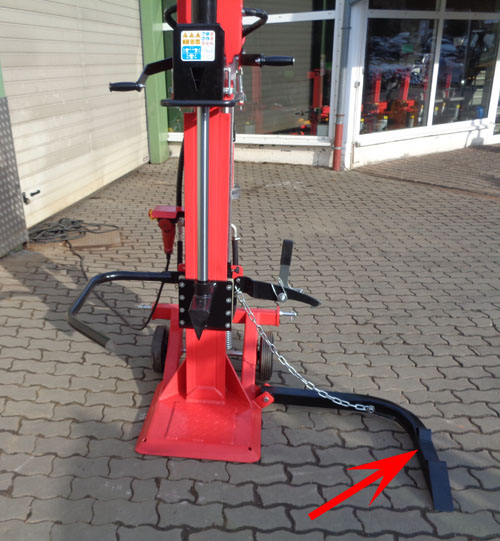

Log lifter

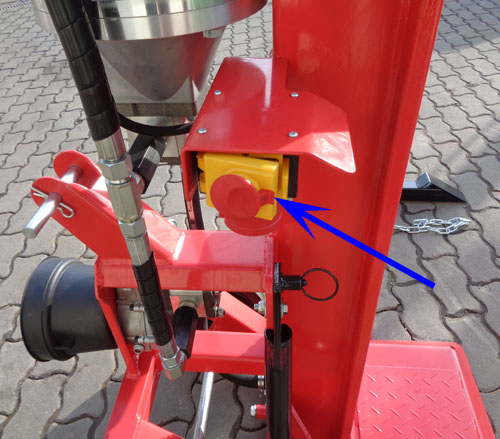

16A switch / plug combination with phase inverter

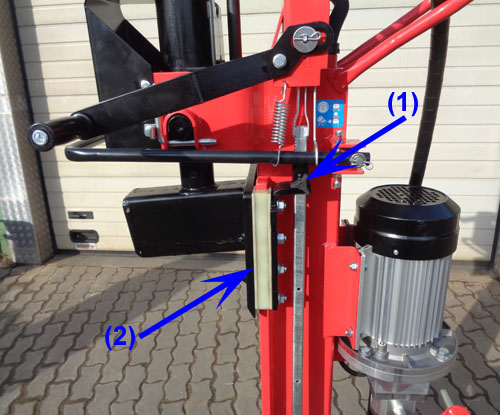

(1) Split screw / gap height
(2) riving knife guide



ATTENTION!
Please shorten the PTO shaft to required length.
