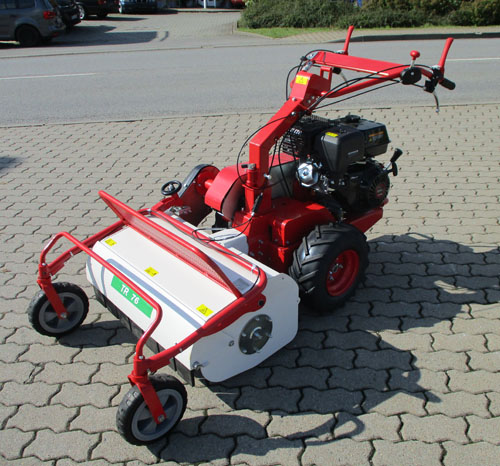

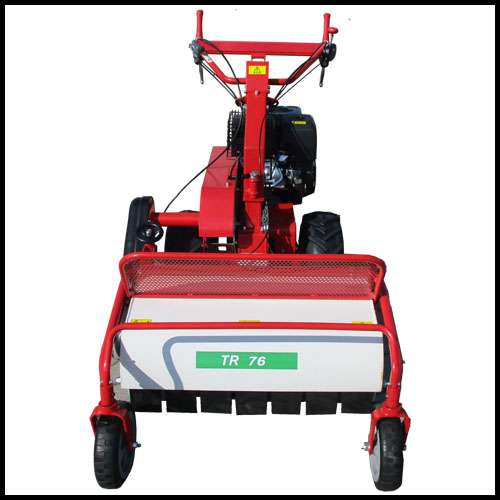

Flail mower TR76
Scrub mower Meadow mower
This machine has an AS tires 13x5.00-6.
The drive of the wheels is permanent, i. E. both wheels are constantly driven.
However, steering handle levers are mounted on the spar.
With these, each wheel can be disengaged individually, so you can easily steer the machine to the right or left.

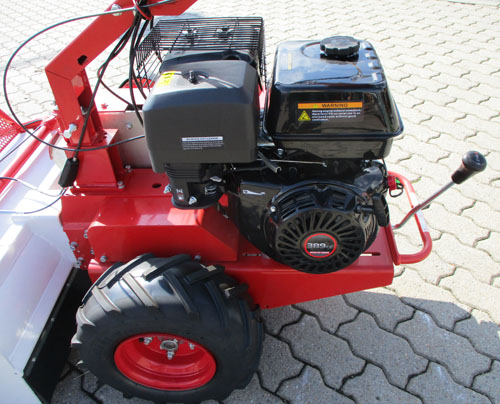

The drive takes place via a Loncin engine 13 hp, 4 stroke, 398 cc.
The flail mower has a blade brake. It is equipped with 40 Y-blades.
These are sturdily built and can be sharpened easily with the angle grinder.
The cutting height can be infinitely adjusted by setting by hand crank.

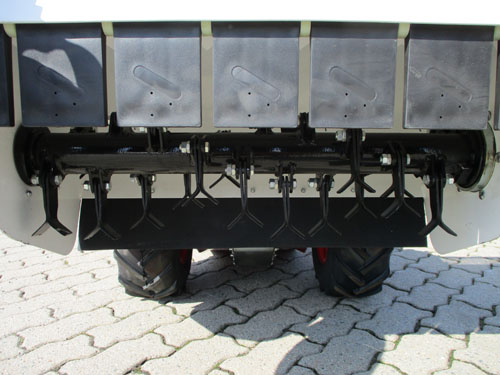

The 40 Y-knives are pendulously attached to the knife shaft.
At a stone or other butt they fold back.
High grass, scrub, matted grass, twigs, etc. are no problem for this mower.
It is important to reduce the driving speed accordingly in extreme terrain.
Thus, the flail blades have time to chop the crop.
The clippings are finely chopped and evenly distributed over the entire working width.
The front wheels are arranged movably.
In straight terrain you can thus turn easily or in the slope area can be locked by means of Bowden the wheels so the machine drifts on the slope does not.
The spar can be pivoted without tools and adjusted in height.
We guarantee a serious transaction - you have full right of return.
Technical specifications
• Engine: 9,6 kW / 13 hp Loncin engine
• Displacement: 398 cc
• Drive: 3-speed gearbox incl. 1 reverse gear
• 3 forward and 1 reverse gear in oil bath gearbox
• Driving speed: I = 1,4 km/h
II = 2,4 km/h
III = 3,6 km/h
Reverse gear = 1,4 km/h
• Wheel and knife switching from the spar

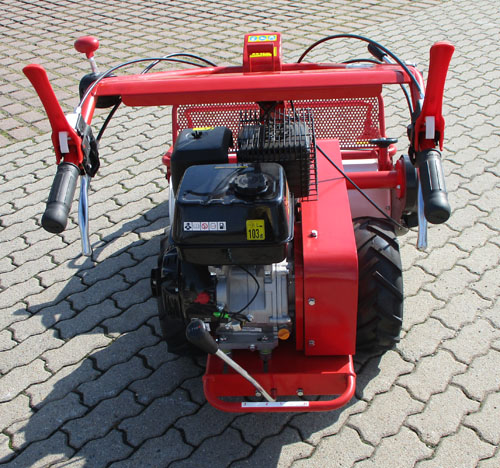

• adjustable handlebar
• Steering brakes can be controlled via hand lever
• Cutting height infinitely adjustable from 20-80mm
• Cutting width: 76 cm
• Tires: 16x6.50-6
• Weight: 178 kg without packaging

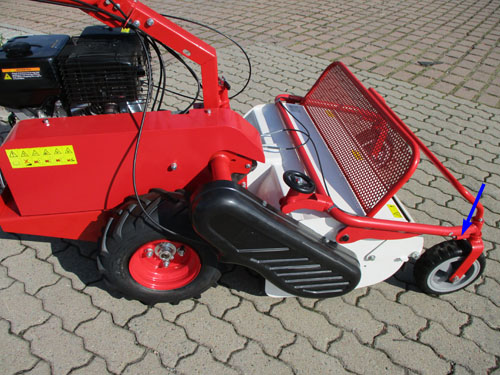

wheel lock

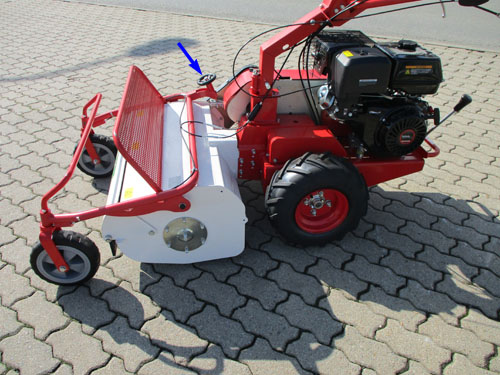

stepless cutting height adjustment
3V / 1R gear
