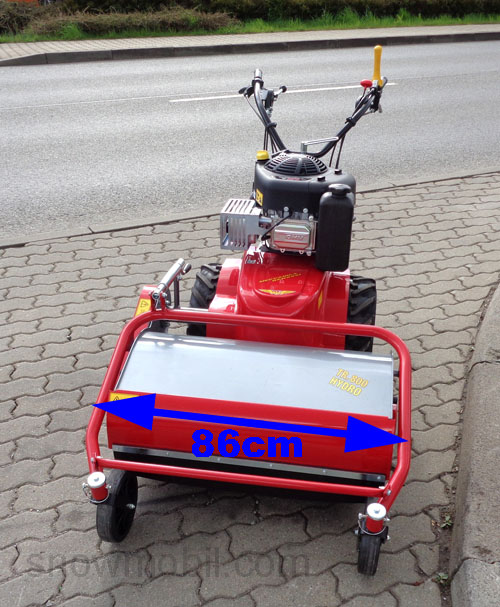

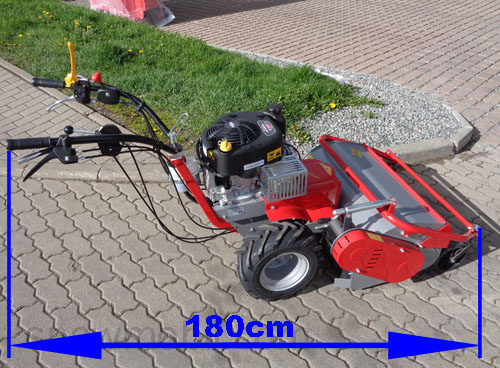

flail mulcher TR800H Hydro mulcher
Meadows mower, Brushcutter
- Made in Italy -

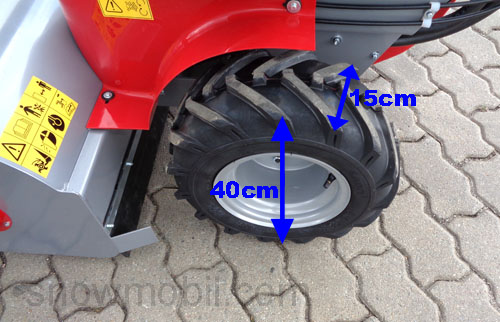

This machine has wide AS tires.
The wheels are driven permanently, i.e. both wheels are constantly driven..

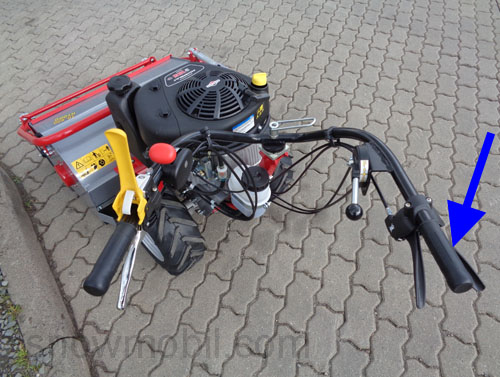

Steering levers are mounted on the handlebar. With these each wheel can be disengaged individually, so you can easily direct the machine to the right or the left.
Pull both steering levers at the same time, the traction drive is disengaged and the machine can be moved manually.

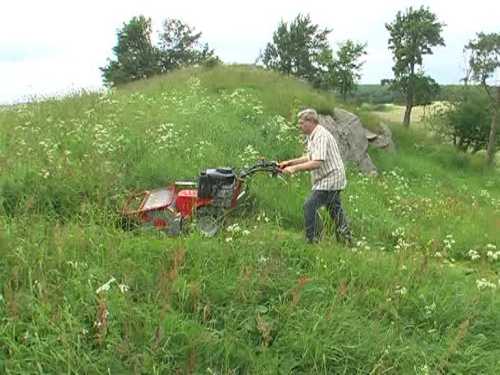

If you mow on slopes and take both hands off the spar, then slows down the machine immediately - ie the machine can never automatically roll down the slope. It brakes immediately!
A set of dual tires with spacer is available with a surcharge of 399.00 EUR!
The drive system is steplessly regulated forward and backward by hand lever, so you can infinitely adjust the running speed depending on grass height.

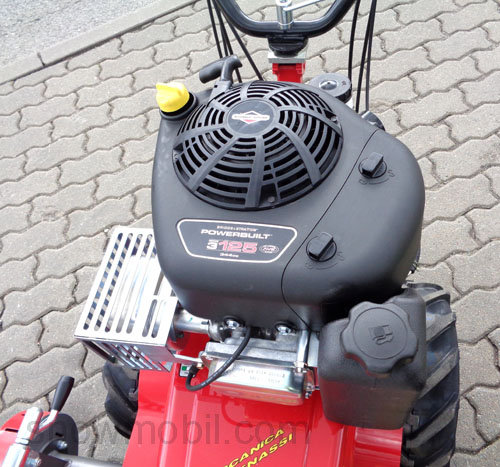

It is driven by a Briggs & Stratton Engine I/C 9,2 kW/12,5 PS.
The flail mulcher has a blade brake. It is equipped with 36 Y-blades. These are solidly built and are easy to sharpen with the angle grinder.
The cutting height is infinitely adjustable via the skids.
A flail mower that is produced since 5 years. Made in Italy - for your information 70% of all garden equipment come from Italy.
Video:
We guarantee a serious carrying out. You have a full right of return.
Specification
• Engine: Briggs & Stratton I / C Engine
• Rated capacity: 6,8 kW/9,1 HP
• Maximum power: 9,2 kW/12,5 HP
• stepless Hydrostat
• Speed: 0 - 6 km / h
• Wheel and blade control from the handlebar
• has a blade brake
• adjustable handle bar
• steering brakes controlled by hand lever
• Cutting height adjustable from 20-80mm
• Cutting width: 75 cm
• Tires: 16-6.50x8
• Weight: 150 kg
The spar can be adjusted in height in several steps.

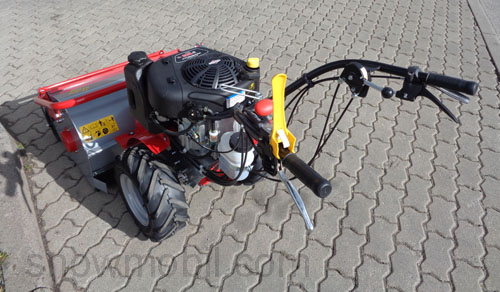

adjustable pivotable handle bar

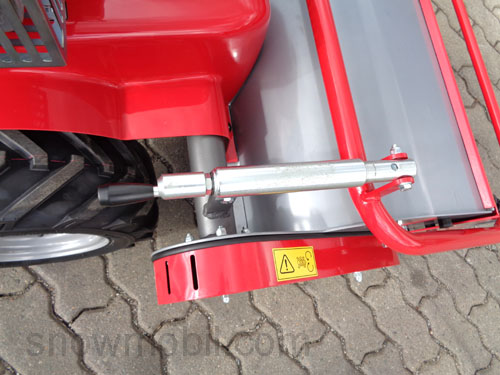

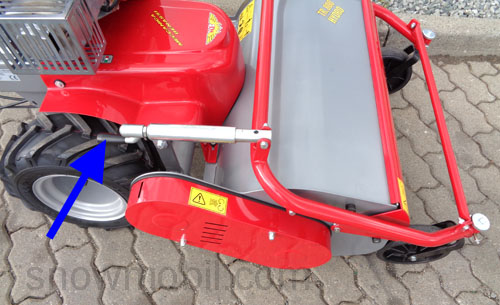

Cutting height adjustable

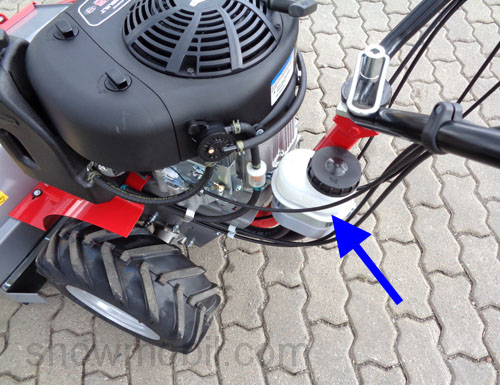

Oil tank for the hydrostat

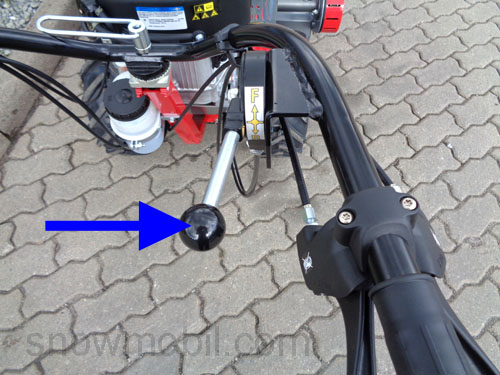

Lever for stepless forward and reverse

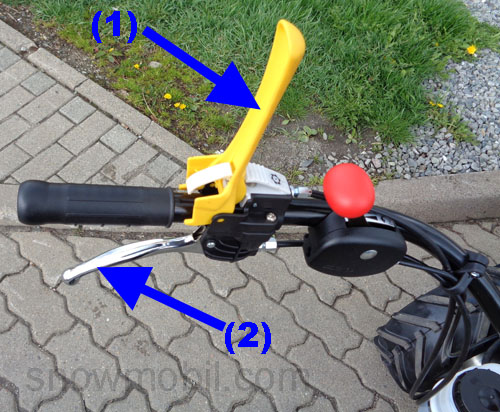

(1) Safety switch
(2) clutch lever

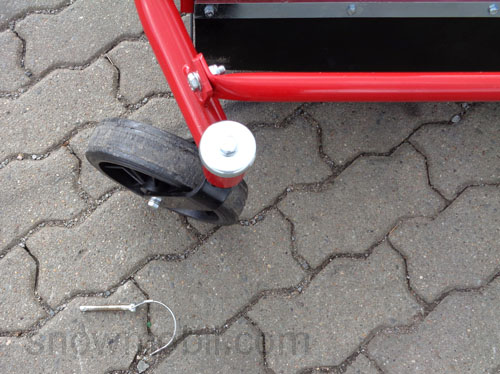

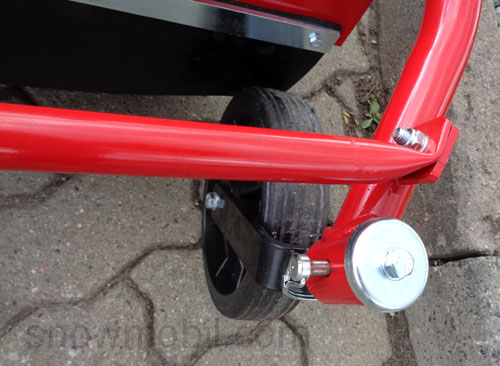

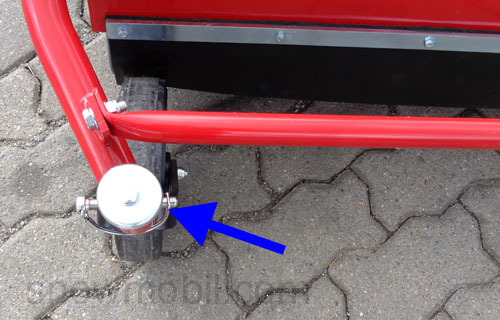

The locking of the front wheels is possible via this split pin.
The lock is suitable for use in the slope, so the machine does not drift on the side.
When working in straight area, the split pin can be pulled and both front wheels are fully movable.
Thus you can swing it the machine without problems left and right.

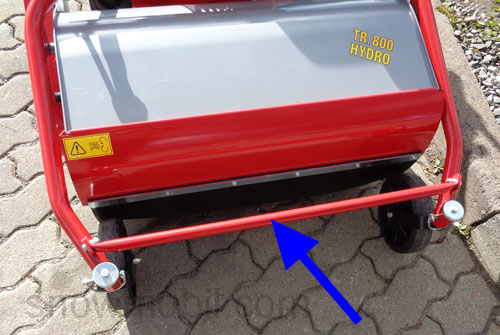

Through this rod the grass or shrubs are already pressed down.

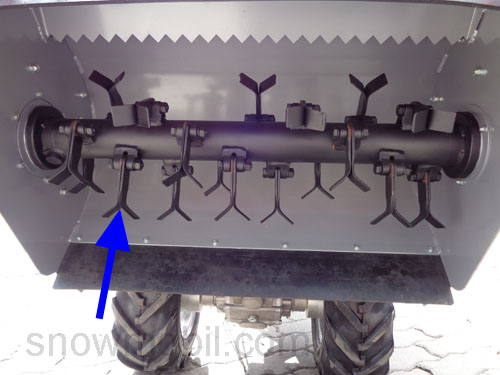

Y-knifes movably suspended
