We sell this unit since 2005 and order from our Italian distributors always full truck loads, therefore our top price at top quality.

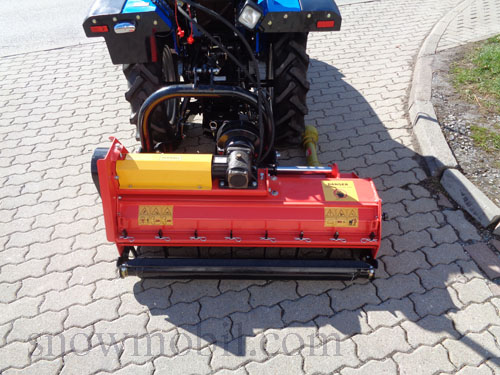

The small tractor should have a rear three-point hitch and KATI, a standard PTO 1 3/8 with 540rpm.
Hammer flails

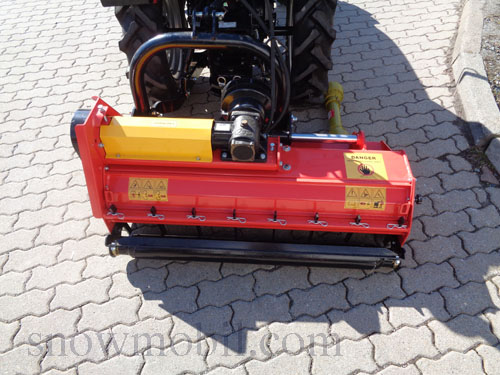

This flail mower is suitable due to its light weight for tractors from 18 PS. At high grass it is safer to go with the 1st gear and a small group, then a small tractor is not overloaded.
The flail shaft is driven via 2 belts, wherein the tensioning device is easy to grasp and adjust. By hammers flails a better and clean cut is observed.
The transmission is strengthened and dimensioned correspondingly large.
Gear oil needs to be replenished.
The device conforms to the applicable safety standards and is CE - certified.
The mulcher is equipped with freewheel gear. The PTO is included.
The flail mower is equipped with hammer-knives, which are staggered around the shaft. The blades have a long service life and can be easily sharpened with an angle grinder.
We guarantee a serious carrying out. You have a full right of return.
Specification
• 125 cm working width
• Drive speed 540 rpm.
• gearbox with freewheel
• 20 hammer-flail blades (345 g/piece)

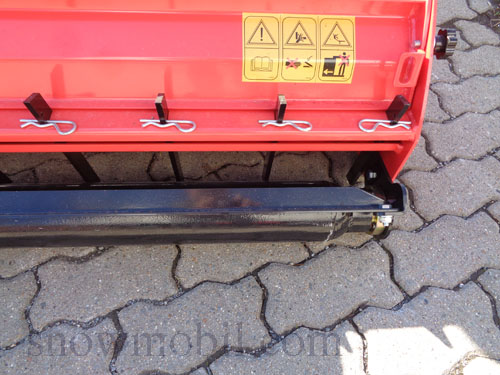

• Stone guard, front and rear
• Housing made of 6 mm steel plate
• for tractors from 18PS
• bracket and parking support as standard
• Weight approx 225 kg

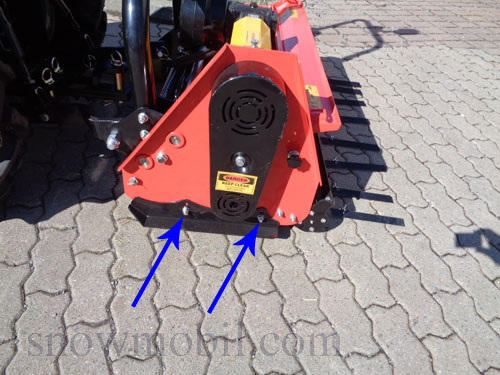

Sanding pad adjustable

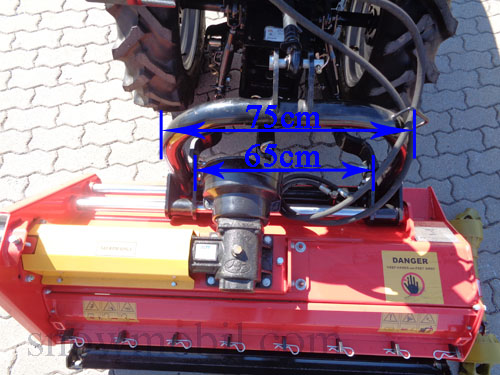

The connection bolts can be turned (KAT1 or KAT2).
Hydraulic side shift - 27cm to each side

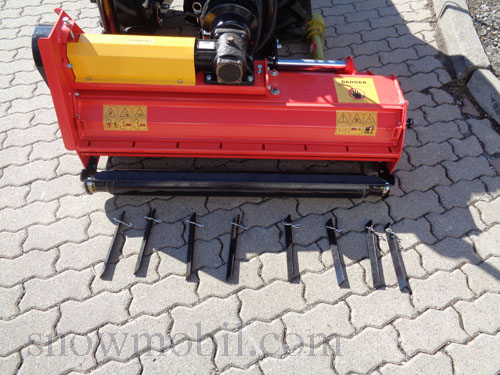

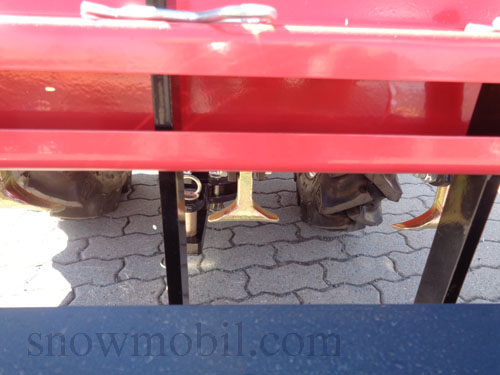

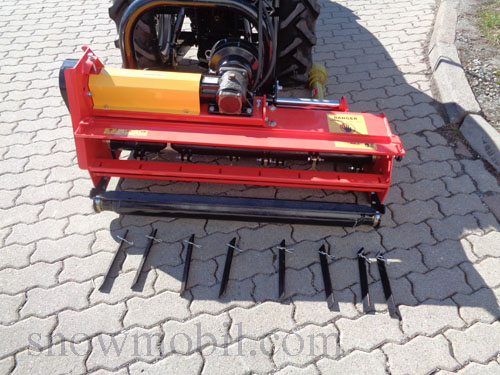

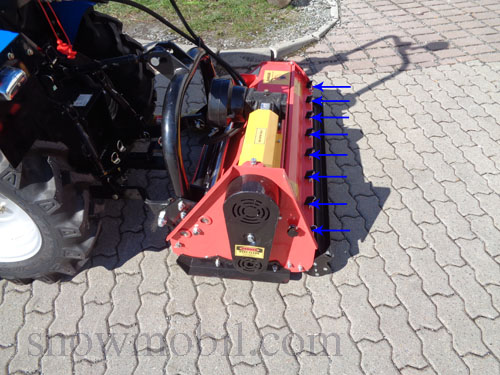

The tearing knives are three times height adjustable and are inserted from above into the housing.
Easy assembly and disassembly.

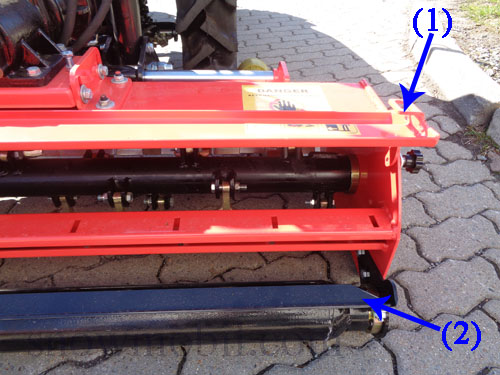

(1) Maintenance cover open
(2) scrapers
The folded-up service flap provides access to the flail shaft, making it even easier to change the mallets and perform maintenance.
We would like to point out that according to the German accident prevention regulations, the maintenance flap must be closed during mowing in order to prevent stones from escaping, etc.
With manual including parts list!
Directly available in our warehouse! All spare parts are also in stock!
ATTENTION!
Please shorten the PTO shaft to required length.
