equipment:

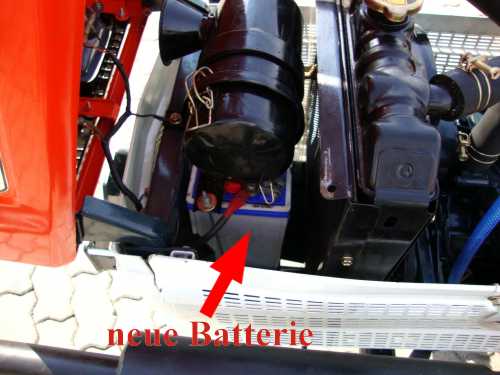

• new battery

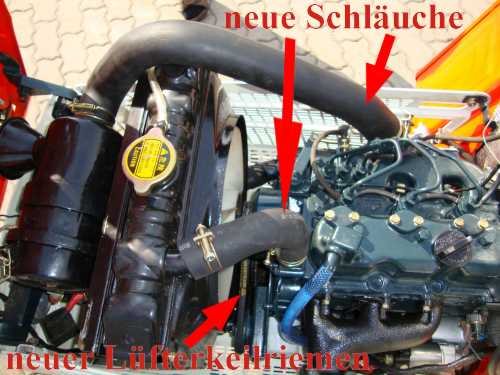

• new fan belt
• new radiator hoses
• new seat

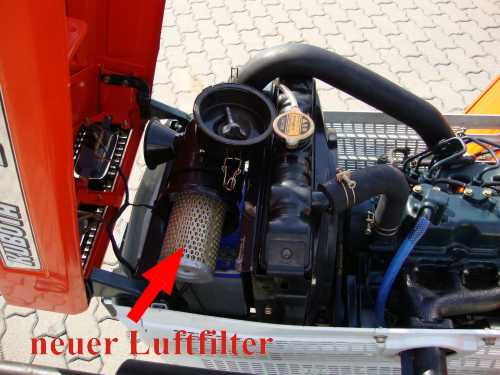

• new air filter

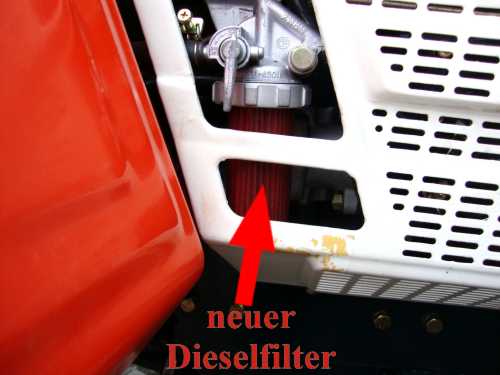

• new diesel filter
• new oil filter

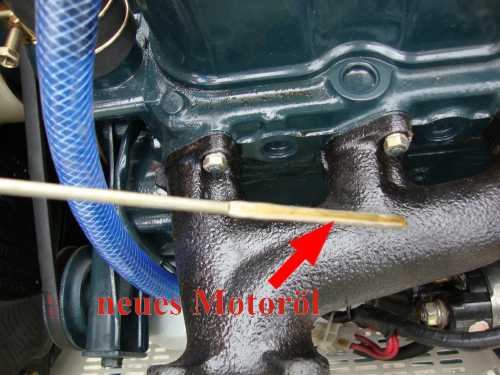

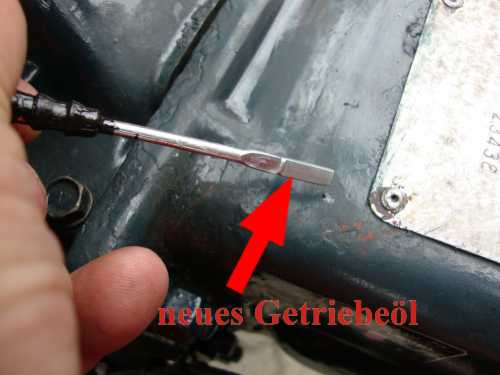

• new oil

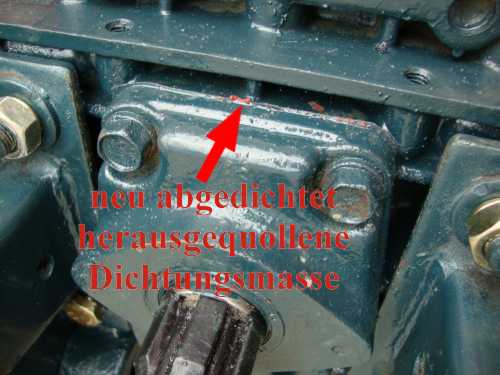

• oil seals are replaced if necessary
• all filters are new
• new or good used tires
The following work was made:

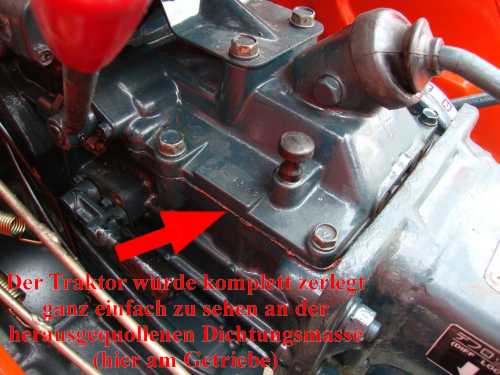

• the tractor was completely taken apart

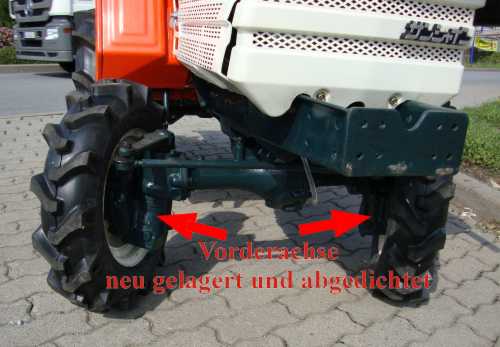

• Engine / transmission have been checked and repaired
• any defective part was replaced

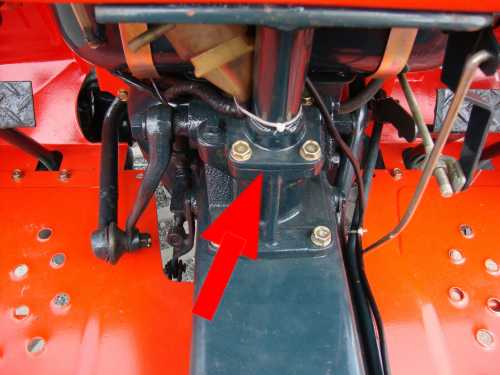

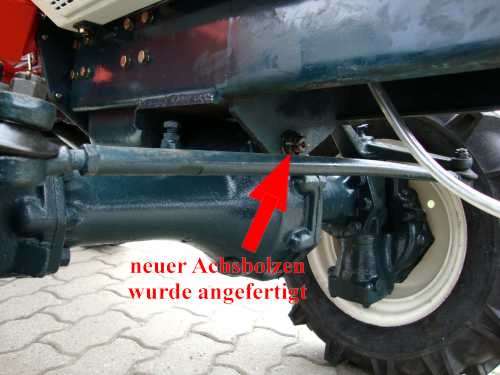

• steering gear overhauled
• radiator checked
We can prove these works.
Slight paint damage or abrasion might have occurred owing to ocean shipment.
Warranty - 1 year. Except on common wear parts, age and running time related wear is not a defect.
We guarantee a serious carrying out. You have a full right of return.
Specification
• Diesel Engine: Kubota D850 L - 3 cylinders with 855 ccm
• Power: 19 PS/12,9 kW at 2600 rpm.
• Power PTO: 16 PS

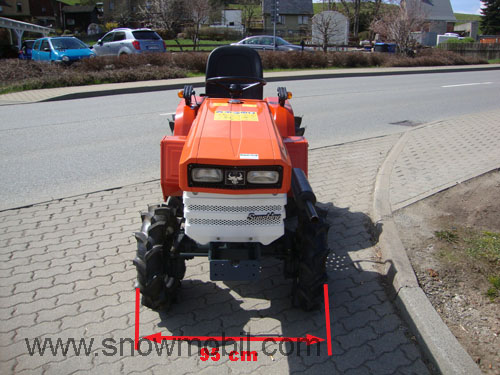

• clear width front wheel: 95 cm
• clear width rear wheel: 110 cm

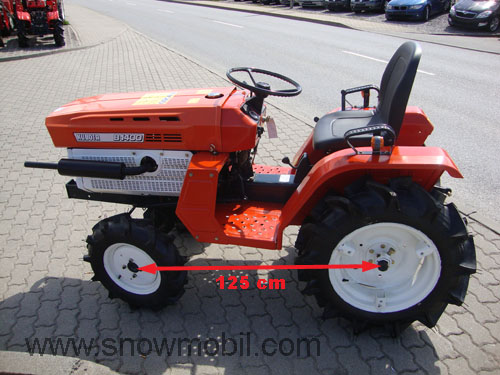

• Wheelbase center to center: 125 cm
• Ground clearance: 24 cm
• Transmission: mechanical circuit group
• Number of gears: 6 forward and 2 reverse
• max. Speed: 13 km/h
• rotation of the PTO: clockwise
• PTO Speed: 540 - 860 - 1000 U/min.
• Diameter of the PTO: 1" 3/8 - 6 G-parted
• agrarian tyres front: 5.00-12
• agrarian tyres rear: 8 - 16

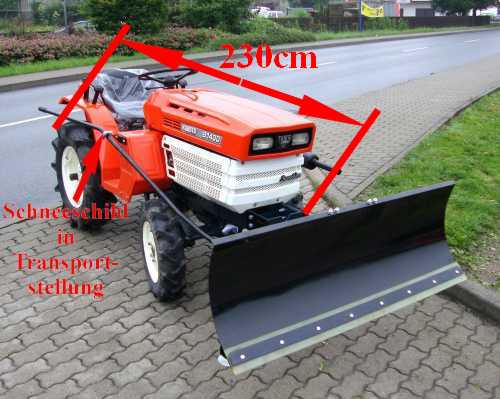

• Dimensions (L x W x H): 230 x 120 x 124 cm
• Weight: 500 kg
clear width front wheel: 95 cm

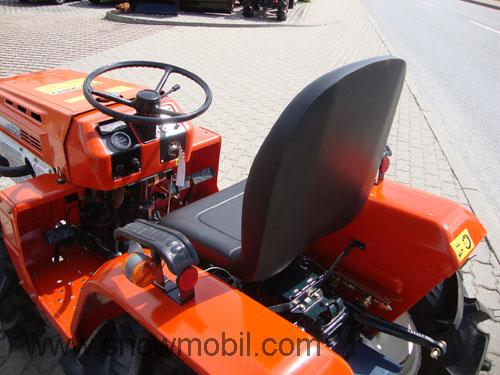

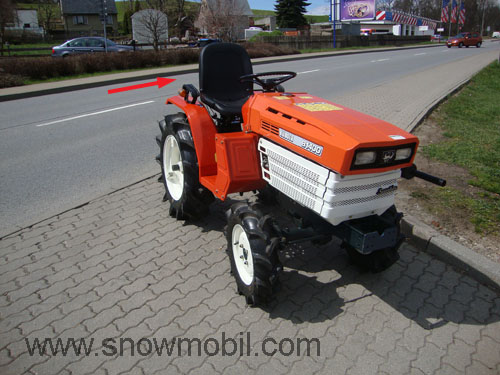

new EU-seat

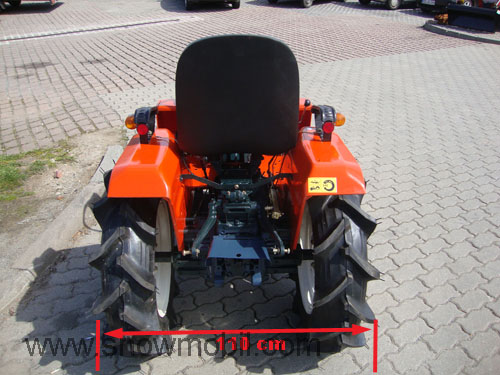

clear width rear wheel: 110 cm

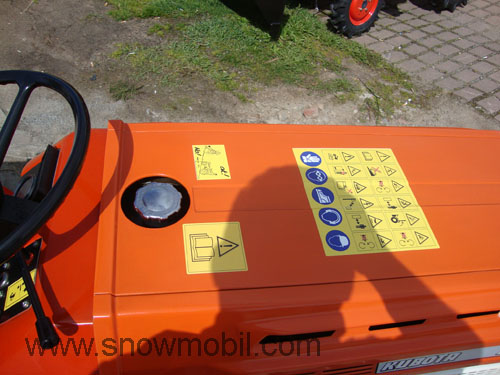

new safety stickers

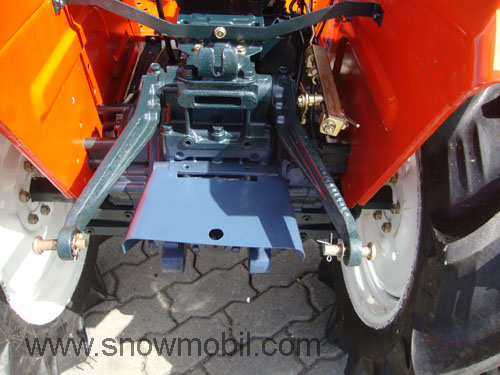

with mounted PTO guard

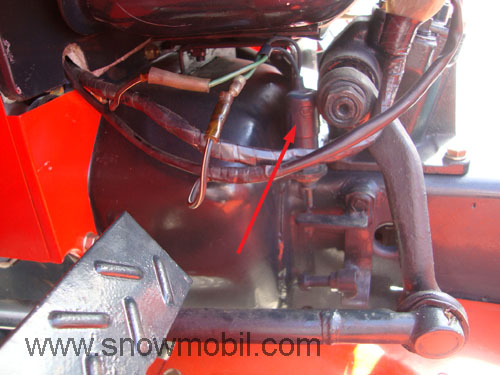

with mounted and functional safety switch for clutch
new EU-seat and new direction indicators

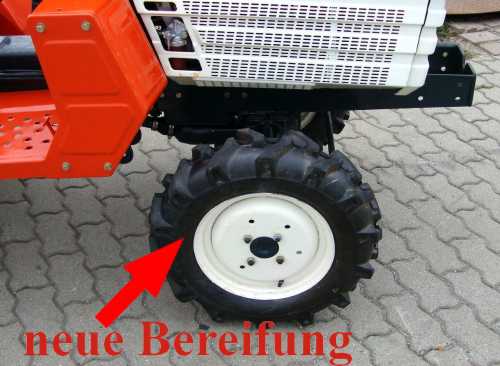

new tires
new hoses
new battery
all bolts are new electroplated
snow plow
• spring flap snow plow
• working width 140 cm --- alternatively 118 cm (minus 30,00 Euro)
• 5X pivotable by means of spring-loaded plug bolts
• Infinitely adjustable sliding skids
• mounting frame, lifting rod and strake made of Vulkolan is included

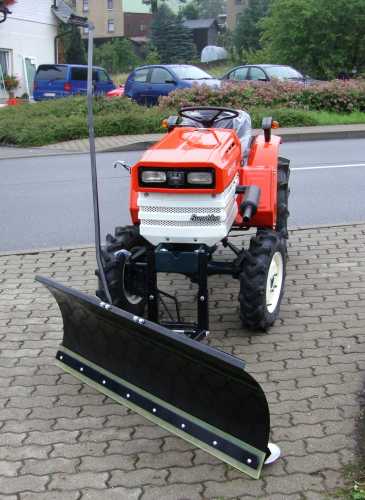

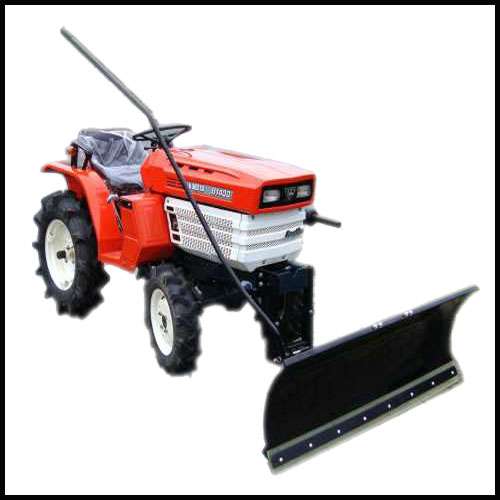

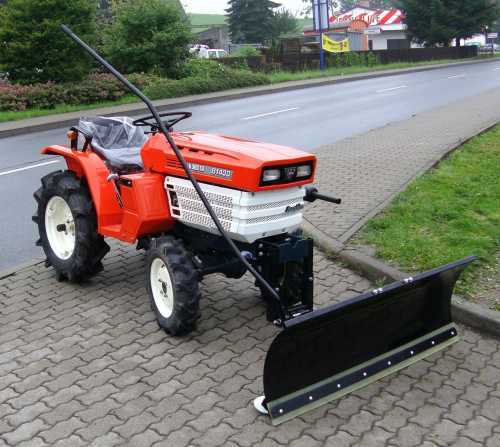

The snow plow has a working width of 140 cm and a height of 50 cm.
Alternatively working width of 118 cm minus 30,00 Euro.
The lifting takes place by means of this long lifting rod, which can be hooked into the side-mounted hook.

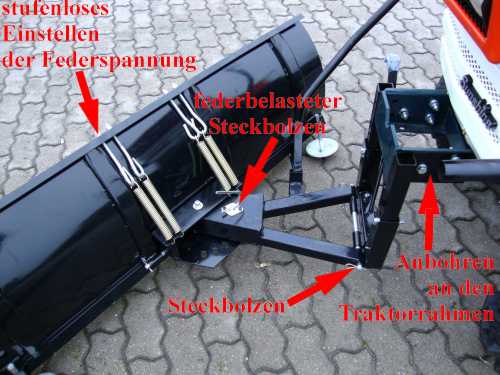

The snow plow can be pivoted 5X by pulling the spring-loaded socket pin. It is designed as a safety flaps spring snow plow. The 4 springs can be stretched infinitely via these threaded bolts depending on the load.
Using this socket pin the snow plow can be removed or mounted quickly and without tools.

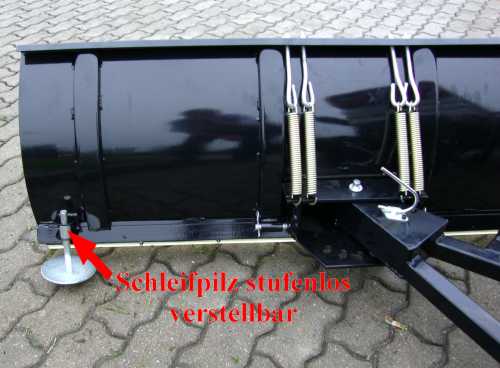

By means of the infinitely variable skid, the height of snow shield can be adjusted.
Supplied with a strong vulkolan strip as a rubbing strake, which is 10 cm high and 15 mm wide.

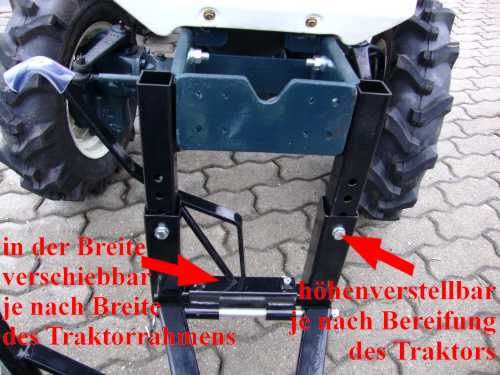

The mounting frame can be flexibly adjusted according to the width and height of the existing tractor. Thus, with little effort, the framework can be mounted on any tractor.
tractor seat
250€
Terra tire 76x37 für 1899 €
