equipment:
• new battery

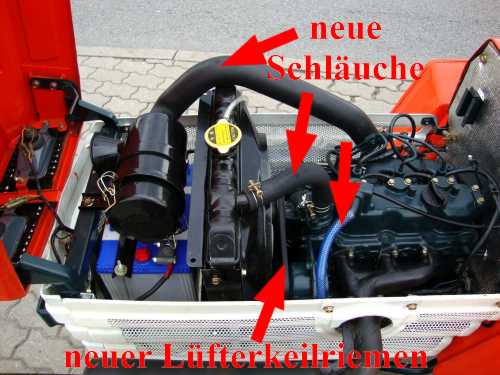

• new fan belt
• new radiator hoses
• new seat

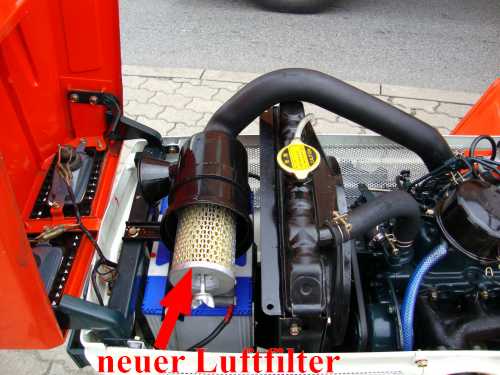

• new air filter

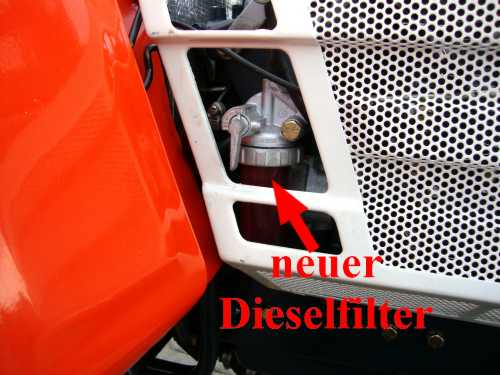

• new diesel filter
• new oil filter

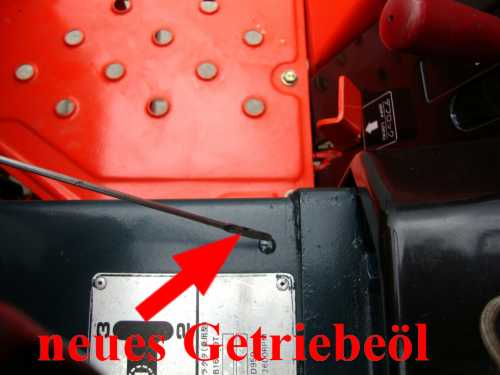

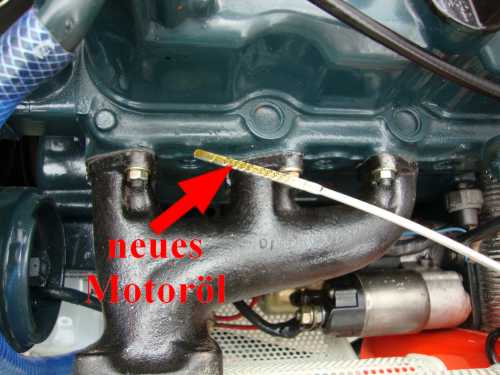

• new oil

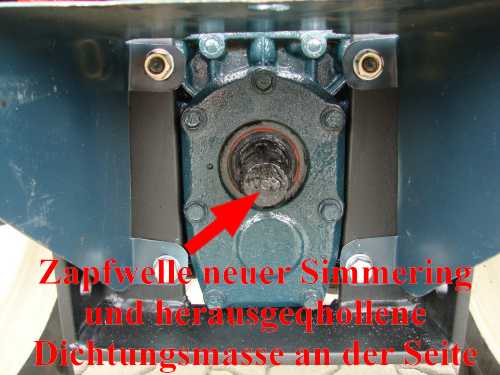

• oil seals are replaced if necessary
• all filters are new
• new or good used tires
The following work was made:

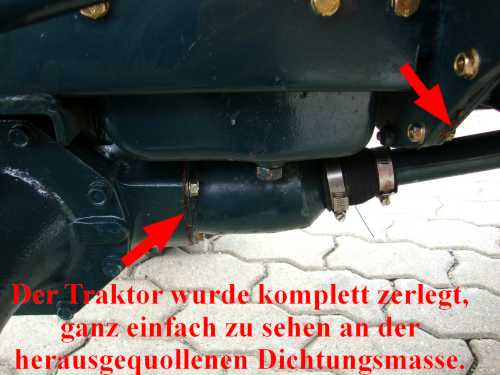

• the tractor was completely taken apart
• Engine / transmission have been checked and repaired
• any defective part was replaced

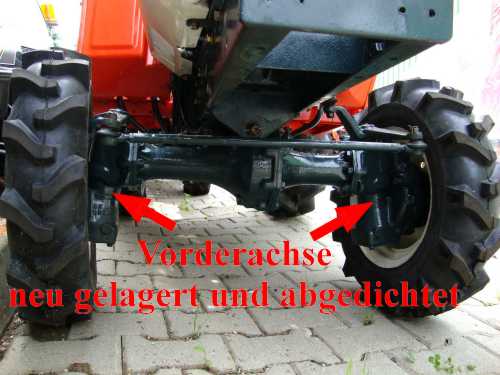

• steering gear overhauled
• radiator checked
We can prove these works.
Warranty - 1 year. Except on common wear parts, age and running time related wear is not a defect.
Slight paint damage or abrasion might have occurred owing to ocean shipment.
We guarantee a serious carrying out. You have a full right of return.
Specification
• Diesel Engine: Kubota D950 - 3 cylinders with 927 ccm
• Power: 21,5 PS/15,81 kW at 3000 rpm.

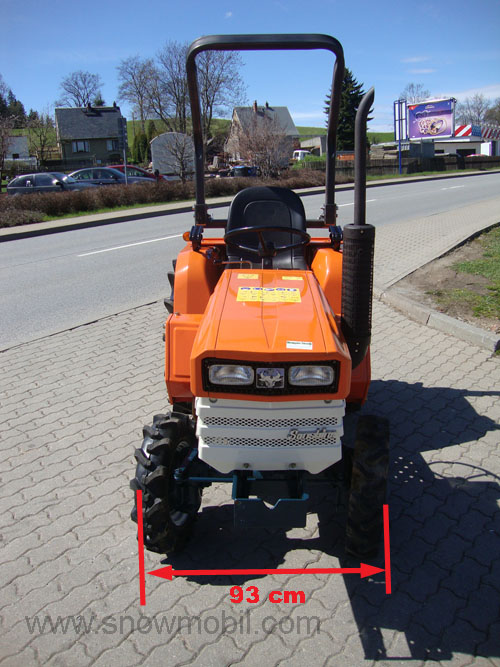

• clear width front wheel: 93 cm
• clear width rear wheel: 109 cm

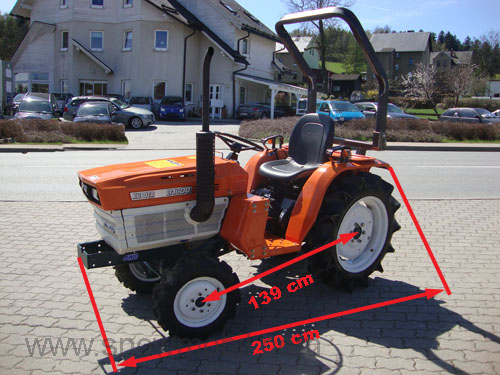

• Wheelbase center to center: 139 cm
• Ground clearance: 24 cm
• Transmission: mechanical circuit group
• Number of gears: 12 forward and 4 reverse
• max. Speed: 13 km/h
• rotation of the PTO: clockwise
• PTO Speed: 540 - 860 - 1000 rpm.
• Diameter of the PTO: 1'' 3/8 - 6 G-parted
• agrarian tyres front: 5.00-12
• agrarian tyres rear: 8.3 - 22
• Dimensions (L x W x H): 330 x 109 x 215 cm
• Weight: 665 kg
Think about the safety of a standardized EU rollover bar
According to our current state of knowledge - all our competitors sell tractors without EU approved and accepted roll bars - this is a violation of law.
If these dealers offer rollover bars, it's not a design that conforms to the standard and is not allowed.
In the EU, tractors from 600 kg net weight without equipment must have a tested and by an european test institute accepted roll bar.
We have tested rollover bars with much financial effort.
The manufacture of of a roll bar will cost at least 650.00 euros, so we have to factor with this additional cost.
You're taking a security risk when you buy a tractor from 600 kg net weight without a rollover bar!

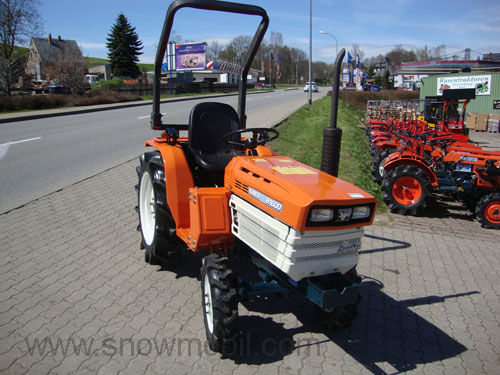

Delivered with hinged unpainted roll bar.
Additional option:
- Painted roll bar in black for 250.00 euros (this must be communicated to us early enough when placing the order)
Our tractors are equipped with an approved EU rollover bar after the EU: 86 / 298/EWG standard (check the pictures).
Here is one of several test reports and inspection reports!!!

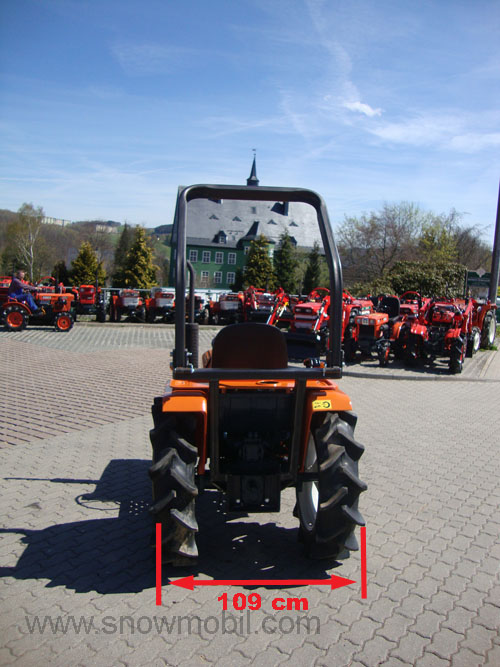

clear width
all bolts are new electroplated - new safety stickers

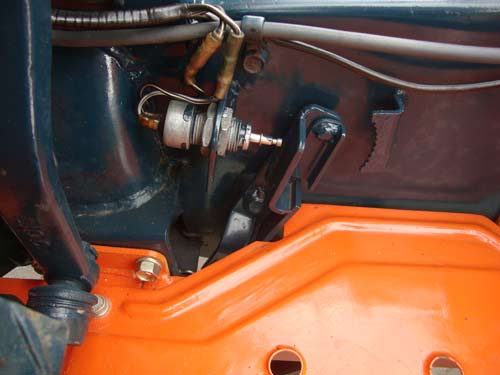

with mounted and functional safety switch for clutch

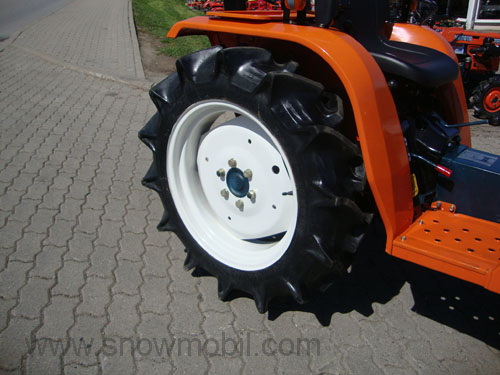

new or good used tires

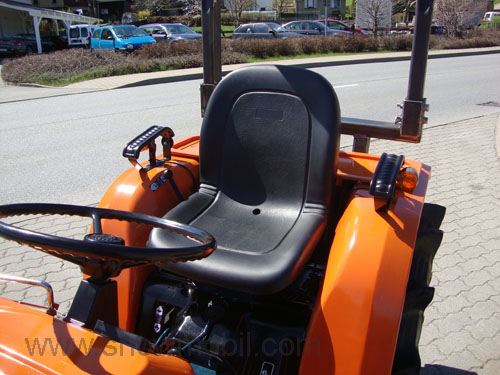

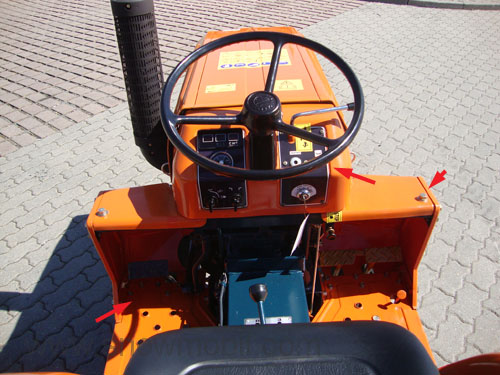

new EU-seat and new direction indicators

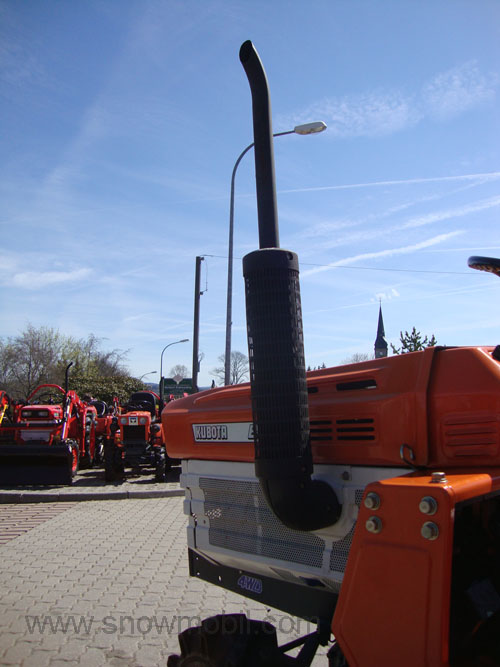

new exhaust
Video:
tractor seat
250€
Terra tires 84x27/58x22 for 1720 €
Through the turf tires you have a high contact surface and thus protect the lawn.
Even in wet terrain and at road trips these tires are ideal.
We drill the respective hole pattern of your tractor type in the wheel rims. For that we need the exact measurements and images via email
and / or a template out of cardboard with the original hole pattern of your rims.
You can build the set of lawn-tires on your Iseki / Yanmar / Hako / Kubota / JohnDeere / Branson etc.
This is a complete set of front wheels and rear wheels.
