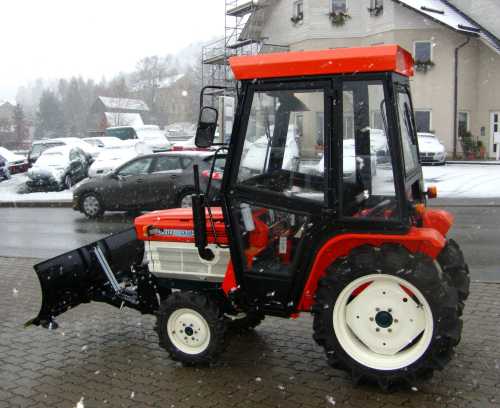

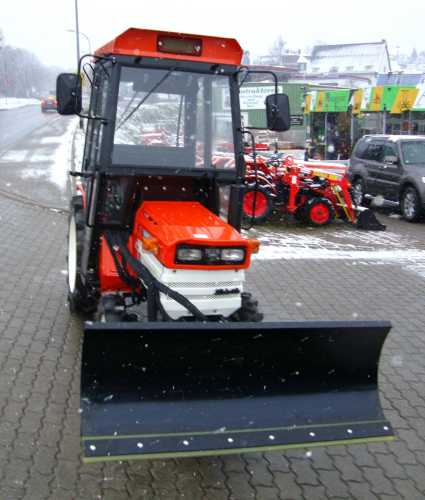

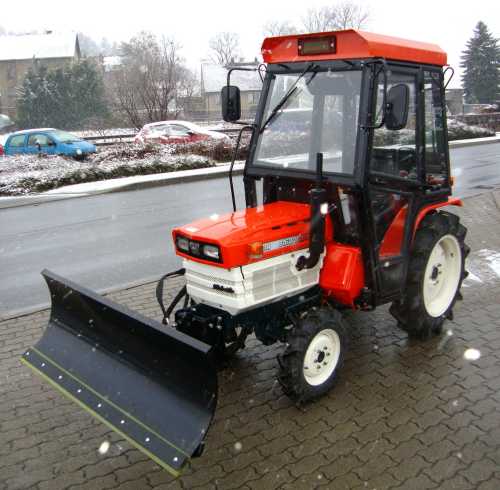

Compact tractor Kubota B1600 with 4WD, used, completely overhauled and repainted
with hydraulic snow plow 140 cm and heatable cab
equipment:
• new battery
• new fan belt
• new radiator hoses
• new seat
• new air filter
• new diesel filter
• new oil filter
• new oil
• oil seals are replaced if necessary
• all filters are new
• new or good used tires
The following work was made:
• the tractor was completely taken apart
• Engine / transmission have been checked and repaired
• any defective part was replaced
• steering gear overhauled
• radiator checked
We can prove these works.
Warranty - 1 year. Except on common wear parts, age and running time related wear is not a defect.
Slight paint damage or abrasion might have occurred owing to ocean shipment.
We guarantee a serious carrying out. You have a full right of return.
Specification
• Diesel Engine: Kubota D950 - 3 cylinders with 927 ccm ccm
• Power: 21,5 PS/15,81 kW at 3000 rpm.
• clear width front wheel: 93 cm
• clear width rear wheel: 109 mm
• Wheelbase center to center: 139 cm
• Ground clearance: 24 cm
• Transmission: mechanical circuit group
• Number of gears: 12 forward and 4 reverse
• max. Speed: 13 km/h
• rotation of the PTO: clockwise
• PTO Speed: 540 - 800 - 1000 rpm.
• Diameter of the PTO: 1'' 3/8 - 6 G-parted
• agrarian tyres front: 5.00-12
• agrarian tyres rear: 8.3 - 22
• Dimensions (L x W x H): 280 x 120 x 220 cm
• total weight: 800 kg
• hydraulic snow plow 120 cm
including steel bar, lifting cylinder, pivoting cylinder and mounting frame
• heatable cab incl mirror set and foldable rear glass
Total height Kubota B1600 with cab: 2.20 m
The cab is fully fitted including mirror set, foldable rear glass and front and rear wipers.
Rotating beacon and work lights are available at an additional cost.
The cabin fit the following types: L1802 / L2002 / L2202 / L2402 / B1600 / B1702 and B1902.
Video:

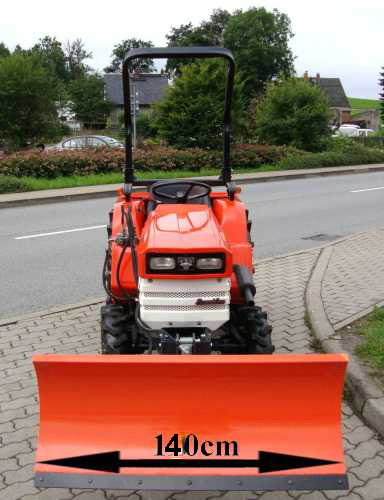

The snow plow has a working width of 140 cm and a height of 50cm.

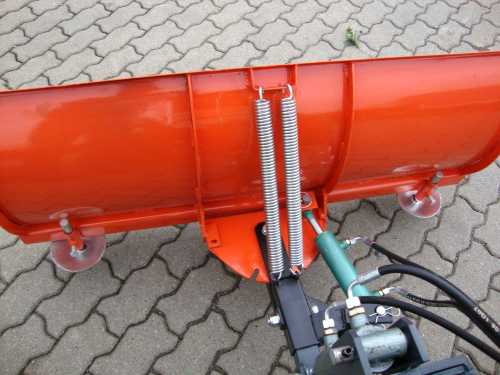

The snow plow is designed as a spring flaps snow shield, that is if you drive into an obstacle, the shield fold away forward.
It can be pivoted hydraulically and lifted hydraulically. The pivoting cylinder, the control valve and hoses are included.
Infinitely adjustable sliding skids
Stronger support frame to prevent warping the snow plow.
The valve has a floating position - so you can effectively plough.
Here, the control valve is screwed onto the fender.
Bayonet locks for quick removal and installation of the snow plow.
Plug-in bolts for quick removal and installation of the snow shield.
The intermediate plates act as spacers and can be flexed out.
tractor seat
250€
Terra tires 84x27/58x22 for 2150 €
Through the turf tires you have a high contact surface and thus protect the lawn.
Even in wet terrain and at road trips these tires are ideal.
We drill the respective hole pattern of your tractor type in the wheel rims. For that we need the exact measurements and images via email
and / or a template out of cardboard with the original hole pattern of your rims.
You can build the set of lawn-tires on your Iseki / Yanmar / Hako / Kubota / JohnDeere / Branson etc.
This is a complete set of front wheels and rear wheels.
