equipment:
• new battery
• new fan belt
• new radiator hoses
• new seat
• new air filter
• new diesel filter
• new oil filter
• new oil
• oil seals are replaced if necessary
• all filters are new
• new or good used tires
The following work was made:
• the tractor was completely taken apart
• Engine / transmission have been checked and repaired
• any defective part was replaced
• steering gear overhauled
• radiator checked
• safety switch for clutch
We can prove these works.
Slight paint damage or abrasion might have occurred owing to ocean shipment.
Warranty - 1 year. Except on common wear parts, age and running time related wear is not a defect.
We guarantee a serious carrying out. You have a full right of return.
Specification
• Diesel Engine: Kubota D750 L - 3 cylinders with 762 ccm
• Power: 16 PS/11,5 kW at 3000 rpm.
• PTO power: 13 PS
• clear width front: 93 cm
• clear width rear: 107 cm
• Wheelbase center-center: 121 cm
• ground clearance: 24 cm
• Transmission: mechanical circuit group
• Number of gears: 6 forward and 2 reverse
• max. Speed: 13 km/h
• rotation of the PTO: clockwise
• PTO Speed: 540 - 860 - 1000 rpm.
• Diameter of the PTO: 1" 3/8 - 6 G-parted
• agrarian tyres front: 5.00-12
• agrarian tyres rear: 8 - 16
• Dimensions (L x W x H): 190 x 107 x 115 cm
• Weight: 470 kg

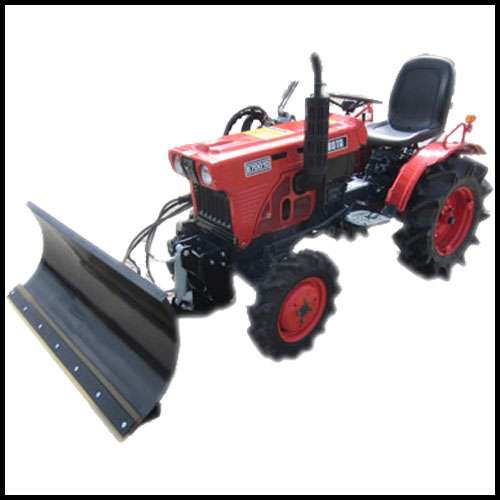

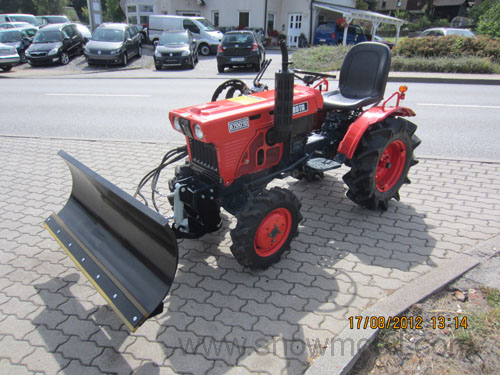

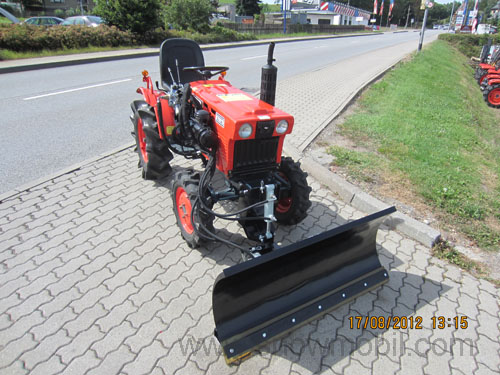

• hydraulic snow plow 120 cm
• including steel bar, lifting cylinder pivoting cylinder and mounting frame
videos:
The snow plow has a working width of 120 cm and a height of 50 cm.
The snow plow can also be supplied with a working width of 140 cm for a charge of EUR 200.

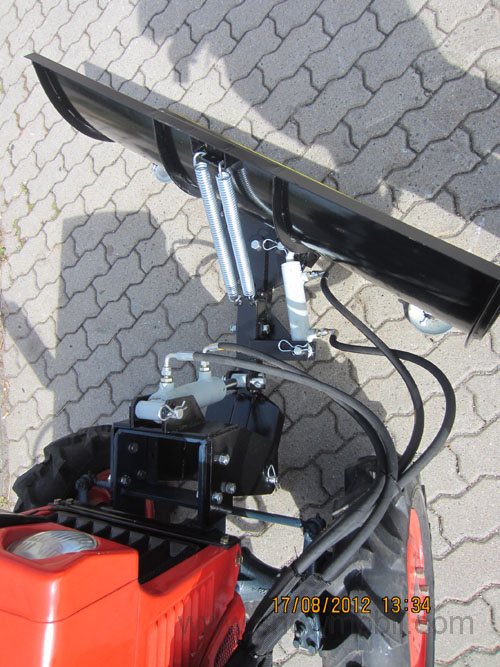

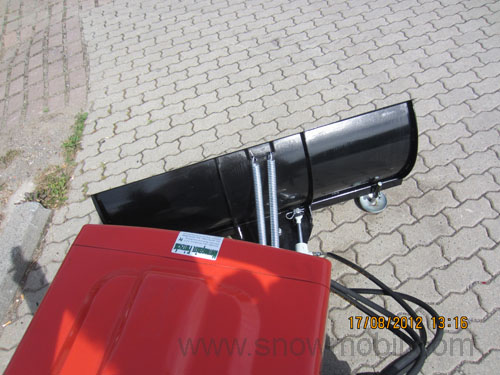

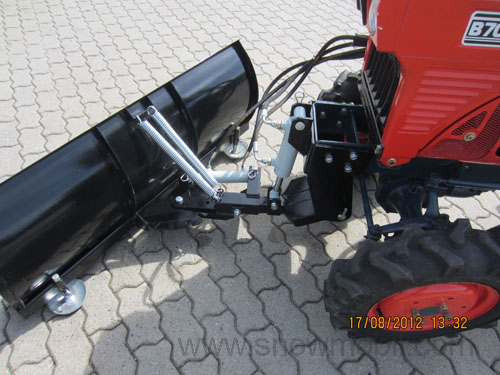

The snow plow is designed as a spring flap snow shield, that is if you drive into an obstacle, the shield folds away forward.
The snow plow can be pivoted hydraulically and lifted hydraulically. The pivoting cylinder, the control valve and hoses are included.

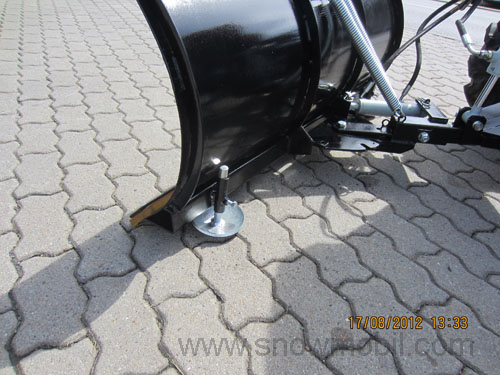

Infinitely adjustable sliding skid.
Stronger support frame to prevent warping the snow plow.

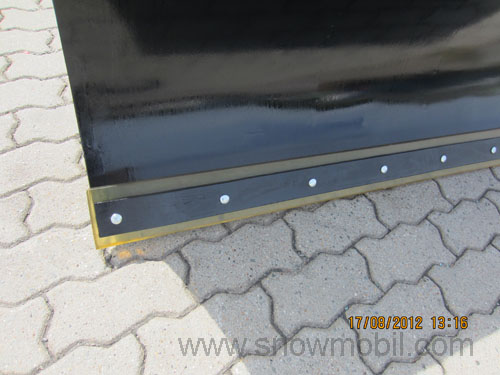

As standard, one vulkolan strip with a thickness of as much as 15 mm is mounted.
The valve has a floating position - so you can effectively plough.
Floating position means that the snow plow with its own weight slight without pressure on the ground, so it adapts every bump.
Bayonet locks for quick removal and installation of the snow plow.

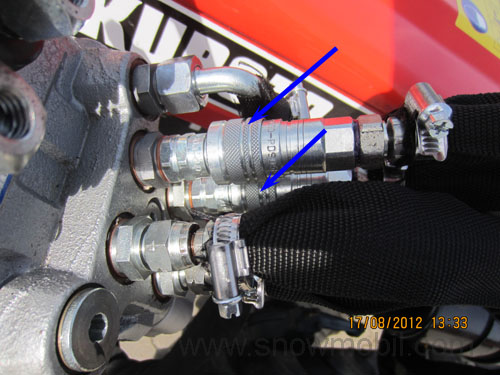

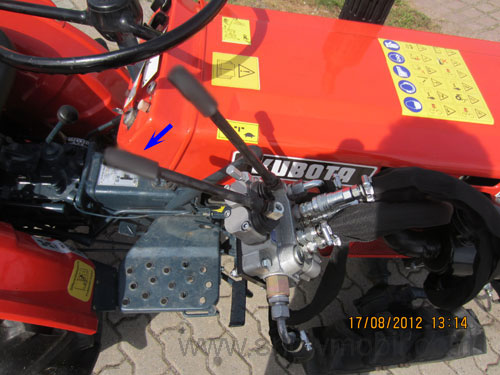

Here you see the connection to the pressure line. The pressure line is cut open and an angle piece is connected. The pressure valve is equipped with a pressure transmission.

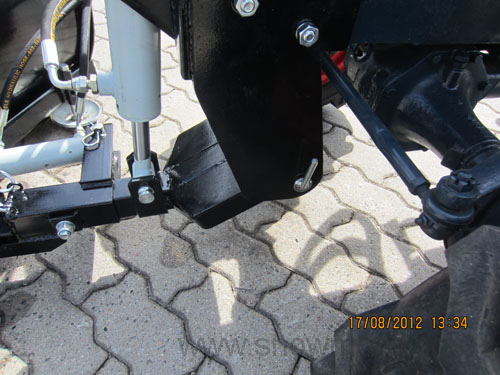

Plug-in bolts for quick removal and installation of the snow shield.
The intermediate plates act as spacers and can be flexed out.

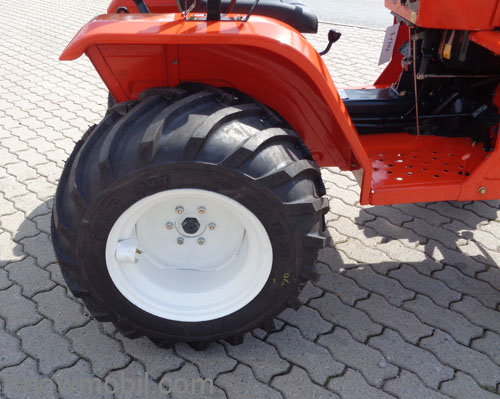

Terra tire 76x37 für 1899 €
