Compact tractor Kubota L1802 4WD with front loader and cab, overhauled

16.850,00 EUR 19 % VAT incl.

Shipping inside Germany: 500,00 EUR * * Shipping information

Shipping time: immediately available from stock, since we have several stores in the vicinity, we ask for tel. Pre-registration for pick-up

Item is temporarily not available!

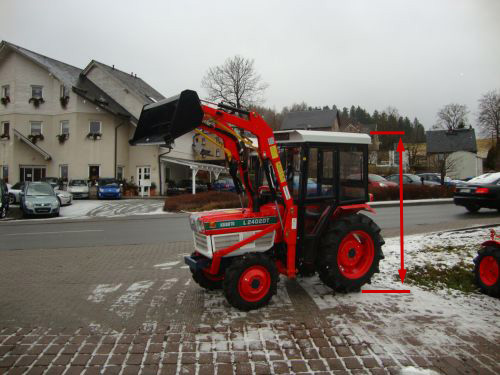

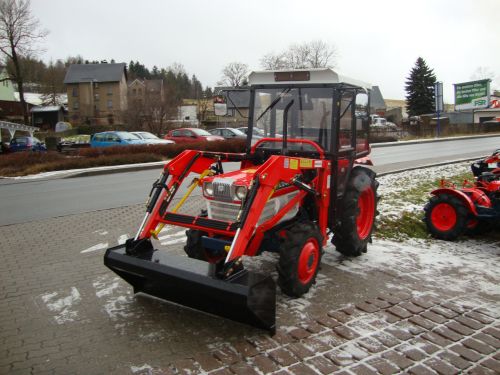

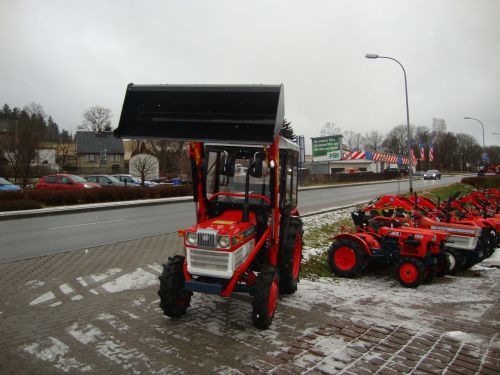

All picture are example picture L2402 with frontl loader and cab

equipment:

• new battery
• new fan belt
• new radiator hoses
• new seat
• new air filter
• new diesel filter
• new oil filter
• new oil
• oil seals are replaced if necessary
• all filters are new
• new or good used tires
• Supplied with foldable roll bar.

The following work was made:

We can prove these works.

Our tractors are equipped according to the current EU safety standards!

Slight paint damage or abrasion might have occurred owing to ocean shipment.

Additional option

The tractor is also available with a snow blade for an extra charge!

The front loaders correspond with the EU standard 12525 and have been tested!

Warranty - 1 year. Except on common wear parts, age and running time related wear is not a defect.

Additional option:

A floating position can be retrofitted for a surcharge.

We guarantee a serious carrying out. You have a full right of return.

Specification

• Diesel Engine: Kubota D1102 - 3 cylinders with 1115 ccm
• Power: 25,0 PS/18,4 kW at 2800 rpm.
• Bore and stroke: 76 x 82
• clear width front (outside / outside): 1100 mm
• clear width rear (outside / outside): 1200 mm
• Wheelbase center-center: 1500 mm
• ground clearance: 270 mm
• Transmission: mechanical circuit group
• Number of gears: 6 forward and 2 reverse
• Speed: 0,22 - 14,7 km/h
• rotation of the PTO: clockwise
• PTO Speed: 540 - 800 - 1000 - 1250 U/min.
• Diameter of the PTO: 1" 3/8 - 6 G-parted
• agrarian tyres front: 6.00-14
• agrarian tyres rear: 8.3-24
• Dimensions with cab (L x W x H): 330 x 150 x 180 cm
• total weight: 1500 kg
• new front loader with bucket width 150 cm

Included with the cab:

mirror set
Door stop
front and rear wipers
foldable rear glass
doors lockable
wiper fluid reservoir
hot water heating
toughened glass
interior light

working width 150 cm - clear width front 120cm

Clear height 220 cm

Wiper and mirror set included

wiper fluid reservoir

heating

foldable rear glass,
roof with rain gutter

locking for door

Additional charge:

foldable front glass
beacon
Front and rear lights

The price includes the installation of the cabin in our office, as well as the connection to the water cycle and the electrical connection.

If you want to mount the cabin itself, so we can offer you a special price!
(The cabin fits the following Kubota types: B1600 / B1702 / B1902 / L1802 / L2002 / L2202 / L2402)

The crocodile bucket / crocodile bucket / utility bucket / bucket with extra control valve and hose set is optional instead of the standard-front loader bucket for an additional charge of 900 €. The folding shovel with a euro intake is not possible.

Bracket frame HG200 for tractor weight Ballast weight for tractors Small tractors for 350 €

The empty barrel and straps are not included.

60 liters barrel

200 liters barrel

Financing / Leasing for businesses possible - Please contact us!

With german manual:

4 technicians work daily on the tractors.

Here you can see a video from the everyday life of our tractor workshop (not provided!).

Here you can see two videos from the everyday life of our welding shop (not provided!). 3 professional welders work daily on own productions and custom-made products according to customer orders / customer requests.

Disassembly and assembly of the front loader - uncoupled within 15 minutes - see for yourself !!!

Before disassembling the front loader, lower the front loader bucket to the ground.

The front loader is equipped with parking supports.
These parking supports can be infinitely adjusted depending on the terrain.

You need to extend the parking supports.

Loosen the bolts and disconnect the hydraulic hoses (since these are bayonet locks).

Drive the tractor back.

The front loader stops in the parking position.
Coupling is done in reverse order.

The uncoupling of the front loader takes about 15 minutes.

Put the bayonet locks together with the same numbers.

Here you can watch our video for mounting the front loader:

Kubota spare parts service, information material and operating instructions for tractors bought from us. Look for yourself! <<

Regarding street legal

We provide a finished vehicle papers for 1670.00 Euros and have upgraded the tractor electrically. The vehicle is first registered on company Fritzsch and you only need to make the transfer at the admissions office.
Or after converting the tractor on your own, you can get the DEKRA approval for 600.00 Euros by us. You must retrofitting the tractor on your own, the following must be upgraded: CE headlights with parking lights, mirrors, horn, brake lights and a hazard flasher.

If you want to get the licensing for your own tractor by us, then the tractor has to be presented here and must be technically accepted. You can also retrofitting the tractor on your own even electrically. To create the vehicle registration, we still need a clearance certificate from your tractor. A clearance is required which can cost about 500.00 to 800.00 Euros if you do not have one.

⇒ Typing errors, misapprehensions and changes excepted.
