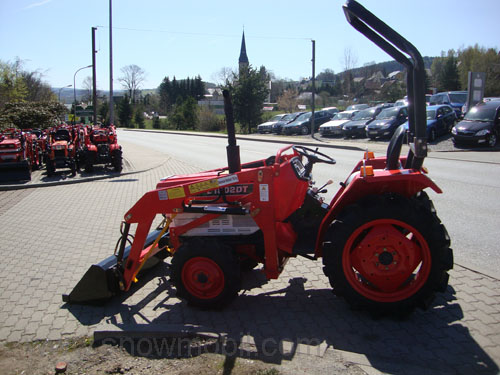

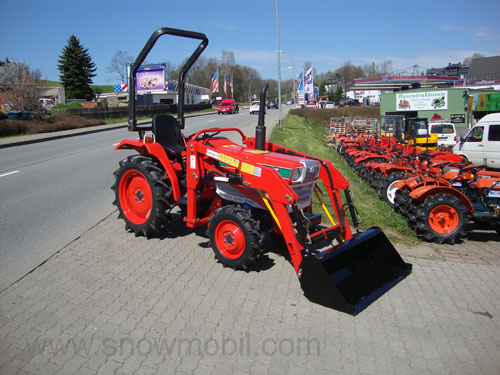

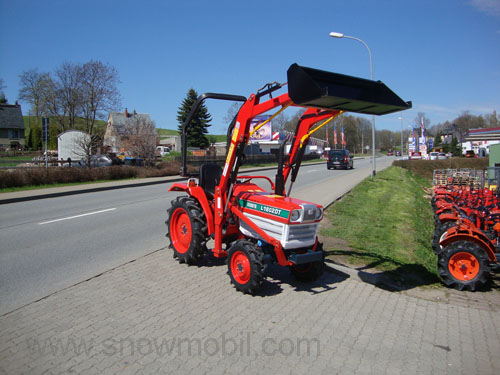

Compact tractor Kubota L1802 4WD with front loader, overhauled and repainted

11.600,00 EUR 19 % VAT incl.

Shipping inside Germany: 500,00 EUR * * Shipping information

Shipping time: immediately available from stock, since we have several stores in the vicinity, we ask for tel. Pre-registration for pick-up

In stock immediately!

As we equip the machine according to customer's requirement, we need some follow-up time for this, so you need to allow some extra time.

equipment:
• new battery
• new fan belt
• new radiator hoses
• new seat
• new air filter
• new diesel filter
• new oil filter
• new oil
• oil seals are replaced if necessary
• all filters are new
• new or good used tires
• Supplied with foldable roll bar.

The following work was made:
• the tractor was completely taken apart
• Engine / transmission have been checked and repaired
• any defective part was replaced
• steering gear overhauled
• radiator checked
• safety switch for clutch

We can prove these works.

Slight paint damage or abrasion might have occurred owing to ocean shipment.

Specification

• Diesel Engine: Kubota D1102 - 3 cylinders with 1115 ccm
• Power: 25,0 PS/18,4 kW at 3000 rpm.
• Bore and stroke: 76 x 82
• clear width front (outside / outside): 1100 mm
• clear width rear (outside / outside): 1200 mm
• Wheelbase center-center: 1500 mm
• ground clearance: 270 mm
• Transmission: mechanical circuit group
• Number of gears: 6 forward and 2 reverse
• Speed: 0,22 - 14,7 km/h
• rotation of the PTO: clockwise
• PTO Speed: 540 - 800 - 1000 - 1250 U/min.
• Diameter of the PTO: 1" 3/8 - 6 G-parted
• agrarian tyres front: 6.00-14
• agrarian tyres rear: 8.3-24
• Dimensions (L x W x H): 330 x 125 x 250 cm with front loader
• Weight of tractor: 900 kg
• Weight of tractor with Front loader: 1150 kg
• new front loader with bucket width 125 cm

The front loaders correspond with the EU standard 12525 and have been tested!

Think about of the safety of a standardized EU rollover bar

According to our current state of knowledge - all our competitors sell tractors without EU approved and accepted roll bars - this is a violation of law.

If these dealers offer rollover bars, it"s not a design that conforms to the standard and is not allowed.

In the EU, tractors from 600 kg net weight without equipment must have a tested and by an european test institute accepted roll bar.

We have tested rollover bars with much financial effort.

The manufacture of of a roll bar will cost at least 650.00 euros, so we have to factor with this additional cost.

You"re taking a security risk when you buy a tractor from 600 kg dead weight without a rollover bar!

Delivered with hinged unpainted roll bar.

Additional options:

Painted roll bar in black for 250.00 euros (this must be communicated to us early enough when placing the order)
A floating position can be retrofitted for a surcharge.

Our tractors are equipped with an approved EU rollover bar after the EU: 86 / 298/EWG standard (check the pictures).

Here is one of several test reports and inspection reports!!!

Video L1802DT with front loader:

Financing / Leasing for businesses possible - Please contact us!

We guarantee a serious carrying out. You have a full right of return.

Warranty - 1 year. Except on common wear parts, age and running time related wear is not a defect.

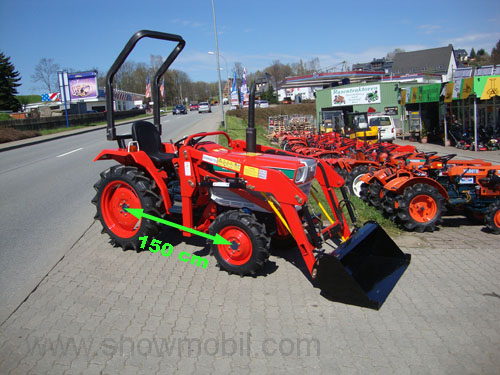

Wheelbase center-center

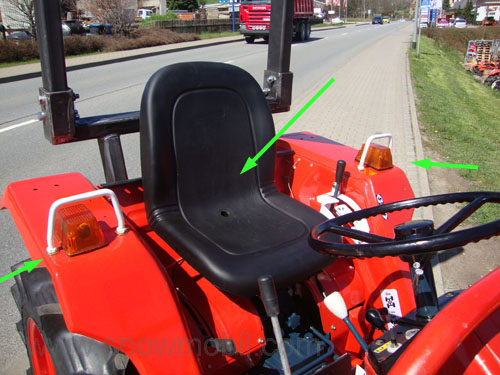

new EU-seat and new blinker

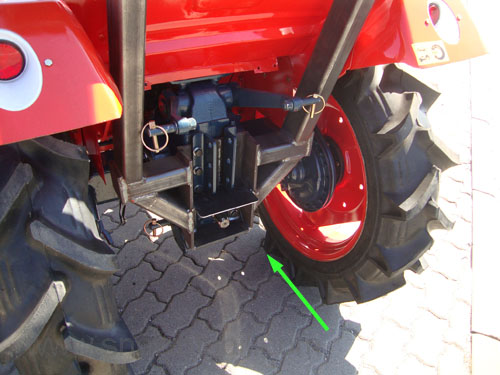

PTO guard

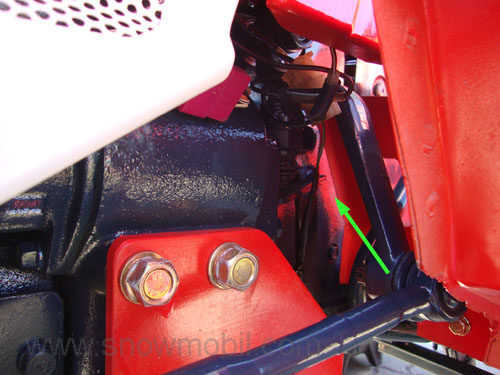

safety switch for clutch

with new safety stickers

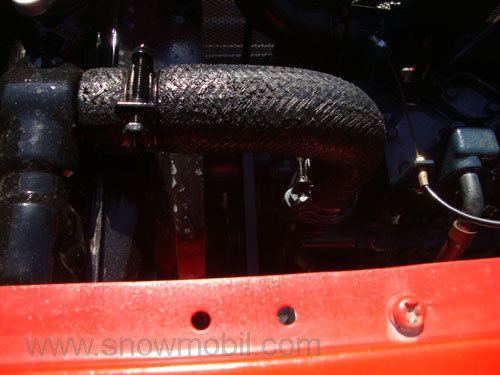

New hoses

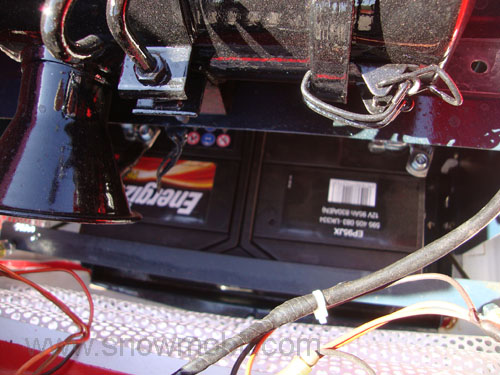

New battery

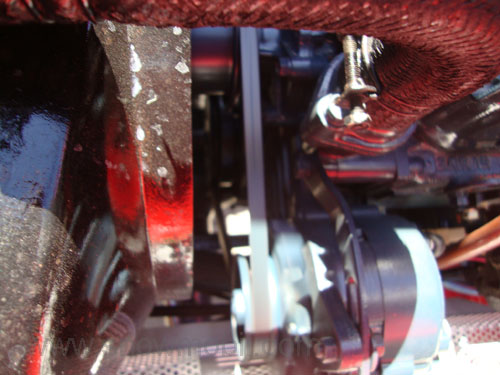

new fan belt

all bolts are new electroplated

The crocodile bucket / crocodile bucket / utility bucket / bucket with extra control valve and hose set is optional instead of the standard-front loader bucket for an additional charge of 900 €. The folding shovel with a euro intake is not possible.

Croco bucket / Multi-purpose bucket / Folding bucket

Bracket frame HG200 for tractor weight Ballast weight for tractors Small tractors for 350 €

The empty barrel and straps are not included.

60 liters barrel

200 liters barrel

With german manual:

4 technicians work daily on the tractors.

Here you can see a video from the everyday life of our tractor workshop (not provided!).

Here you can see two videos from the everyday life of our welding shop (not provided!). 3 professional welders work daily on own productions and custom-made products according to customer orders / customer requests.

Disassembly and assembly of the front loader - uncoupled within 15 minutes - see for yourself !!!

Before disassembling the front loader, lower the front loader bucket to the ground.

The front loader is equipped with parking supports.
These parking supports can be infinitely adjusted depending on the terrain.

You need to extend the parking supports.

Loosen the bolts and disconnect the hydraulic hoses (since these are bayonet locks).

Drive the tractor back.

The front loader stops in the parking position.
Coupling is done in reverse order.

The uncoupling of the front loader takes about 15 minutes.

Put the bayonet locks together with the same numbers.

Here you can watch our video for mounting the front loader:

Kubota spare parts service, information material and operating instructions for tractors bought from us. Look for yourself! <<

Regarding street legal

We provide a finished vehicle papers for 1670.00 Euros and have upgraded the tractor electrically. The vehicle is first registered on company Fritzsch and you only need to make the transfer at the admissions office.
Or after converting the tractor on your own, you can get the DEKRA approval for 600.00 Euros by us. You must retrofitting the tractor on your own, the following must be upgraded: CE headlights with parking lights, mirrors, horn, brake lights and a hazard flasher.

If you want to get the licensing for your own tractor by us, then the tractor has to be presented here and must be technically accepted. You can also retrofitting the tractor on your own even electrically. To create the vehicle registration, we still need a clearance certificate from your tractor. A clearance is required which can cost about 500.00 to 800.00 Euros if you do not have one.

⇒ Typing errors, misapprehensions and changes excepted.
