equipment:
- new battery
- new fan belt
- new radiator hoses
- new seat

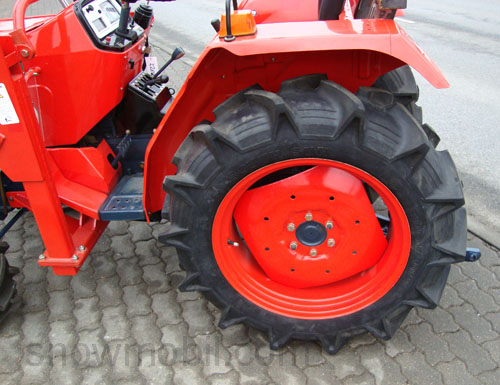

- new or good used tires
- new diesel filter
- new oil filter
The following work was made:
• the tractor was completely taken apart
• Engine / transmission have been checked and repaired
• any defective part was replaced
• steering gear overhauled
• radiator checked
We can prove these works.
Warranty - 1 year. Except on common wear parts, age and running time related wear is not a defect.
We guarantee a serious carrying out. You have a full right of return.
Specification

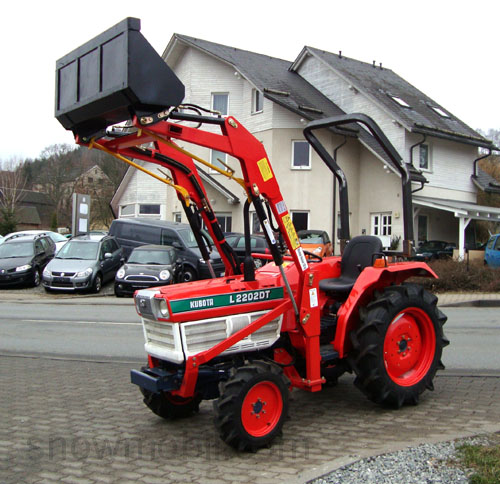

- Diesel engine: Kubota D1402 - 3 cylinder with 1395 ccm
- max. Power: 31,4 PS/23,1 kW at 3000 rpm.
- clear width front wheel: 120 cm
- clear width rear wheel: 125 cm
- Wheelbase center to center: 165 cm
- Ground clearance: 30 cm
- Transmission: mechanical circuit group
- Number of gears: 16 forward and 4 reverse
- Speed: 0,22 - 14,7 km/h
- rotation of the PTO: clockwise
- PTO Speed: 540 - 800 - 1000 - 1250 U/min.
- Diameter of the PTO: 1" 3/8 - 6 G-Teilig
- agrarian tyres front: 6.00 - 14
- agrarian tyres rear: 9.5 - 24
- Dimensions (L x B x H): 360 x 125 x 250 cm
- Weight with front loader: 1090 kg

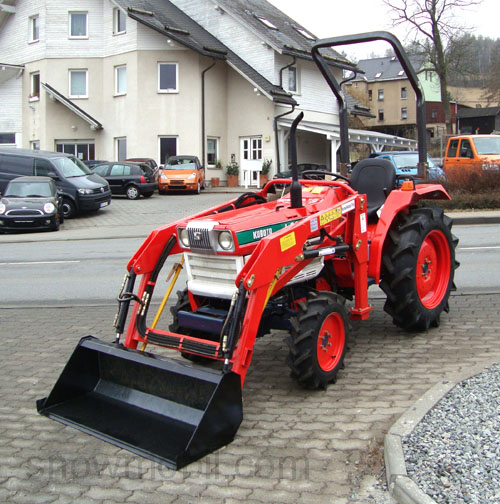

- Front loader 125 cm work width
Think about your safety!!!
Our competitors sell untested front loaders, which were mostly manufactured in Asia. None of these products complies with European safety standards:
• missing important safety parts in these products
• there is no manual
At Motorgeräte Fritzsch GmbH you will get safe, tested and accepted front loaders. These are 100% compliant with current European standards.
The front loaders correspond with the EU standard 12525 and have been tested!
In the EU, tractors from 600 kg net weight without equipment must have a tested and by an european test institute accepted roll bar.
We have tested rollover bars with much financial effort.
The manufacture of of a roll bar will cost at least 650.00 euros, so we have to factor with this additional cost.
You"re taking a security risk when you buy a tractor from 600 kg dead weight without a rollover bar!

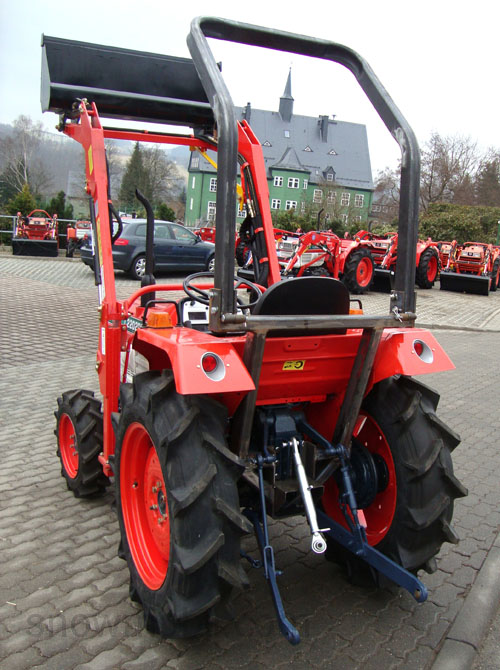

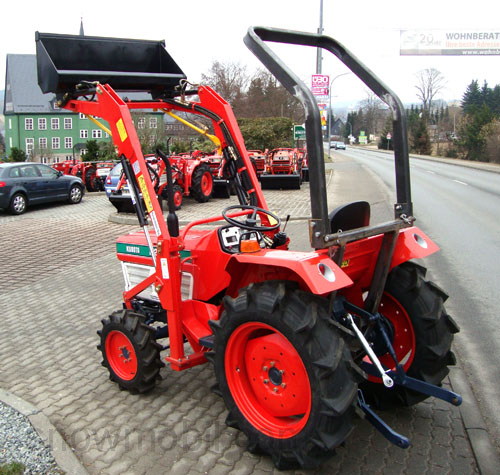

Delivered with hinged unpainted roll bar.
Additional option:
- Painted roll bar in black for 250.00 euros (this must be communicated to us early enough when placing the order)
- A floating position can be retrofitted for a surcharge.
Our tractors are equipped with an approved EU rollover bar after the EU: 86 / 298/EWG standard (check the pictures).
Here is one of several test reports and inspection reports!!!

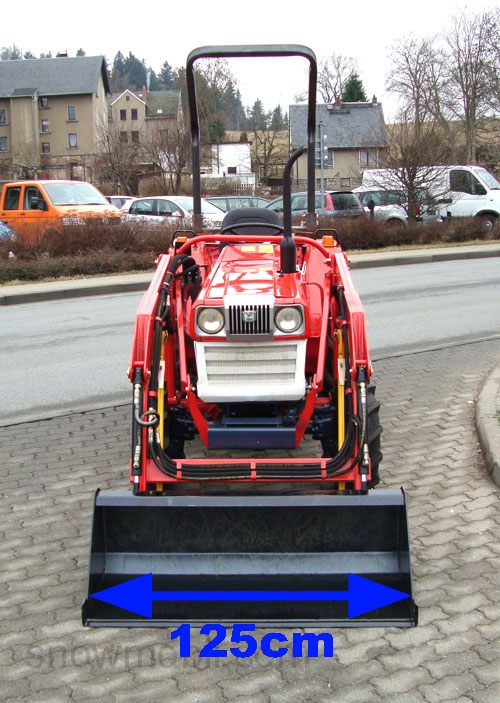

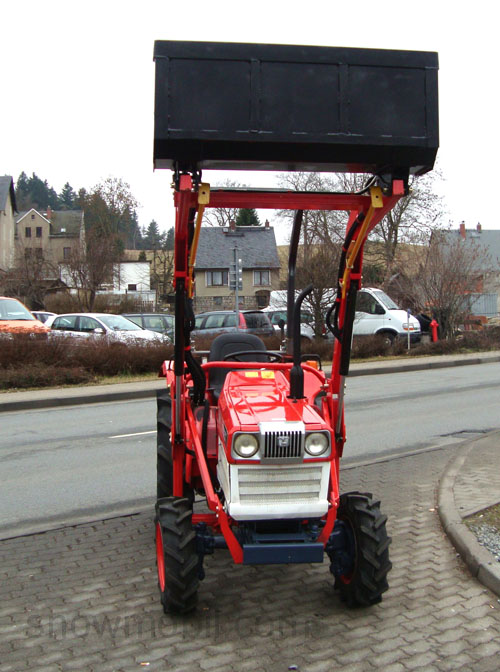

shovel width 125 cm

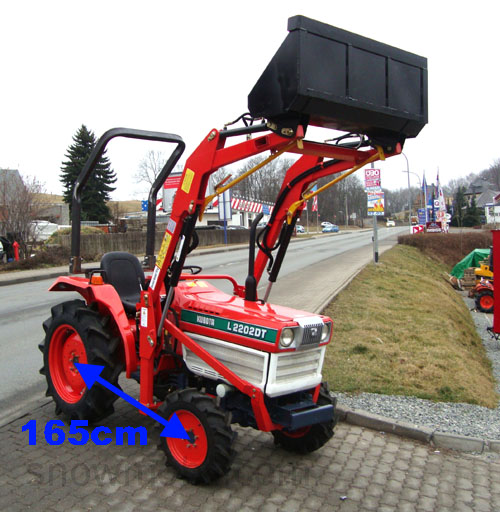

Wheelbase center to center

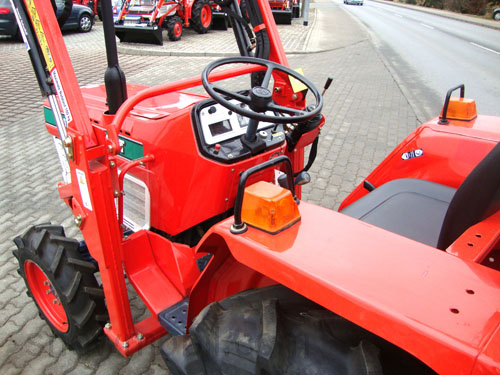

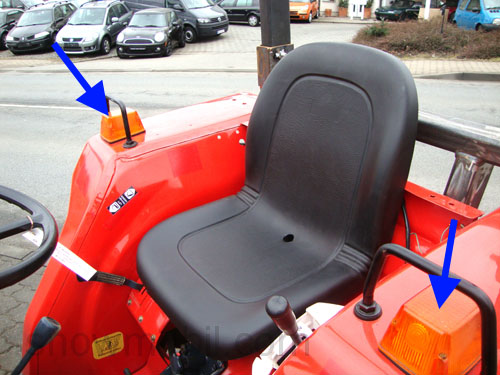

With new EU approved and accepted seat, as well as new indicators.
PTO shaft guard

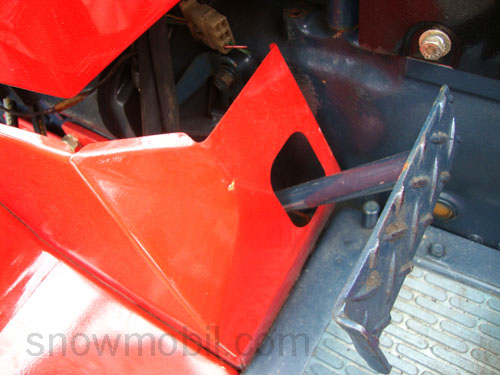

Clutch safety switch

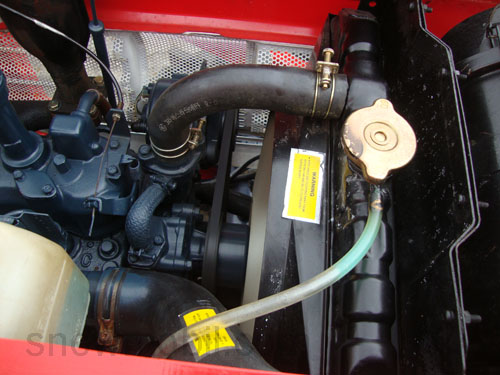

new hoses

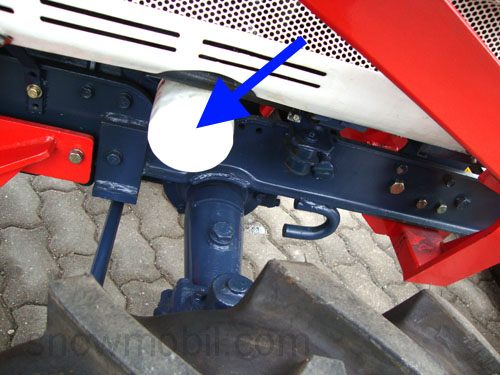

new Oilfilter

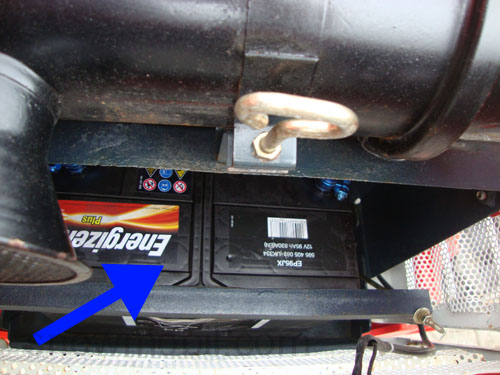

new battery

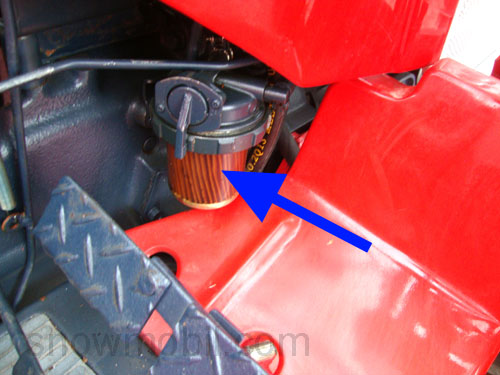

new diesel filter

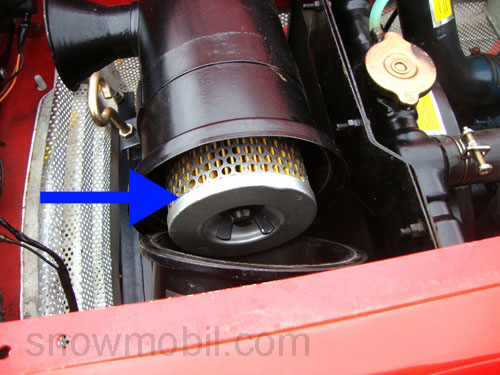

new air filter
with new safety stickers
The crocodile bucket / crocodile bucket / utility bucket / bucket with extra control valve and hose set is optional instead of the standard-front loader bucket for an additional charge of 900 €. The folding shovel with a euro intake is not possible.
Bracket frame HG200 for tractor weight Ballast weight for tractors Small tractors for 350 €
The empty barrel and straps are not included.
60 liters barrel
200 liters barrel
