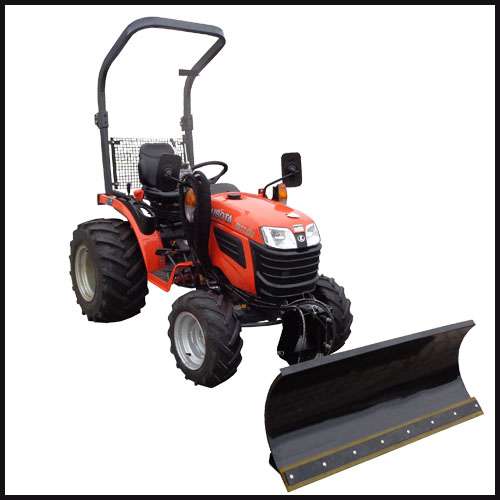

This is a new machine.
We deliver the tractor with a finished motor vehicle letter with daily registration to Motorgeräte Fritzsch GmbH. You only have to rewrite the change of ownership and thus have no effort on the part of the authorities.
Thus, Fritzsch stands as a first entry in the car letter. At the express request of the customer when placing the order, we can exceptionally hand over a blank receipt. The first registration takes over the customer.
The AS wide tires are not included. The tractor is delivered with the AS standard tires front 6x12 rear 8x16.
Technical specifications
- Max. Engine power: 18.0 hp / 13.2 kW environmentally friendly 3-cylinder Kubota whisper-diesel engine
- Displacement: 778 cc
- 6 forward and 2 reverse gears
- Max. Driving speed: 17 km / h
- differential lock
- Power steering as standard
- Rear PTO: 540 and 1000 rpm. with overrunning clutch
- in the oil bath running multi-disc brake
- vibration-damped driver platform
- Hour meter
- comfort seat
- laterally arranged operating lever
- 3-point hydraulic linkage
- Towing
- Weight: approx. 572 kg
- with street legal
- incl. power steering
- incl. snow blade 120 cm
The Vulkolan rubber molding and the steel blade for the snow blade are included.
(1) Stronger support frame to prevent the snow blade from warping (2) Continuous profile reinforcement strip
Locking pin for quick disassembly and assembly of the snow blade.
Swing cylinder for side swing
As a hydraulic drive, the existing hydraulic circuit of the tractor is used. So it is the lead-pressure line of the hydraulic circuit cut and there is an angle-Hermetoverschluss installed.
Control valve in floating position
Control valve at rest
infinitely adjustable sanding plates
The snow blade can be hydraulically swiveled and hydraulically lifted. The swivel cylinders, the control valve and the hoses are included. The control valve has a float position - so you can clear away effectively.
