This is a new machine.
We deliver the tractor with a finished motor vehicle letter with daily registration to Motorgeräte Fritzsch GmbH. You only have to rewrite the change of ownership and thus have no effort on the part of the authorities.
Thus, Fritzsch stands as a first entry in the car letter. At the express request of the customer when placing the order, we can exceptionally hand over a blank receipt. The first registration takes over the customer.
The AS wide tires are not included. The tractor is delivered with the AS standard tires front 6x12 rear 8x16.
Technical specifications
• Max. Engine power: 12.0 hp / 8.2 kW, 2-cylinder Kubota diesel engine
• Displacement: 479 cc
• Gearbox: 6V / 2R, max. Speed 17 km / h (depending on tire), differential lock
• Comfort: headlamp, spacious driver's platform, instrument lighting, cup holder
• PTO: rear PTO with overrunning clutch 540 rpm
• Hydraulic system: delivery volume 7.9 l / min, max. Working pressure 94 bar, rear three-point suspension cat. 1, lifting force at lower link end 430 kg
• Drawbar: standard
• Overall length: 2475 mm
• Total height roll bar (depending on tire): 2293 mm
Wheelbase: 1270 mm
• Weight: 600 kg
• Ground clearance (tire-dependent): 240 mm
• Max. Front axle load (depending on tire type): 500 kg
• Max. Rear axle load (depending on tire type): 800 kg
• permissible total weight (depending on tire): 1300 kg
• incl. AS tires: V 5-12; H 8-16
Financing / leasing for traders possible - ask!

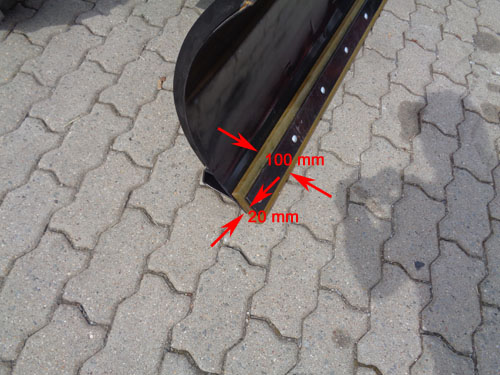

The Vulkolan rubber molding and the steel blade for the snow blade are included.

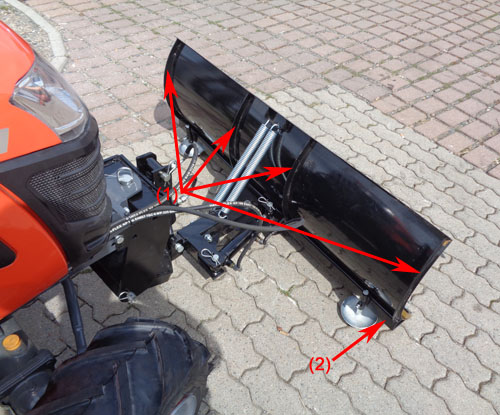

(1) Stronger support frame to prevent the snow blade from warping (2) Continuous profile reinforcement strip

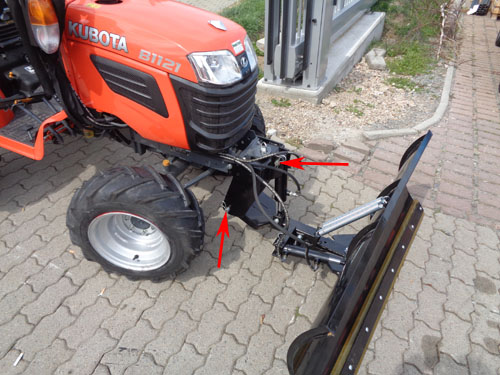

Locking pin for quick disassembly and assembly of the snow blade

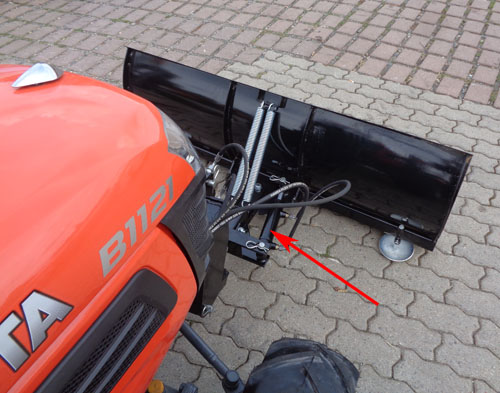

Swing cylinder for side swing

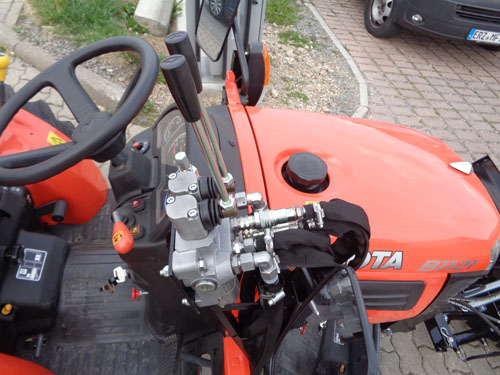

Control valve in floating position
Control valve at rest

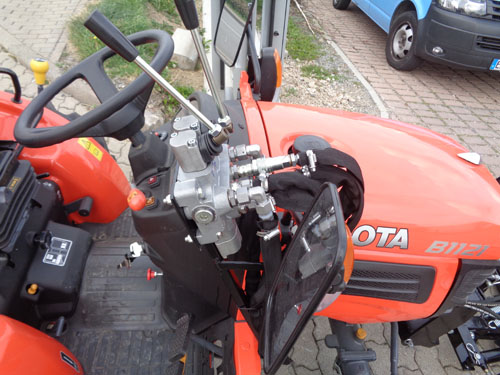

As a hydraulic drive, the existing hydraulic circuit of the tractor is used. So it is the lead-pressure line of the hydraulic circuit cut and there is an angle-Hermetoverschluss installed.

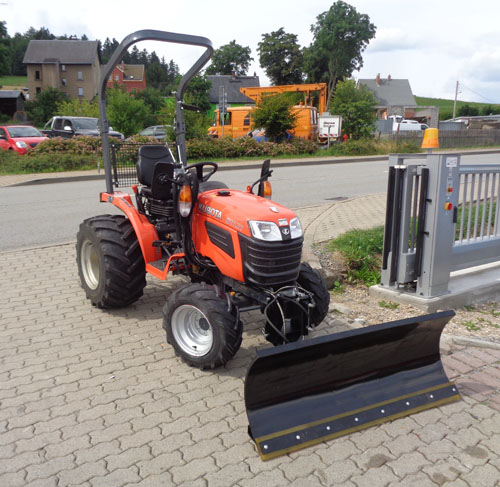

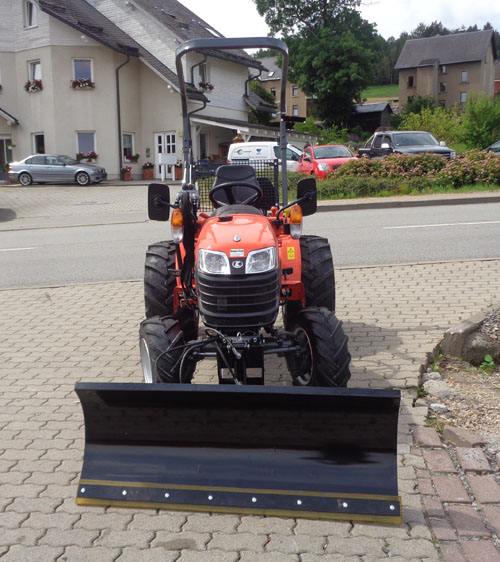

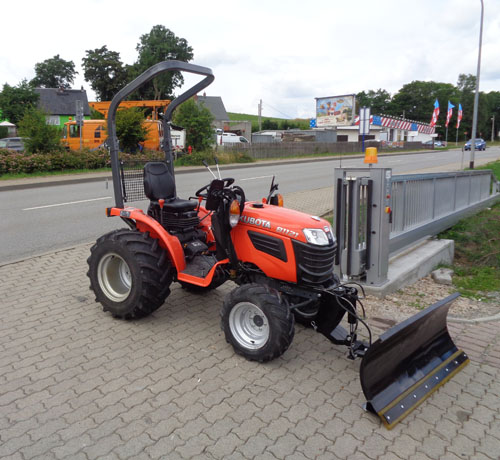

The snow blade can be hydraulically swiveled and hydraulically lifted. The swivel cylinders, the control valve and the hoses are included. The control valve has a float position - so you can clear away effectively.

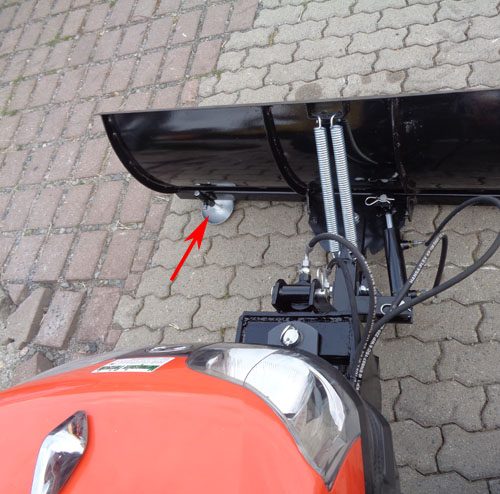

infinitely adjustable sanding plates
