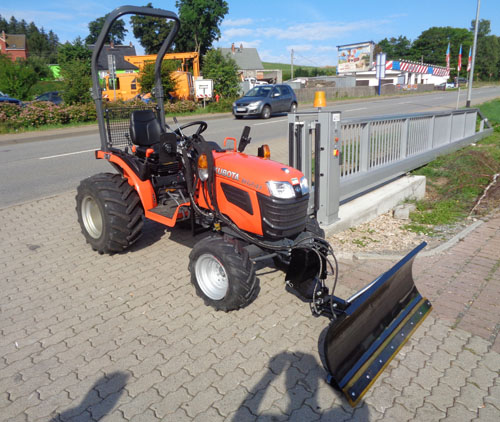

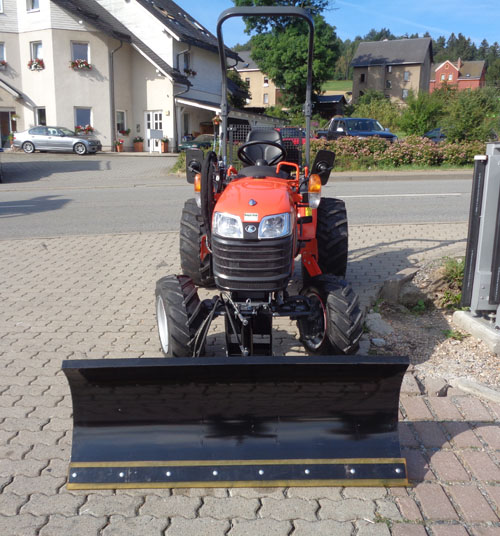

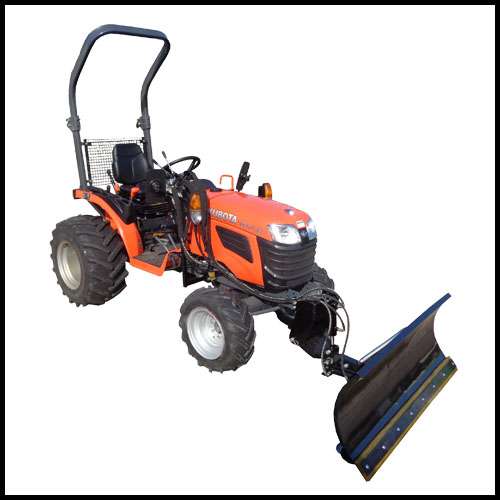

Compact tractor tractor Kubota B1241 B1-241 24 hp with hydraulic snow blade 120 cm

17.300,00 EUR 19 % VAT incl.

Shipping inside Germany: 500,00 EUR * * Shipping information

Shipping time: immediately available from stock, since we have several stores in the vicinity, we ask for tel. Pre-registration for pick-up

Immediately in stock!

As we equip the machine according to customer's requirement, we need some lead time for this.

This is a new machine.
We deliver the tractor with a finished motor vehicle letter with daily registration to Motorgeräte Fritzsch GmbH. You only have to rewrite the change of ownership and thus have no effort on the part of the authorities.

Thus, Fritzsch stands as a first entry in the car letter. At the express request of the customer when placing the order, we can exceptionally hand over a blank receipt. The first registration takes over the customer.

The AS wide tires are not included. The tractor is delivered with the AS tires front 23 x 10.50-12 rear 280 / 70R18.

Technical specifications

• Max. Engine power: according to ECE R120 24 hp / 15.7 kW, 3-cylinder Kubota diesel engine, fuel tank 26 l
• Displacement: 1123 cc
• Gearbox: 9V / 3R, max. Speed 20 km / h (depending on tire), differential lock
• Four-wheel drive: selectable four-wheel drive
• Comfort: headlamp, spacious driver's platform, instrument lighting, cup holder
• PTO: rear PTO with overrunning clutch 540 rpm
• Hydraulic system: delivery volume 16.6 l / min, max. Working pressure 140 bar, rear three-point suspension cat. 1, lifting force at lower link end 615 kg
• Drawbar: standard
• Overall length: 2819 mm
• Total height roll bar (depending on tire): 2349 mm
Wheelbase: 1563 mm
• Weight: 761 kg
• Ground clearance (tire-dependent): 240 mm
• Max. Front axle load (depending on tire type): 650 kg
• Max. Rear axle load (depending on tire type): 1150 kg
• permissible total weight (depending on tire): 1800 kg
• incl. AS tires: V 23 x 10.50-12; H 280 / 70R18

Financing / leasing for traders possible - ask!

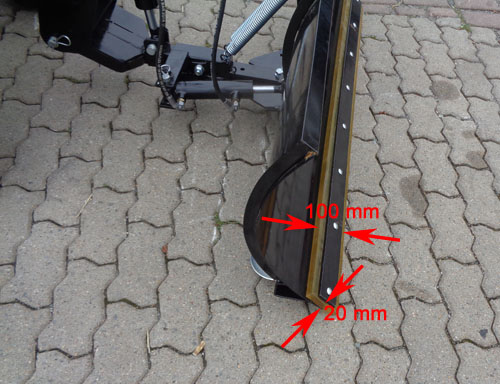

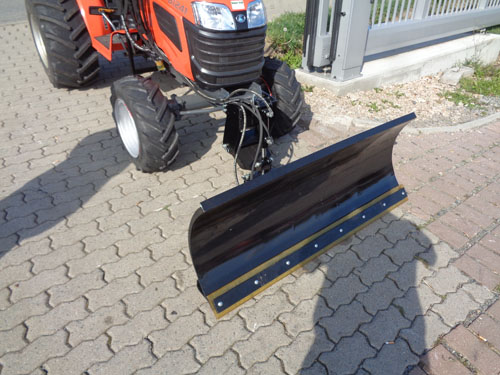

The Vulkolan rubber molding and the steel blade for the snow blade are included.

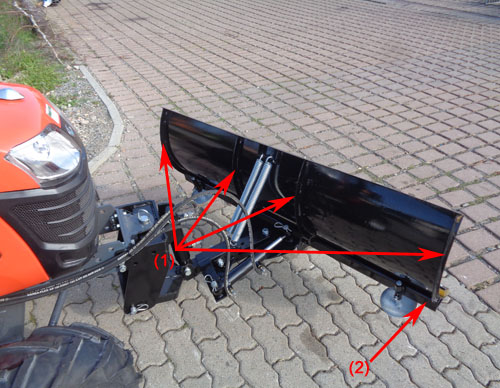

(1) Stronger support frame to prevent the snow blade from warping (2) Continuous profile reinforcement strip

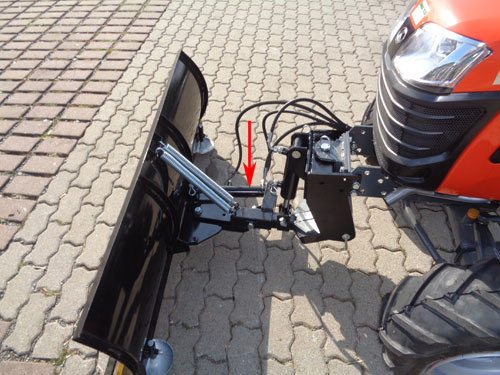

Locking pin for quick disassembly and assembly of the snow blade.

Swing cylinder for side swing

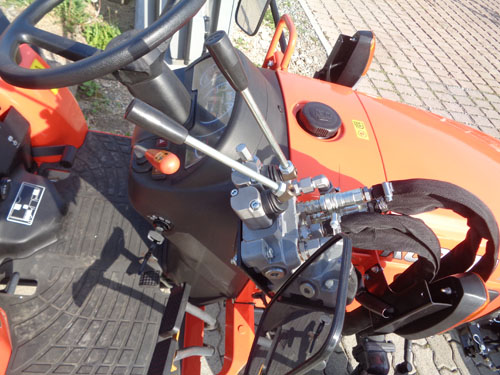

Control valve in floating position

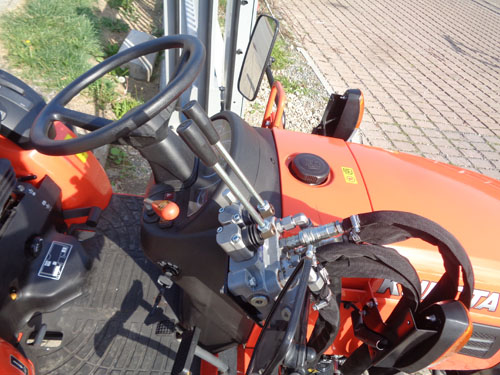

Control valve at rest

As a hydraulic drive, the existing hydraulic circuit of the tractor is used. So it is the lead-pressure line of the hydraulic circuit cut and there is an angle-Hermetoverschluss installed.

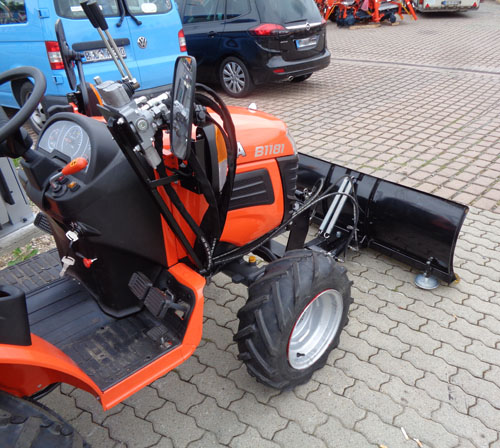

The snow blade can be hydraulically swiveled and hydraulically lifted. The swivel cylinders, the control valve and the hoses are included. The control valve has a float position - so you can clear away effectively.
