The delivery takes place with the current model 2023!
For over 10 years we are engaged in the sale of small tractors. With increasing success. We try a round program for each customer base to offer, whether it's a remanufactured used Tractor or a new tractor in the Japanese premium class.
Equally tractors from China and India have their eligibility. Their quality has improved from year to year.
And market shares grow steadily worldwide.
Also in the accessories sector, we offer a full product range.
Changes or adjustments according to customer do our flexible employees in the metal department / Locksmith.
There are not many companies offering this service.
The tractors are produced by the company Sonalika in India. It exports to 72 countries and 200-250 tractors per day are produced.
This tractor is characterized by simple technology without any electronics. The tractor can be repairedby any experienced locksmith himself.
In the pictures you can see the version with outside air filter. Of course, the new version will be delivered with air filters inside.
Regarding road approval:
In practice, the approval can be complicated with the COC paper or just with the Dekra or TÜV report. You only notice this when you are at the admissions office. That's why we give you a complete vehicle letter with a one-day registration to Motorgeräte Fritzsch GmbH. You only have to have the owner re-registered at the registration office and you will not have any problems with the authorities.
Very interestingis the equipment package:
- Model 2016: with external air filter (If desired internal filter retrofit for 200, - Euros, but the same functionality)
- complete conversion to STVZO has already taken place
- We deliver the tractor with a ready-to-use vehicle letter with a daily license to the Motorgeräte Fritzsch GmbH (You only have to rewrite the change of ownership and therefore do not have to worry about the authorities.)
- suspension seat
- 2 hydraulic connections at the rear
- Hitch, drawbar and rear three-point linkage as standard
- Trailer socket for trailer
- Roll bar
- Snow plow 118 cm
This tractor is an affordable option for stable owners, farmers and small farms.
We guarantee a serious carrying out. You have a full right of return.
Specification
- Engine: 3-cylinder direct injection Mitsubishi Engine MVL-3E watercooled EPA-approved
- Maximum power: 14.7 kW / 20,0PS
- minimum speed: 1.36 km / h
- maximum speed: 15.1 km / h
- Bore + stroke: 76 x 77 mm
- Displacement: 952 cm³
- Alternator: 12 Volt / 250 Watt
- Transmission: 6 forward and 2 reverse gears
- Differential Lock: mechanical switchable by lever on the rear axle
- PTO 540/931/1588 rev / min. clockwise
- Hydraulics: Gear pump
- Delivery rate of the hydraulic pump: 12 l / min.
- Three-point rear linkage KATI / rear hydraulics as standard
- Empty weight: 835 kg
- Security: roll cage with seat belt as standard
- Wheelbase outside front: 900 mm
- Wheelbase outside rear: 920 mm respectively 1020mm
- Agricultural Great Tires: 5.00-12 front and rear 8-18 (As standard included)
- Ground clearance: 200 mm
- Steering: mechanical
- Height Steering wheel: 1250 mm
- Dimensions (LxWxH): 2500 x 920 x 2200 mm
- incl. Snow plow 1,18 m
Specification Snow plow
- spring damper/flap snow plow 118 cm x 50 cm
- Clearing width1,18 m
- with mounting frame, lifting rod and Vulkolan strip

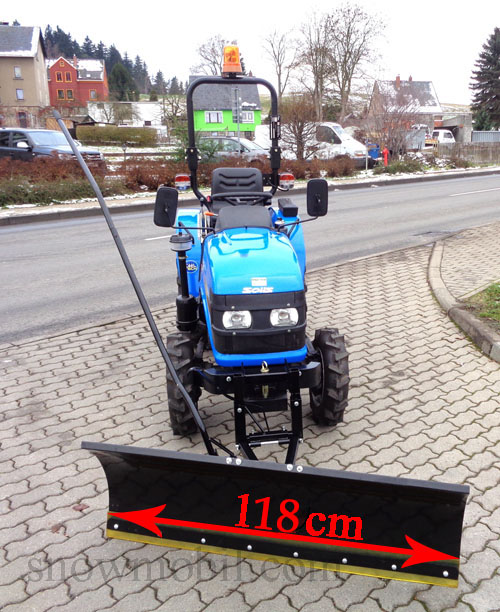

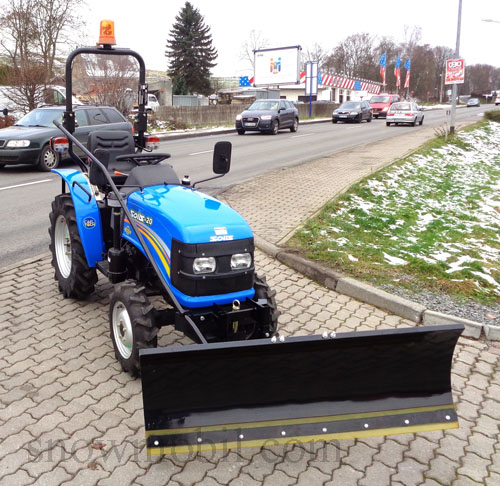

snow plow with 1,18 m working width

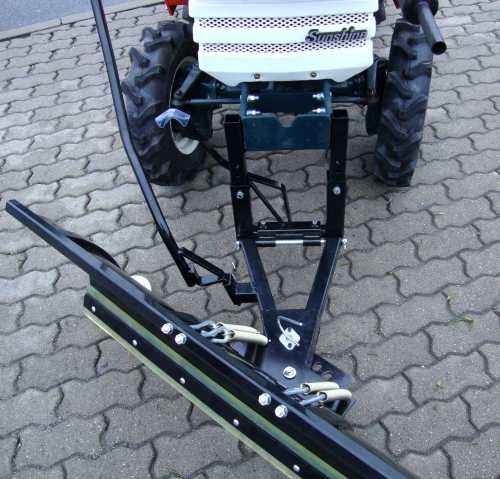

The lifting takes place by means of the long push rod, which can be hooked into the side-mounted hooks.
The snow plow is designed as a spring damper snow plow, that is if you drive into an obstacle, the shield folds away forward.

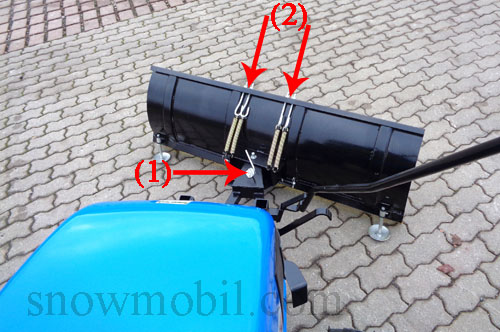

(1) spring-loaded locking pin
(2) continuous adjustment of the spring tension

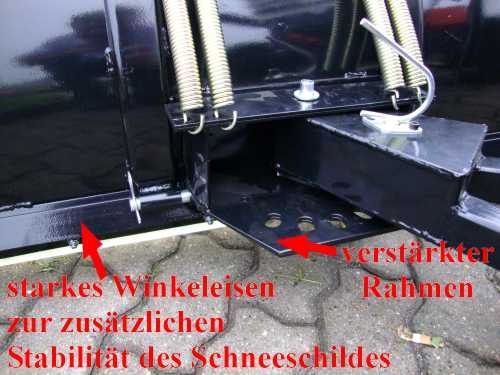

The snow blade can be swiveled 5X by pulling the spring-loaded plug bolt. It is designed as a safety spring snow blade. The 4 springs can be tensioned continuously depending on the load by means of threaded bolts.
The snow blade can be demounted or mounted quickly and without tools by means of this plug-in bolt.
By means of the continuously variable sliding skids the height of the snow shield can be adjusted.

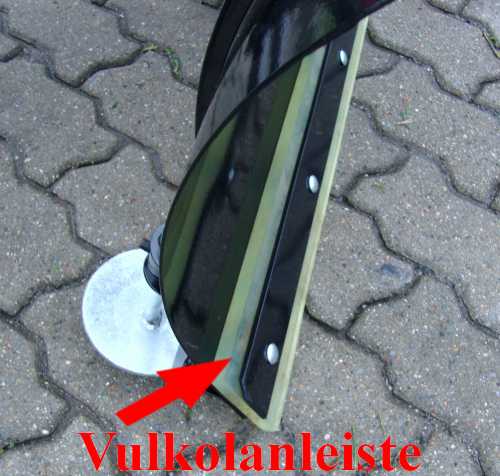

The rubber strake for the snow plow made of Vulkolan is included and 10 cm high and 15 mm wide.

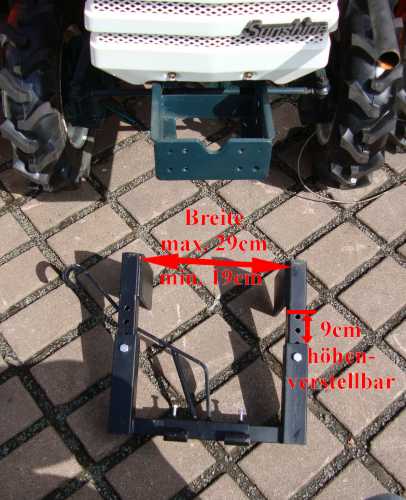

The mounting frame can be flexibly adjusted depending on the width and height of the existing tractor. Thus the frame can be mounted on any tractor with little effort.
220 cm Total height
125 cm height steering wheel
Rear three-point linkage with drawbar and top link as standard
hitch
(1) Trailer socket
(2) hydraulic connections
(1) folding rollbar
(2) suspension seat
(3) Toolbox
(4) handles
Gear lever H circuit
(1) 2-wheel or 4-wheel circuit
(2) locking lever footbrake
(3) Foot throttle
Mitsubishi engine
greaseable ball joint
The new Solis delivery arrived.
