Product no.: ABK1200

1.790,00 EUR   19 % VAT incl.

Shipping inside Germany: 450,00 EUR *     * Shipping information

Shipping time: immediately available from stock, since we have several stores in the vicinity, we ask for tel. Pre-registration for pick-up


Crane Mounted crane ABK1200 Hoisting crane Loading crane Farmer loader Rear loader Tracktor farming tractors compact tractors Item is temporarily not available!

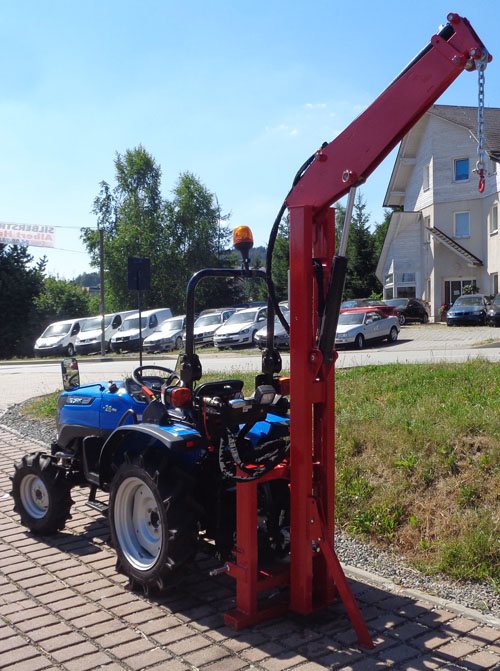

The hydraulic lifting crane is ideal for lifting objects and logs, etc.

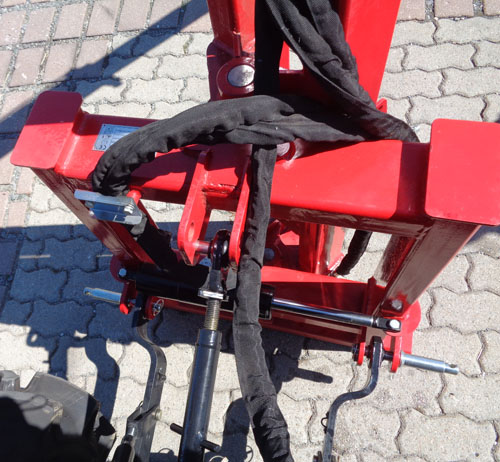

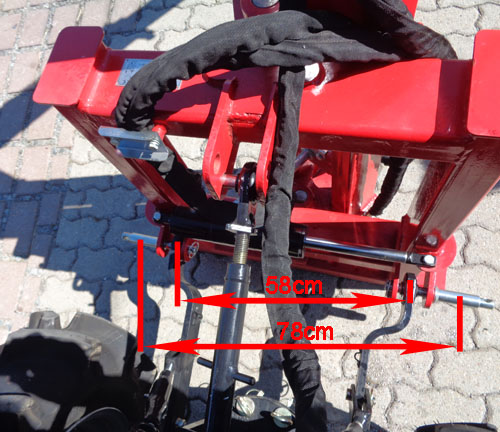

It is mounted in the rear three-point suspension CAT 1 and CAT 2.

The recordings are available as standard.

The crane can be swiveled through 36 °.

The swivel cylinder and the release cylinder work double-acting.

The lifting cylinder for the loading arm single-acting.

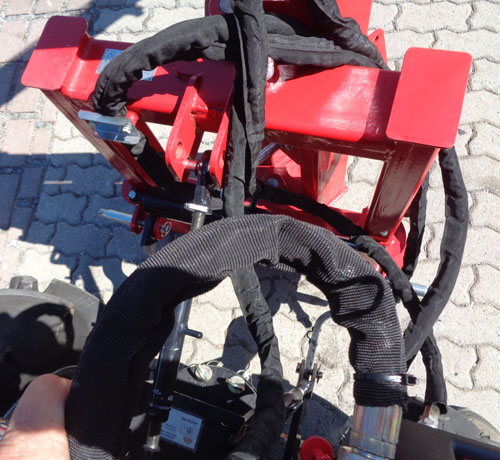

A set of hydraulic hoses is included in the standard scope of delivery.

The crane is completely assembled.


We guarantee a serious transaction - you have full right of return.

Technical specifications

  • max. Lifting capacity: 1200kg
  • Weight: 250kg
  • recommended power of the tractor: from 25hp
  • Swivel range: 36 °

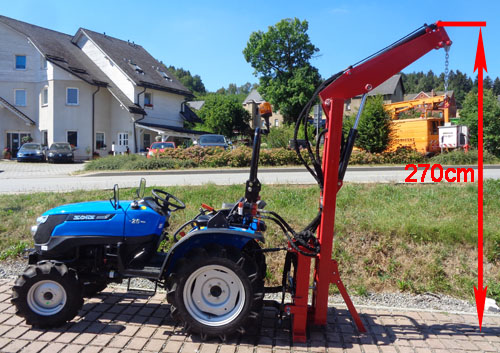

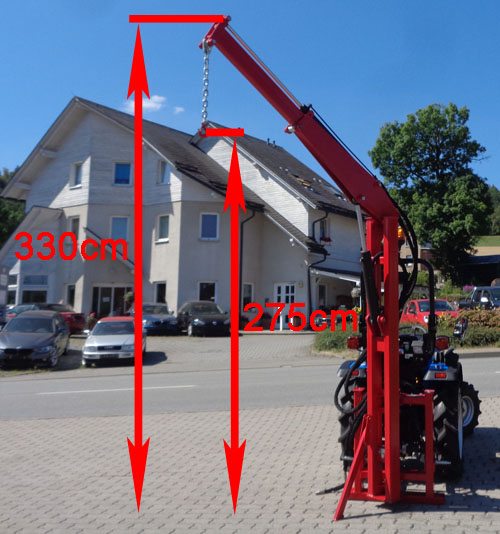

  • max. Lifting height at the hoe: 2,75m
  • max. Lifting height at the eye: 3,30m







⇒ Typing errors, misapprehensions and changes excepted.
