We sell this unit since 2005 and order from our Italian distributors always full truck loads, therefore our top price at top quality.
The small tractor should have a rear three-point hitch and KATI, a standard PTO 1 3/8 with 540rpm.
Hammer flails
This flail mower is suitable due to its light weight for tractors from 18 PS. At high grass it is safer to go with the 1st gear and a small group, then a small tractor is not overloaded.
The flail shaft is driven by 3 V-belts, whereby the tensioning device is easy to reach and adjust. The flail mower is equipped with cast hammer mallets. Due to its high flywheel mass, tall grass, branches and shrubs up to 3 cm thick are absolutely no problem. Through the hammer mallet is a better and cleaner cut can be seen.
The transmission is strengthened and dimensioned correspondingly large.
Gear oil needs to be replenished.
The device conforms to the applicable safety standards and is CE - certified.
The mulcher is equipped with freewheel gear. The PTO is included.
The flail mower is equipped with hammer-knives, which are staggered around the shaft. The blades have a long service life and can be easily sharpened with an angle grinder.
(1) 3 V-belts; (2) The roller and knife shaft can be lubricated
The steel housing is outside 6 mm thick. The inner part is made of 4 mm sheet steel.
The bracket and the parking support are included as standard in the package.
The rear roller is equipped with a wiper, and thus self-cleaning of the entire length.
We guarantee a serious carrying out. You have a full right of return.
Specification
• 125 cm working width
• Drive speed 540 rpm.
• gearbox with freewheel
• 18 hammer-flail blades, 350 g/Piece
• Stone guard, front and rear
• Housing made of 6 mm steel plate
• for tractors from 18PS
• bracket and parking support as standard
• Weight approx 175 kg
Sanding blade
3x V-belt as drive from transmission to the blade shaft
maximum position to the right
The max. Side shift is 40 cm.
Max. Position all the way to the left
material thickness

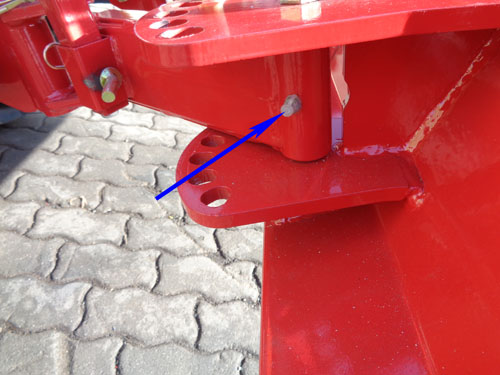

Greasable

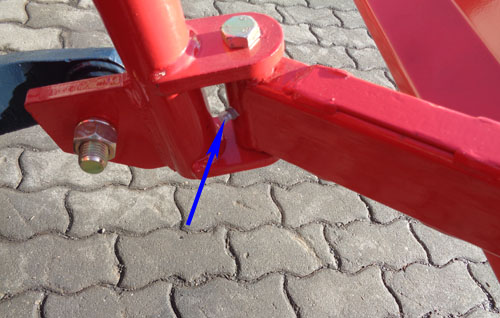

Greasable
Directly available in our warehouse! All spare parts are also in stock!
ATTENTION!
Please shorten the PTO shaft to required length.
