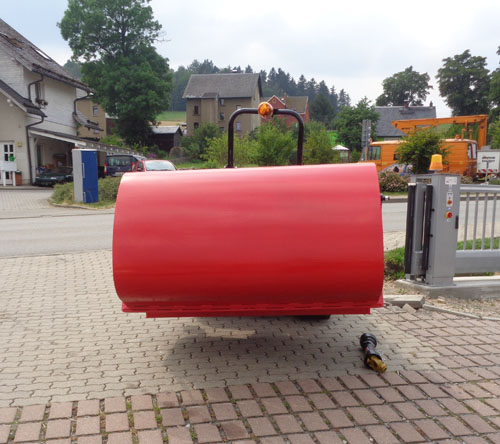

Rear Flail Mower SLM160F
Flail mower with freewheel

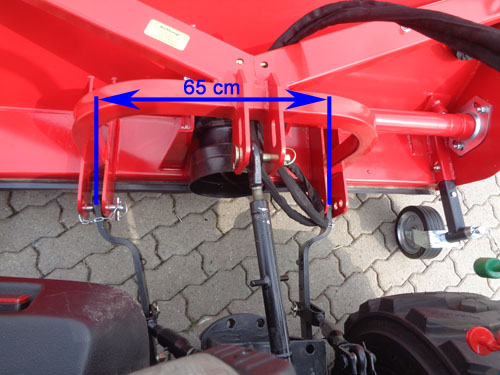

The small tractor should have a rear three-point hitch KAT0 or KATI and a standard PTO with 540rpm. clockwise.
This flail mower is also suitable for smaller tractors, provided you drive with the first gear at high grass, then the tractor is not overloaded.
The gearbox is equipped with freewheel. The standard PTO is included in the standard scope of delivery.
The flail mower is equipped with hardened steel beaker. The knives have a long service life and can be sharpened easily with the angle grinder.
The sheet steel housing is 4 mm thick on the outside.
The gearbox has a freewheel as standard, so the blade shaft can run out when the drive is switched off.

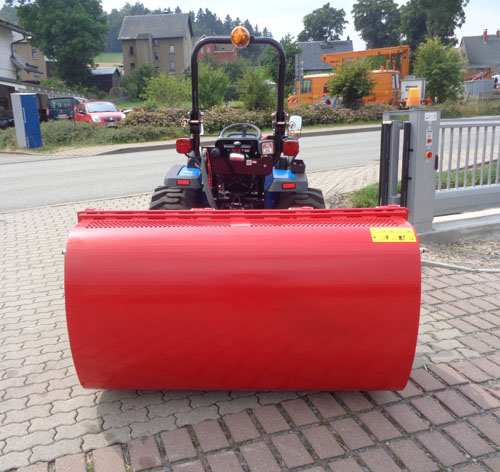

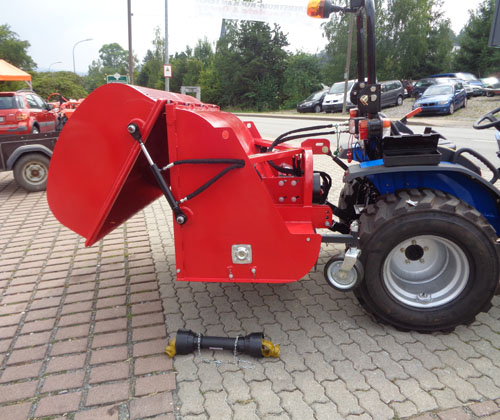

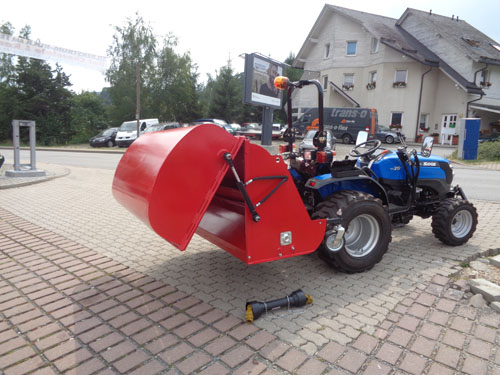

By means of 2 double-acting hydraulic cylinder, the tailgate can be opened and closed.
There is a hydraulic cylinder mounted on the right and left.
For this purpose, a double-acting control valve must be present or still attached to the tractor.

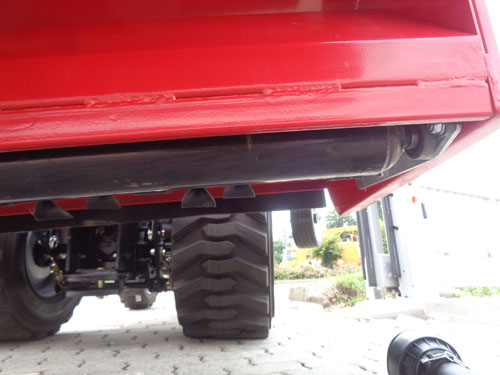

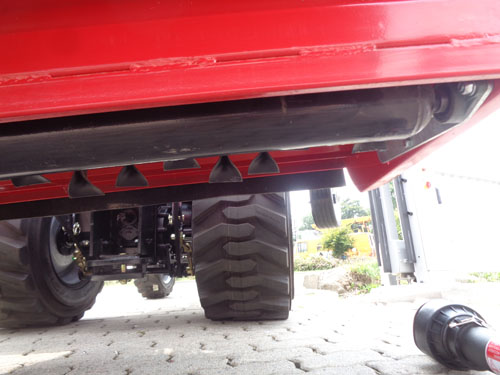

The 36 mounted steel cup knives guarantee a clean cut.

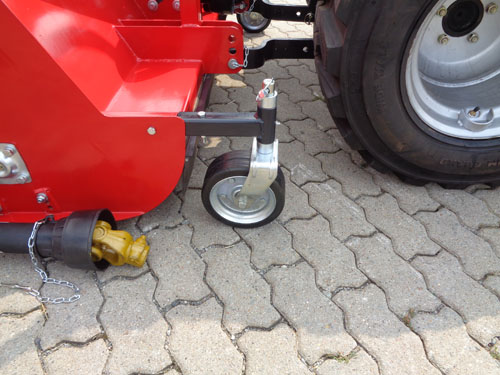

The two front support wheels are 2-way height adjustable. It is installed under the rear of a steel roller, which is not height adjustable.
The actual cutting height adjustment is infinitely variable via the adjustment of the upper link.
The standard scope of delivery includes the PTO, 2 hydraulic cylinders for the rear discharge and the hose set.
On the hose set a plug-in coupling / bayonet fitting size 3 (20.8 mm) is screwed.
Fill up gear oil!
We guarantee a serious transaction - you have full right of return.
Technical specifications
- 160 cm working width
- Drive speed 540 rpm.
- Capacity 0.7m³
- Gearbox with freewheel
- 36 hardened steel cup knives
- Stone guard front and back
- Housing made of 4 mm sheet steel
- Weight 540 kg
- including PTO, 2 hydraulic cylinders for rear discharge and hose set
Note from practice:
Decisive for the use of an attachment are not only the horsepower of a tractor, but also the working speed, cutting height adjustment, working depth, etc.!
Thus, even a smaller tractor at low driving speed operate a larger attachment.
If you have any questions, we are at your disposal.

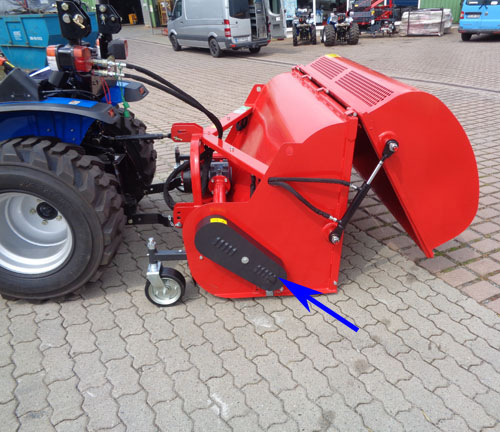

3 V-belts

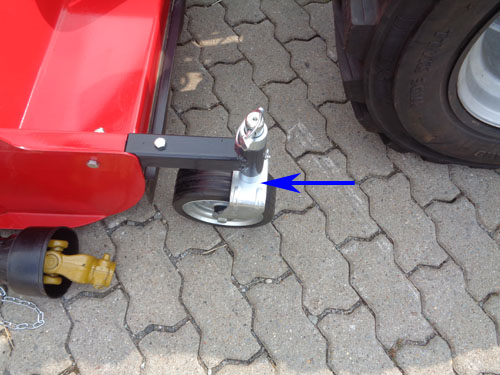

2-way height-adjustable
WATCH OUT!
Please shorten the PTO shaft to the appropriate length.
