Potato harvester harvester HKR jigger screen vibrating screen harvester including cardan shaft for tractors

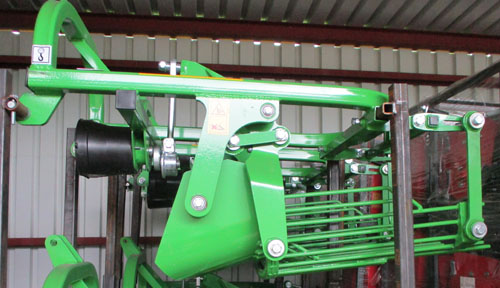

The HKR is currently available in the color green!

The tractor should have a rear three-point hitch KATI and a standard PTO 1 3/8 540rpm clockwise.

This is a 1-row Potato harvester. The width of the blade is 48 cm. The rear discharge is adjustable in height via a crank.

The moving parts are equipped with dirt-free ball joints and thus very durable.

The vibrating rod is driven by the cardan shaft. With ball heads are particularly important joints hardwearing.

We guarantee a serious carrying out. You have a full right of return.

Specification
• 1-row blade
• Width of the blade: 48 cm
• width of device: 90 cm
• Length of device: 130 cm
• Bolt diameter: 22 mm
• Two adjustable and removable solid rubber wheels
• Track width adjustable from 50 to 70 cm
• rear discharge continuously adjustable in height
• dirt-free ball joints on the moving parts
• Weight: 120 kg
• including cardan shaft

ATTENTION!
Please shorten the PTO shaft to required length.
