Potato planting machine KL1 Potato planter Potato Potato planting machine for small tractors

Potato planting machine / potato planting machine KL1
for tractors with KATI

This automatic potato planter fits tractors with a rear three-point linkage KAT1.

This special machine for planting potatoes enables the tubers to be transplanted easily. A good cover of potatoes is important in order to keep the number of green tubers in the crop as low as possible.
A furrow is drawn through the coulter on the loose field and the so-called nut tuber is placed in this at regular intervals. A dam is then formed over the potato. The planting distance and the planting depth are adjustable.

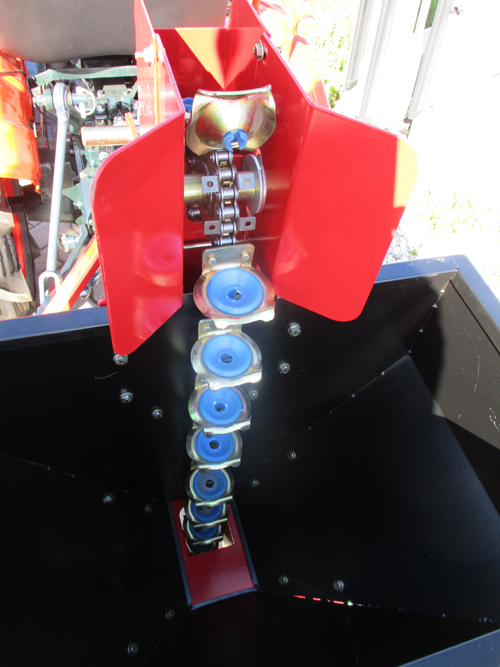

In this fully automatic planting machine, the tubers are removed from a storage container using a scoop device (scoop chain or cup belt) and then placed in the furrow.

The planting depth is 60-120 mm.

We guarantee a serious transaction - you have a full right of return.

Technical specifications

• for rear three-point hitch KAT1
• 60-120 mm planting depth
• Plant container for 25 kg of potatoes
• approx. 100 kg weight

Advice from practice:

Decisive for the use of an attachment are not only the number of horsepower of a tractor, but also the working speed, cutting height setting, working depth, etc.!

This means that even a smaller tractor can operate a larger attachment at low driving speeds.

We are of course happy to answer any questions you may have.

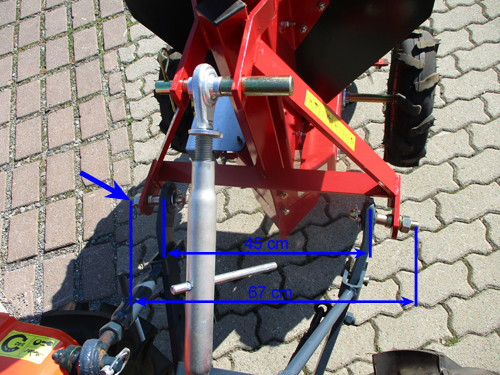

Bolt Ø 22 mm

The bolts can be turned.

infinitely adjustable

tire center 67 cm or adjustable to 72 cm
