Rotary mower SM180 Mulcher with 3 mulching blades for tractors

Since 2004 We are selling this product without any significant problems.

Grass, forest meadows, horse meadows are mowed without problems.

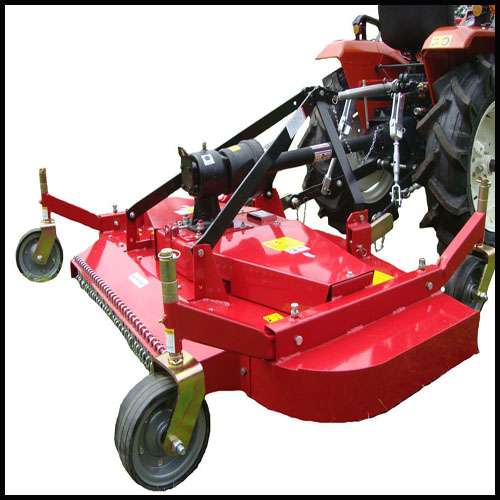

The tractor should have a rear three-point hitch KATI or KATII and a standard PTO 540rpm clockwise.

The lower linkage holder can be adjusted 1 x at 55 cm or 74 cm by turning them.

The blades are screwed with 2 screws on the cutter shaft. The blades are made very solid.

The material thickness is 6 mm - a normal lawn mower blade is only 4 mm thick.

Due to the 3 knives/blades a very clean cut is achieved and the grass is particularly finely chopped.

The blades are held by a large nut - with a stone impactthe blade can rotate / slipping, so the blade shaft and blade is protected.

The crop is cut into pieces and thrown out by the rear ejector.

Ideal for recut and meadow mowing.

The technical highlight is the very generously sized ejection chute. With a cutting width of 180cm the chute is 105cm wide so the crop can be passed outside immediately without any risk of blockage.

I.e. You can mow your lawn at a higher speed.

A proven product at a fair price!

The PTO is included.

We guarantee a serious carrying out. You have a full right of return.


Specification
• 180 cm working width
• 3 blade rear ejection
• 105 cm width of the chute
• 280 kg weight

Measure center to center 55 cm and bolt diameter 22 cm
If the lower linkage bracket been rotated, the distance center to center is: 74 cm





working width and width of the chute



The swiveling wheels are greasable. By means of the intermediate pieces you can adjust the cutting height.

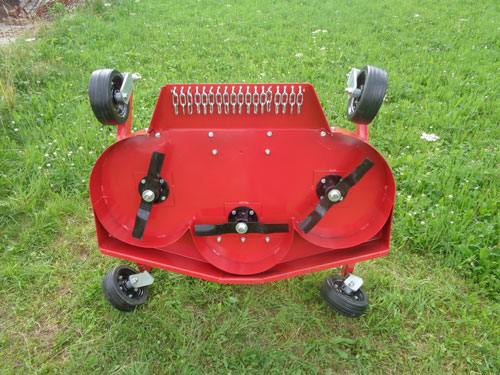

3 mulching blades



The power transmission to the blades is via belt. With rocks or other obstacles the blade shaft with the fan belt disc slips - so the mower works almost wear-free.



With manual including parts list and attached safty stickers on the unit!

ATTENTION!
Please shorten the PTO shaft to required length.
