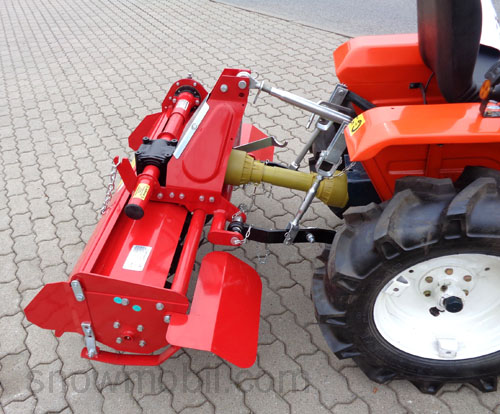

This rotary hoe / tiller we are selling since 2005. So we know all the pros and cons.
The rotary tiller can be attached to any small tractor.
The tractor should have a rear three-point linkage and KATI a standard PTO 540rpm. clockwise
The PTO is included.
The rotary hoe is equipped with the option of a manual sideways mover. You can move the rear rotary hoe sideway up to 14 cm. The drive of the blade shaft happens via a oil bath lubricated shaft. The bearings of the blade shaft are always lubricateable from the outside. The rotary hoe is pre-assembled, it only need oil in the transmission and the shaft box.
The device corresponds the current CE regulations, including attached safety sticker.
We guarantee a serious carrying out. You have a full right of return.
Specification:
- 115 cm working width
- number of blades: 24x
- working width - tiller tooth to tiller tooth: 108 cm
- hoe / tiller box internal dimension: 115 cm
- clearance external dimensions without savety bar: 125 cm
- 1900 - 2400 m² / h
- from 15 ps tractor power
- dimensions (LxWxH) 1350 x 800 x 750 mm
- 215 kg weight
- including PTO
ATTENTION!
Please shorten the PTO shaft to required length.

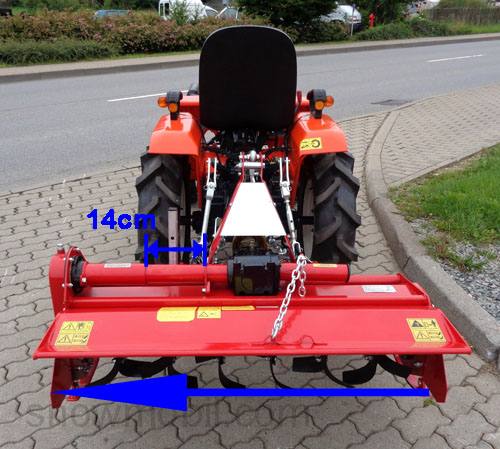

The tiller can be moved 14cm laterally.

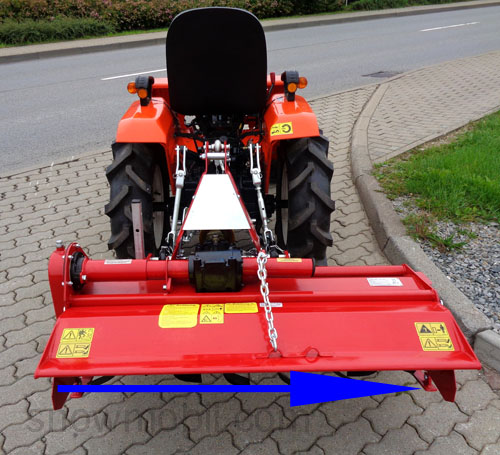

fully extended to the right
fully extended to the left

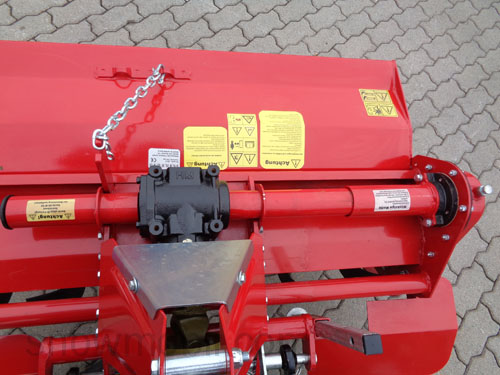

Here you can see the clamping brackets to move the tiller.
While the tensioning straps are loosened, the tiller is moved by hand. Then it must be screwed again!

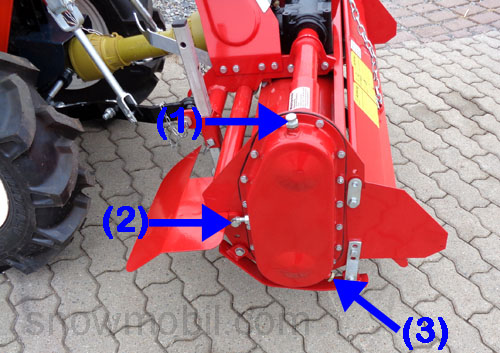

(1) oil filler
(2) chain tensioner
(3) oil drain plug

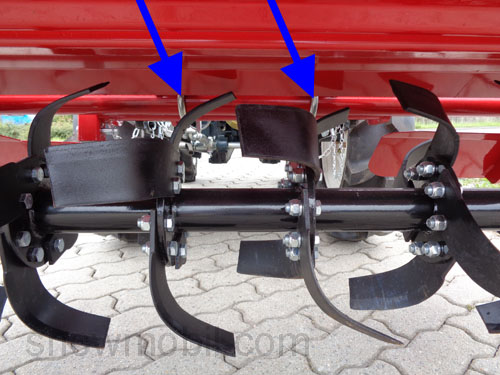

Blade shaft greasable

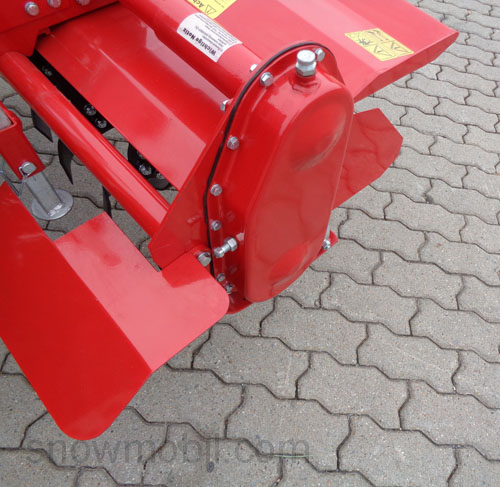

The skids can be adjusted 3x in height

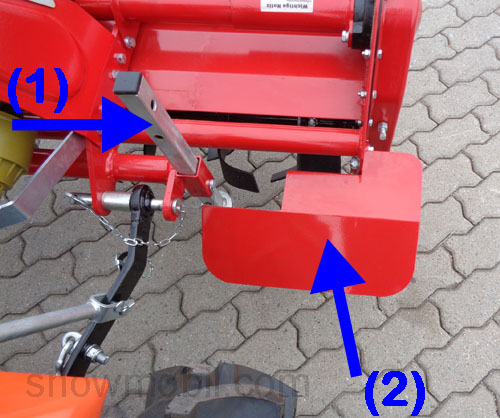

(1) parking stand
(2) CE protection cover

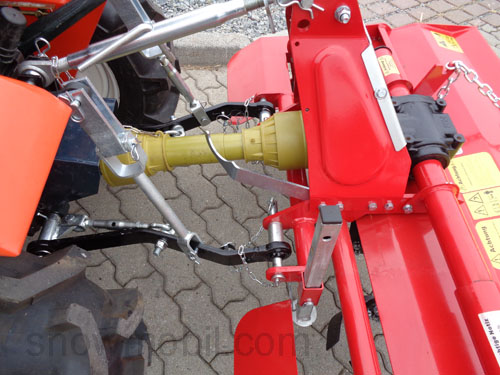

Top link bracket

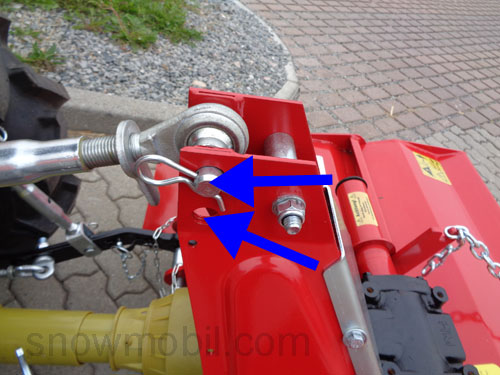

Double bore for better adjusting the tiller
