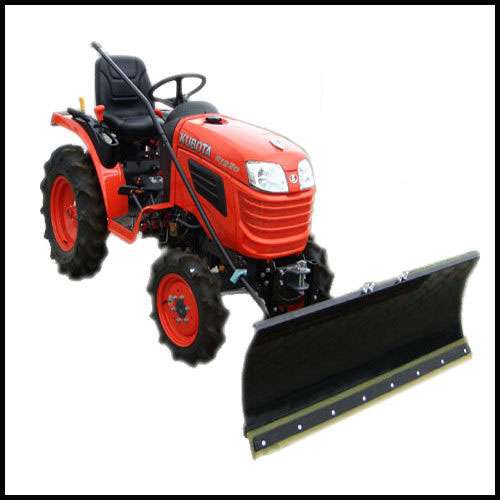

Snow plow 118cm for small tractor tractor Kubota B1220 / B1620 / B1820 / B1121 / B1161 / B1181

The rubber strake for the snow plow made of Vulkolan is included.

Pivoting the snow plow by means of  plug bolts. The lifting of the snow plow is done manually by a hand lever.

The mounting frame is steplessly shiftable and thus can be retrofitted to any tractor frame.

Specification
• 118 cm working width
• with vulkolan strip
• laterally pivotable by plug bolts
• infinitely movable mounting frame

lifting rod


Manual operator to pivot the snow shield.



Here you can see the locking pin to disconnect the snow shield.



The mounting frame is movable in height (1) and width (2) .
Thus, the snow plow can be used with any size of tractor tires.



Four springs keep the snow plow blade.

If you drive into an obstacle, the shield folds away forward.

The snow plow is specially equipped with 4 springs so it can be adjusted a bit harder and not folds away too fast as with 2 springs.

Through the threaded bolts on the springs you can adjust the tilt function infinitely variable.



(1)Infinitely adjustable sliding skid.

(2) in addition to reinforcing angle iron welded on!



Vulkollan strip is 118 cm wide and 10 mm thick.
