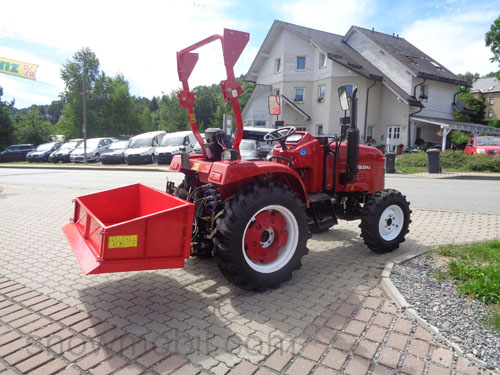

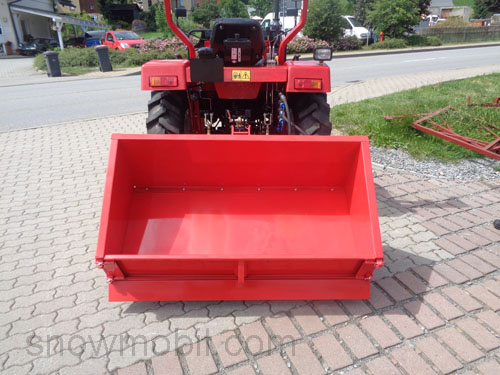

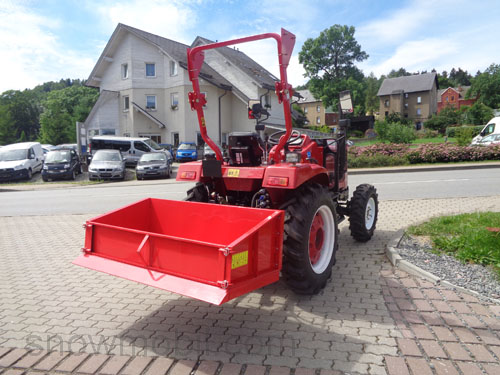

Rear-transport skip TM210H for tractors
The thickness of the sheet metal side panels is 2 mm. The side panels are connected with screws M8er.

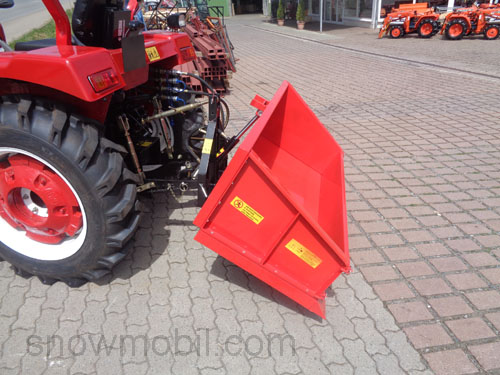

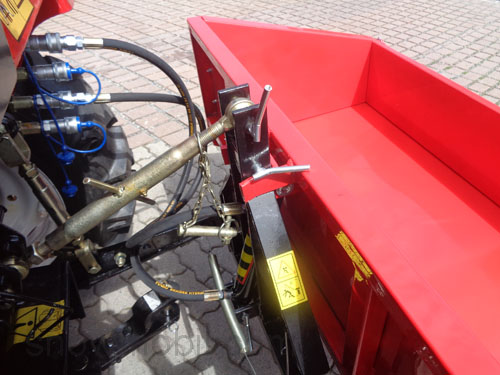

The rear trough may be opened upward or downwards. On the side of the tailgate hooks are attached so that the side plates are stable under heavy load.

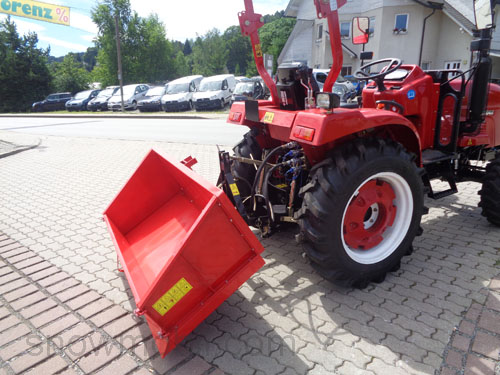

Suitable for KATI. From the tractor the trough can be tilted.

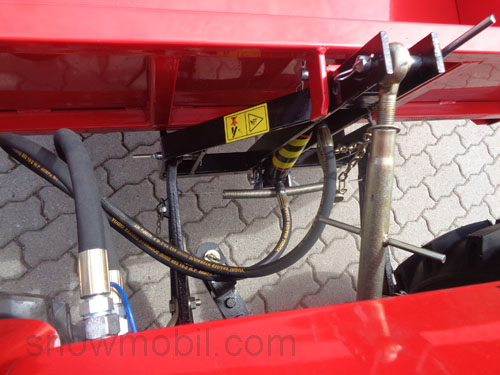

In the frame is installed a hydraulic double-acting lifting cylinder.

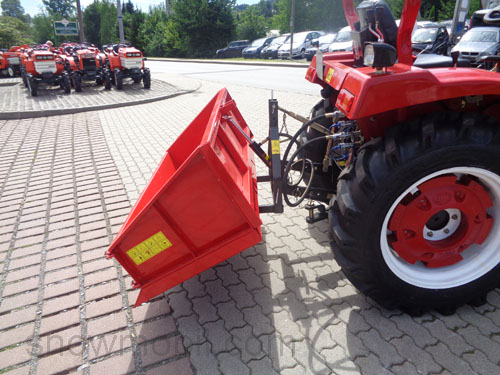

Thus, you can easily tilt and lift the rear tray from the seat.
The rear trough is red. A scraper bar comes as standard.

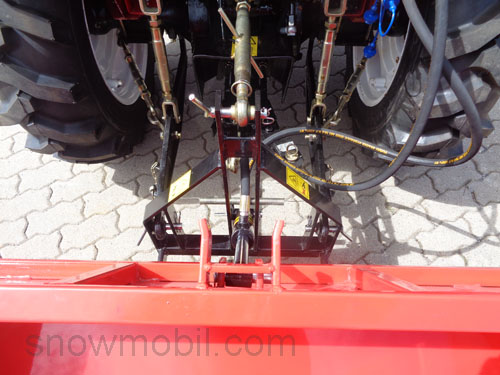

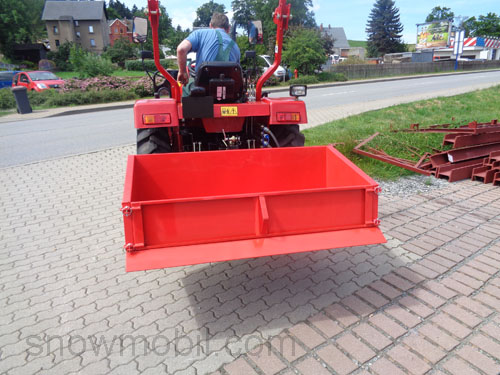

The rear trough is mounted on a stable support frame.

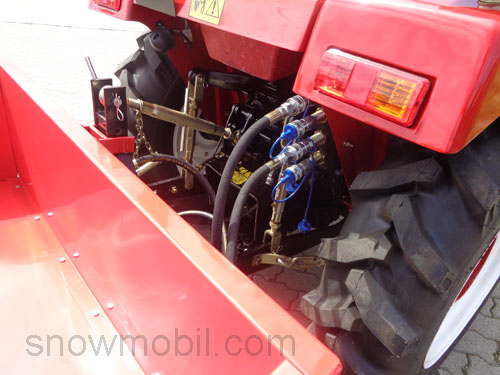

The hydraulic hoses and the hydraulic cylinder are included.
An additional control block costs 500.00 euros (if no rear hydraulics are installed on the tractor).
The transport trough will be delivered disassembled - you only need to screw together the trough.
Easy adjustments you need to make yourself.
Small scratches can not be excluded due to of the packaging or transport. But that is no reason for complaint. The functionality is not affected.
We guarantee a serious carrying out. You have a full right of return.
Specification
• Box dimensions inside: 201 x 66 cm
• Box dimensions outside: 210 x 82 cm
• Box Height: front 27 cm - back 46 cm
• Carrier: 73 cm
• Bolt diameter: 20 mm
• Weight: 170 kg
• hydraulically tiltable

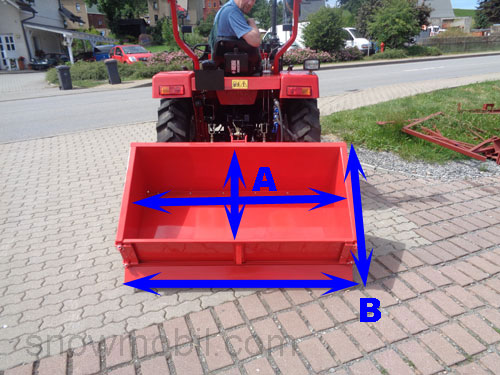

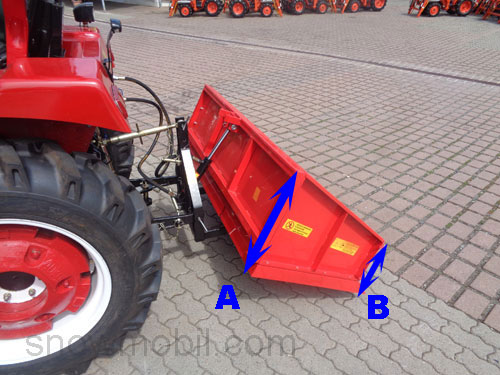

A: Box dimensions inside: 201 x 66 cm
B: Box dimensions outside: 210 x 82 cm
Box Height A: 46cm and B: 27cm
Carrier / Intake 73 cm
Hydraulic
