HB15S with side shift suitable for small tractors
This is a very solid Backhoe - the material has not been saved. These excavators we sell since 2008.
The backhoe for tractors may be assembled to each tractor.
Excavator with manual side shift, three-point excavators are for private and professional use.
Important!!! Each of our rear dredges has a three-point stiffener (standard)!
The rear dredges is thus firmly connected to the tractor.
This means that lifting and lowering with the rear three-point lifting is no longer possible.
Due to the dead weight of the raer dredger and with the wide reach to the rear, damage to the hydraulics would occur (bent sub-brakes of broken-out upper streering brackets, etc.).
The three-point stiffening makes the excavator and the tractor a compact unit.
Thus, vibrations, wobbling, and distortions are excluded.
The excavator is stable on its hydraulically extendable supports.
The backhoe is designed for the rear three-point hitch and KATI.
Specifications
- Shovel / bucket length: 31 cm
- Shovel width inside/Panel width: 30 cm
- Shovel arm Total length: 245 cm

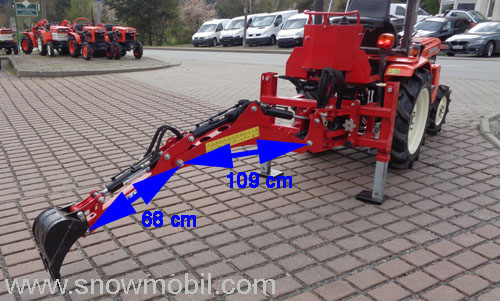

- Sideshift 1,10m
- Drive of the digger is via the tractor PTO
- Dimensions in transport position (HxWxL): 1600 x 950 x 1700 mm
- max. Working depth: 95 cm
- max. Working radius: 244cm
- max. Lifting height: 228 cm
- Rotation angle: 180 °
- Bucket angle: 203 ° opening angle
- Bucket capacity: 0.01 m3
- Shovel power: 1500 kg
- Weight: 270 kg
- Pump capacity: 40 liters per minute
- Clear dimension of the metal transport box LxWxH 120 x 90 x 150 cm
ATTENTION!
Please shorten the PTO shaft to required length.
We guarantee a serious carrying out. You have a full right of return.
Important NOTE!!! Intermediate bolt and holder draf be no game!
sideshift 1,10m
Due to the absolutely stable processing we offer lifetime warranty against bending of the excavator arms. In case of damage we will send free the relevant arm.
External dimension framework 1,10m
The excavator arm can be moved by muscular force (adjusting screws open). The displacement distance is 1.10m.
Side shift is good if you need to dredging a trench right next to a house wall.
The adjusting screws must be tightened by hand.
The drive of the digger is via the PTO shaft of the tractor. This rear actor has an internal oil circuit with oil tank and PTO pump.
The PTO pump is driven by the supplied PTO shaft.
The oil in the storage tank is not filled because such large amounts of oil are not allowed to remain in the machine during transport, for environmental reasons.
Depending on the backhoe type you have to refill about 25 liters standard hydraulic oil 46S.
The PTO pump is connected directly to the tractor.
A: 244cm B: 81cm C: 228cm
locking of the excavator arm
The following buckets/shovels are available:
Three buckets are optionally available for the backhoe HB15S. These have the same shape and differ only in the width and the number of digger teeth.
1. basic form
This is the standard bucket.
This is fitted as standard on the excavator.
2. optional types
Image 1: 3 digger teeth - 299 EUR
( This is the standard bucket.
This is fitted as standard on the excavator. )
Image 2: 4 digger teeth - 350 EUR
Image 3: grave spoon - 410 EUR
| Image |
Number of teeth |
bucket width B |
bucket capacity |
| 1 |
3 |
30 cm |
0,017 m3 |
| 2 |
4 |
40 cm |
0,022 m3 |
| 3 |
without |
60 cm |
0,040 m3 |
