excavator / earthmover/ digger backhoe HB20, rear actor incl. excavator thumb for tractor three-point linkage

3.600,00 EUR 19 % VAT incl.

Shipping inside Germany: 150,00 EUR * * Shipping information

Shipping time: immediately available from stock, since we have several stores in the vicinity, we ask for tel. Pre-registration for pick-up

2 years warranty + 1 year MGF parts warranty!

Item is temporarily not available!

Due to the absolutely stable processing we offer lifetime warranty against bending of the excavator arms. In case of damage we will send free the relevant arm.

The backhoe for tractors may be assembled to each tractor. Three-point excavators are for private and professional use.

This is a very solid Backhoe - the material has not been saved. These excavators we sell since 2008.

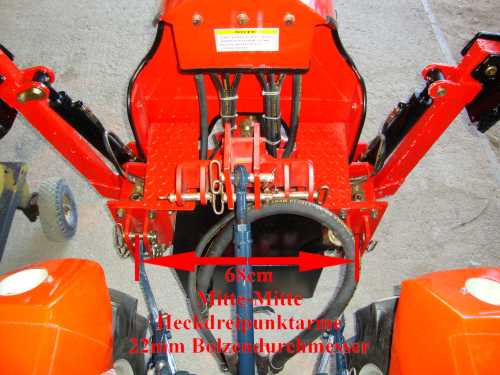

The backhoe is designed for the rear three-point hitch and KATI.

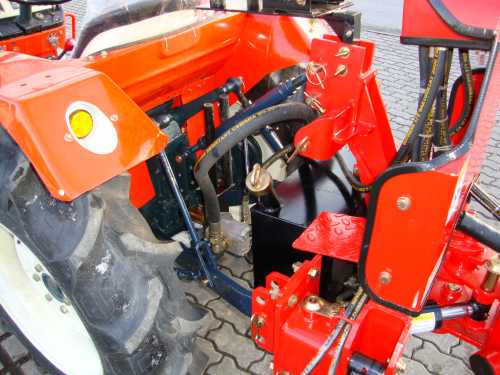

This rear actor has an internal oil circuit with oil tank and PTO pump.

The oil in the storage tank is not filled because such large amounts of oil are not allowed to remain in the machine during transport, for environmental reasons.

Depending on the backhoe type you have to refill 5-10 liters standard hydraulic oil 46S.

The drive tractor should have a minimum weight of 700 - 800 kg, because the rear actor is already 450 kg heavy itself. Otherwise, the weight ratio is wrong.

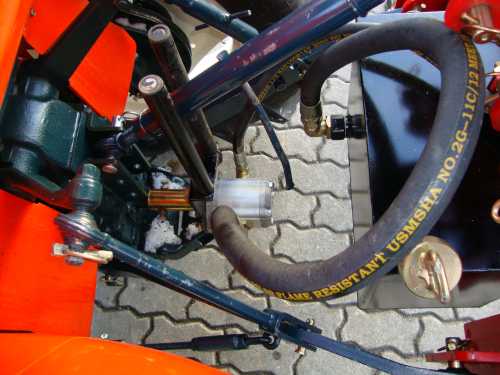

The PTO pump is connected directly to the tractor.

Specifications
    • Shovel / bucket length: 55 cm
    • Shovel width inside: 31 cm
    • Shovel arm Total length: 246 cm
    • Drive of the digger is via the tractor PTO pump

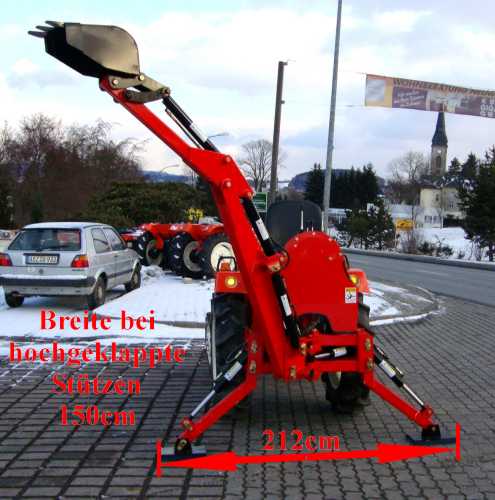

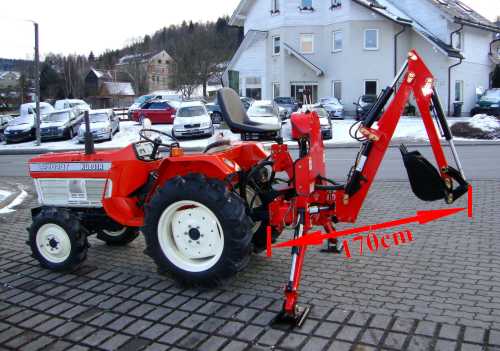

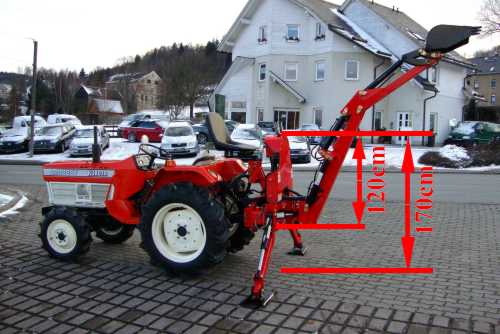

    • Dimensions in transport position (LxWxH): 1700 x 1500 x 1200 mm
    • max. Working depth: 185 cm

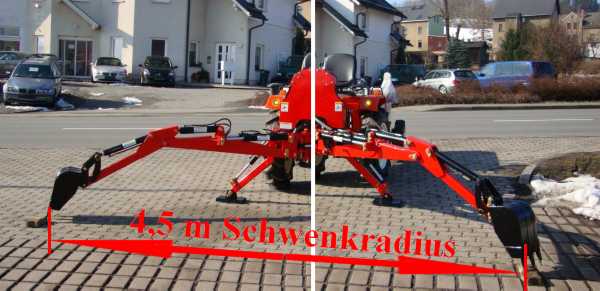

    • max. Working radius: 450cm
    • max. Lifting height: 220 cm
    • Rotation angle: 140 °
    • Bucket angle: 160 °
    • Bucket force / ripping force: 1500 kg
    • Bucket capacity: 0.020 m3
    • Lifting capacity: 290 kg
    • Weight: 450 kg

We guarantee a serious carrying out. You have a full right of return.

Video

We also offer a complete retrofit kit - a timber grab / Log gripper for attachment to the backhoe - an inexpensive alternative!

Due to the high quality you have 2 years warranty and 1 year additional MGF warranty for private use.
MGF / Motorgeräte Fritzsch Warranty: Includes the free provision of spare parts upon detection of a material defect in the 3rd year, excluded from the MGF warranty are wearing parts, the remuneration of labor and other expenses.

SUPPLIERS DECLARATION for components

We hereby declare that the product is designed for mounting in or on a machine.

The machine in which the above-mentioned part is to be installed, should not be put into operation until it was found that the machine complies with the requirements of the Machinery Directive.

Any damage arising therefrom is not chargeable by Motorgeräte Fritzsch GmbH. Motorgeräte Fritzsch GmbH disclaims any liability for damages, because we have no influence on installation, use and safety of the machine.

For Diesel Engines: As none of the major manufacturers give warranty / statutory warranty rights in the use of vegetable oil for diesel engines, we hereby join in this scheme.

⇒ Typing errors, misapprehensions and changes excepted.
