HB23S with side shift suitable for small tractors
This is a very solid Backhoe - the material has not been saved. These excavators we sell since 2008.
The backhoe for tractors may be assembled to each tractor. Excavator with side shift, three-point excavators are for private and professional use.
Important!!! Each of our rear dredges has a three-point stiffener (standard)!
The rear dredges is thus firmly connected to the tractor. This means that lifting and lowering with the rear three-point lifting is no longer possible.
Due to the dead weight of the raer dredger and with the wide reach to the rear, damage to the hydraulics would occur (bent sub-brakes of broken-out upper streering brackets, etc.).
The three-point stiffening makes the excavator and the tractor a compact unit.
Thus, vibrations, wobbling, and distortions are excluded.
The excavator is stable on its hydraulically extendable supports.
The backhoe is designed for the rear three-point hitch and KATI KATII.
Specifications
- Shovel / bucket length: 60 cm
- Shovel width/Panel width: 30 cm
- Shovel Total length: 40 cm
- Sideshift 1,29m
- Drive of the digger is via the tractor PTO
- Dimensions in transport position (HxWxL): 1600 x 1370 x 1700 mm
- max. Working depth: 175 cm
- max. Working radius: 260cm
- max. Lifting height: 312 cm
- Rotation angle: 180 °
- Bucket angle: 203 ° opening angle
- Bucket capacity: 0.01 m3
- Shovel power: 1500 kg
- Weight: 625 kg
- Pump capacity: 40 liters per minute
- Clear dimension of the metal transport box LxWxH 140 x 110 x 160 cm
ATTENTION!

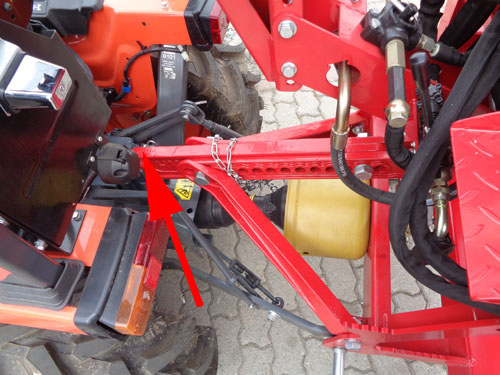

Please shorten the PTO shaft to required length.
Important Note!!! There must be no play between the bold and the holder.
sideshift 1,29m
Due to the absolutely stable processing we offer lifetime warranty against bending of the excavator arms. In case of damage we will send free the relevant arm.
External dimension stabilizer foot to foot support 1,37m
External dimension framework 1,30m

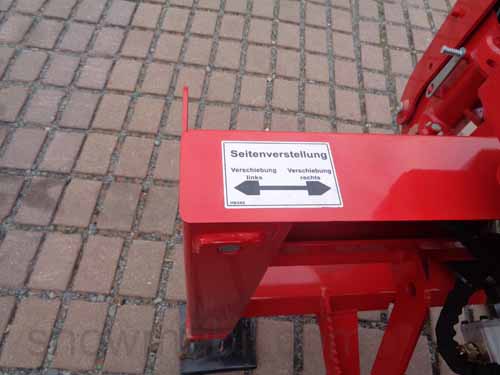

The excavator arm can be hydraulically side-shifted 1,29m.
Side shift is good if you need to dredging a trench right next to a house wall.
The drive of the digger is via the PTO shaft of the tractor. This rear actor has an internal oil circuit with oil tank and PTO pump.
The PTO pump is driven by the supplied PTO shaft.
The oil in the storage tank is not filled because such large amounts of oil are not allowed to remain in the machine during transport, for environmental reasons.
Depending on the backhoe type you have to refill about 25 liters standard hydraulic oil 46S.
The PTO pump is connected directly to the tractor.
Specifications
- Shovel / bucket length: 60 cm
- Shovel width/Panel width: 30 cm
- Shovel Total length: 40 cm
- Sideshift 1,29m
- Drive of the digger is via the tractor PTO
- Dimensions in transport position (HxWxL): 1600 x 1370 x 1700 mm
- max. Working depth: 175 cm
- max. Working radius: 260cm
- max. Lifting height: 312 cm
- Rotation angle: 180 °
- Bucket angle: 203 ° opening angle
- Bucket capacity: 0.01 m3
- Shovel power: 1500 kg
- Weight: 625 kg
- Pump capacity: 40 liters per minute
- Clear dimension of the metal transport box LxWxH 140 x 110 x 160 cm
ATTENTION!
Please shorten the PTO shaft to required length.

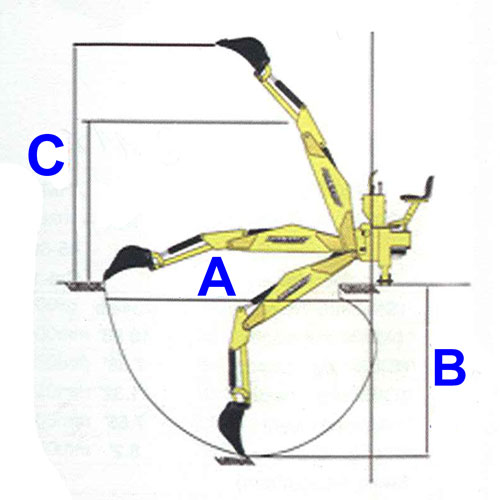

A: 260cm B: 175cm C: 312cm
The locating bolts are screwed and can be rotated.
This is the standard blade with 3 tines. This is mounted on the excavator as standard.
2. Optionale Typen
Bild 1: 2 grave tines - 230 Euro
Bild 2: 3 grave tines - 299 Euro
Standard scoops - included as standard
Bild 3: 4 grave tines - 350 Euro
Bild 4: grave spoon - 470 Euro
Bild 5: grave spoon - 430 Euro
| Images |
Numer of Tines |
Panel width B |
Shovel volume |
| 1 |
2 |
26 cm |
0,014 m3 |
| 2 |
3 |
30 cm |
0,017 m3 |
| 3 |
4 |
40 cm |
0,022 m3 |
| 4 |
without |
90 cm |
0,061 m3 |
| 5 |
without |
70 cm |
0,045 m3 |
We guarantee a serious carrying out. You have a full right of return.
We also offer a complete retrofit kit - a wooden gripper / loading tongs for attaching to the rear dredger - an inexpensive alternative.
