Rear digger, Backhoe HB24S with side shift,
log gripper and digger bucket
suitable for small tractors
This is a complete package consisting of a very solid backhoe HB24S fully assembled with 3-tooth bucket and a log gripper with rotator for the backhoe. All hydraulic hoses and control valve are installed and fully functional.
Also fits our backhoe excavators HB15, HB15S, HB20, HB22S, HB23S, HB24S, HB25S - an inexpensive alternative !!!
The backhoe for tractors may be assembled to each tractor. Excavator with side shift, three-point excavators are for private and professional use.
The backhoe is designed for the rear three-point hitch and KATI KATII.
The drive of the digger is via the PTO shaft of the tractor. This rear actor has an internal oil circuit with oil tank and PTO pump.
The PTO pump is driven by the supplied PTO shaft.
The drive tractor should have a minimum weight of 1000 kg, because the rear actor is already 600 kg heavy itself. Otherwise, the weight ratio is wrong.
The oil in the storage tank is not filled because such large amounts of oil are not allowed to remain in the machine during transport, for environmental reasons.
Depending on the backhoe type you have to refill about 25 liters standard hydraulic oil 46S.
We guarantee a serious carrying out. You have a full right of return.

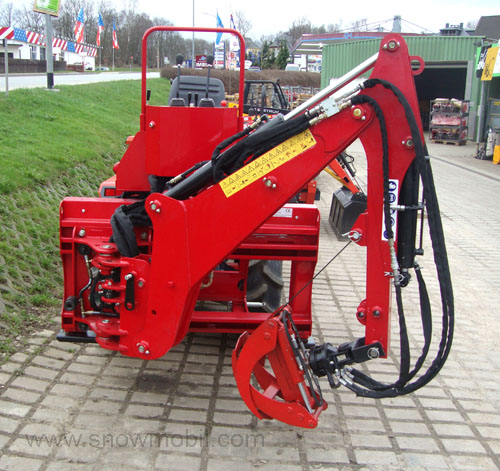

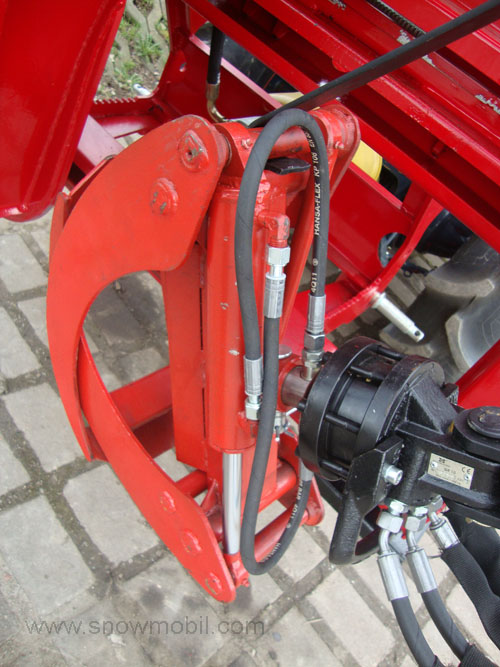

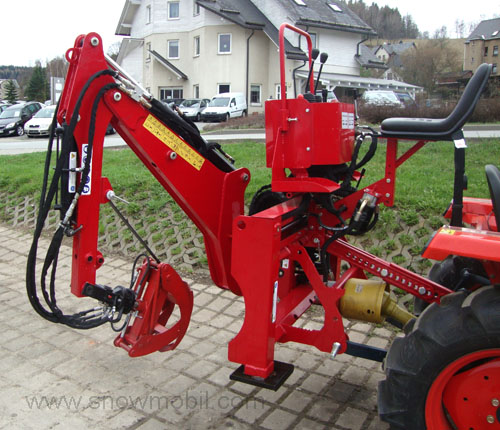

Backhoe HB24S with log grapple:

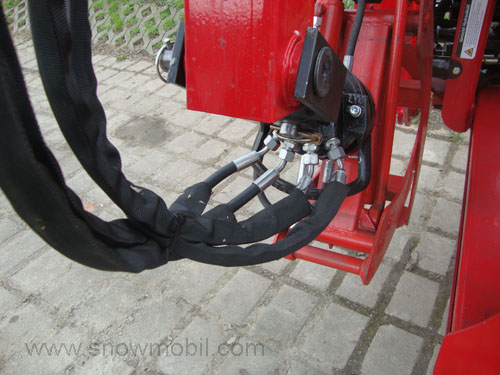

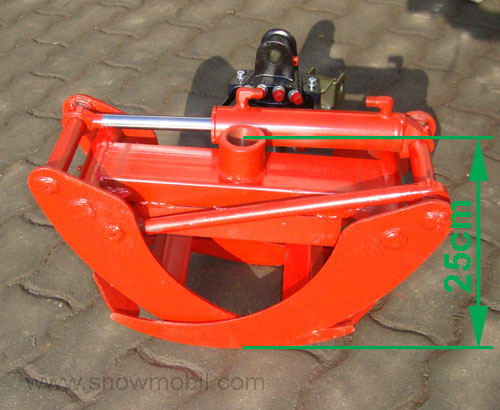

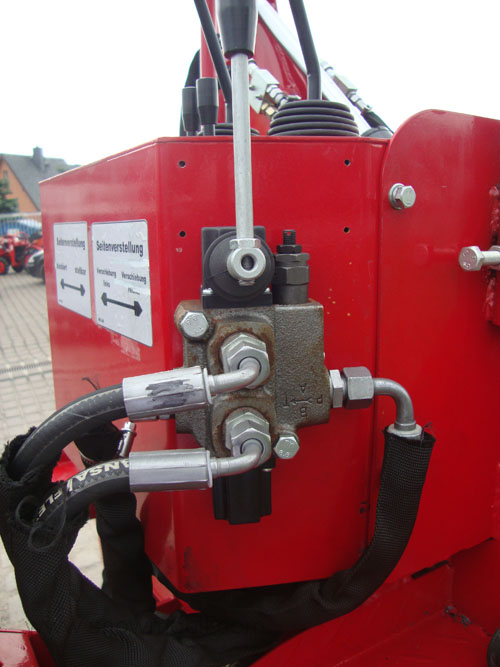

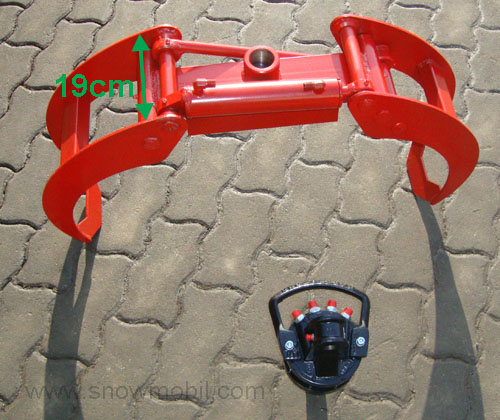

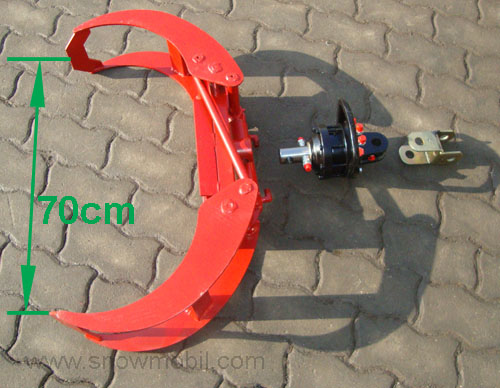

Log gripper/log grapple complete package - rotator, tongs, holder, control valve and hoses for installation
The loading tongs has a net weight of 22 kg.

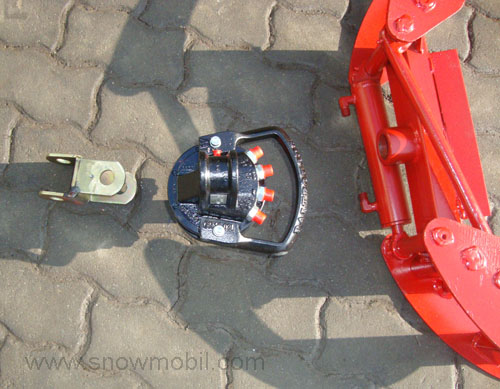

Specifications - Rotator
- Rotation: 360°
- max. statically axial load: 10 KN / 2250 lbf
- max. dynamic axial load: 5 KN / 1125 lbf
- Torque at 25 MPa (3625psi): 450 Nm
- Required oil flow: 10 l/min
- Opening width: till 70 cm
- max. load capacity: 1000 kg
- Net weight: 10 kg
ATTENTION!
Please shorten the PTO shaft to required length.
log grapple in action:

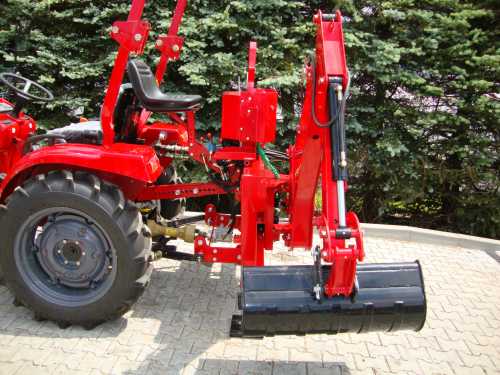

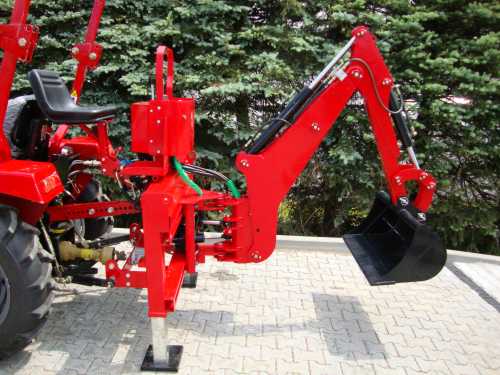

Backhoe HB24S with 3tooth excavator bucket:
Specifications
- Shovel / bucket length: 60 cm
- Shovel width inside/Panel width: 30 cm
- Shovel arm Total length: 290 cm
- Drive of the digger is via the tractor PTO
- Dimensions in transport position (LxWxH): 1400 x 1000 x 1700 mm
- max. Working depth: 195 cm
- max. Working radius: 280cm
- max. Lifting height: 317 cm
- Rotation angle: 180 °
- Bucket angle: 160 °
- Bucket capacity: 0.028 m3
- Shovel power: 1500 kg
- Weight: 670 kg
- Pump capacity: 40 liters per minute
A: 290cm B: 195cm C: 317cm
side shift is good if you need to dredging a trench right next to a house wall.
The PTO pump is connected directly to the tractor.
Sorry, the PTO protection, we have omitted it for clarity in photographs - but it is standard included.
The following buckets/shovels are available:
Three buckets are optionally available for the backhoe HB24S. These have the same shape and differ only in the width and the number of digger teeth.
1. basic form
This is the standard bucket.
It is fitted as standard on the excavator.
2. optional types
Image 1: 2 teeth digger - 230 EUR
Image 2: 3 teeth digger - 299 EUR
Image 3: 4 teeth digger - 350 EUR
Image 4: 5 theeth digger - 400 Euro
Image 5: digger shovel - 450 EUR
Image 6: digger shovel - 400 EUR
| Image |
Number of tines
|
Panel width |
shovel volume |
| 1 |
2 |
26 cm |
0,014 m3 |
| 2 |
3 |
30 cm |
0,017 m3 |
| 3 |
4 |
40 cm |
0,022 m3 |
| 4 |
5 |
50 cm |
0,028m3 |
| 5 |
without |
90 cm
|
0,061 m3
|
| 6 |
without |
70 cm |
0,045 m3
|
