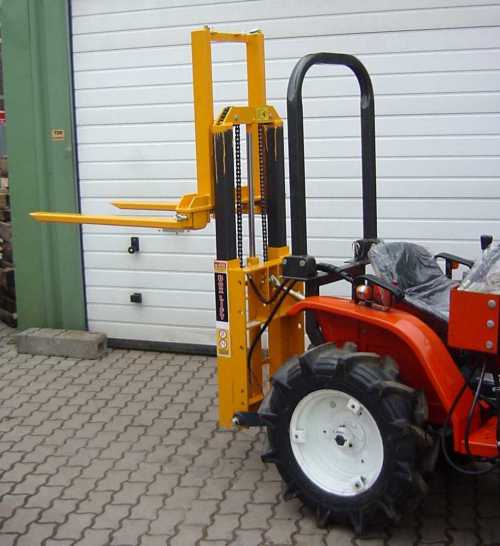

fork-lift truck stacker FL1000 forklift pallet forks for Rear stacker for small tractor tractors

The payload is 1000 kg.

The weight of the rear forklift is 320 kg.

The max. Lifting height is 230 cm.

By default, a set of hoses with quick connect couplings is included, but no control valve.

The inclination cylinder is also included. The inclination angle is 12 ° max.

The loading forks are foldable and adjustable. The cylinder is double acting with lowering throttle.

The following accessories are at extra charge:

• Side shift with hydraulic cylinders including connecting hoses and quick coupling for 620,00 euros
• Controller with two levers including connecting hoses and quick coupling for 399,00 euros

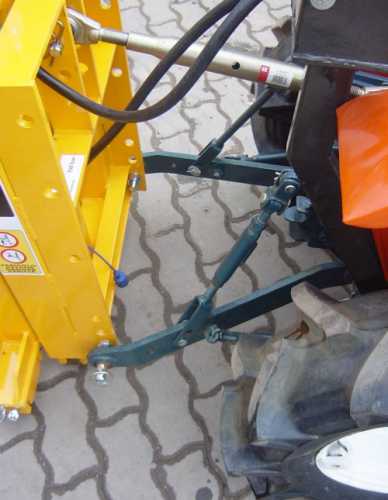

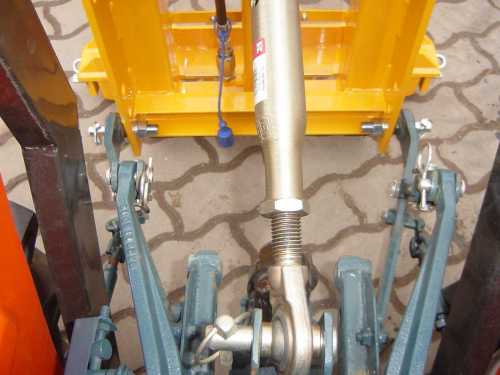

The rear stacker is designed for the rear three-point hitch KATI.

Specifications

• max. Lifting height: 230 cm
• max. Payload: 1000 kg
• Net weight: 320 kg
• Length of the pallet forks: 100 cm
• Pallet forks are adjustable 2x
• With connection hoses included (but not a control valve)

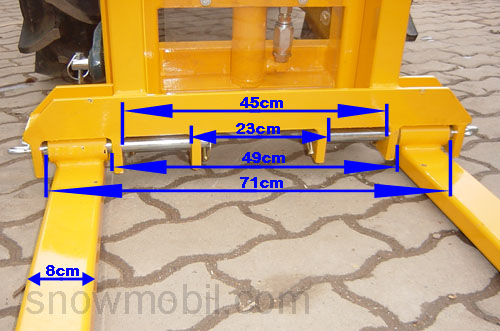

The pallet forks have a length of 100 cm and are adjustable 2x in width.

video of a similar device (Model FL180):

We guarantee a serious carrying out. You have a full right of return.
