The payload is 700 kg.
The weight of the Rear stacker is 170 kg.
The max. Lifting height is 180 cm.
By default, included a set of hoses with quick connect couplings here, but no control valve.
The loading forks are foldable and adjustable. The cylinder is double acting with lowering throttle.
The following accessories are at extra charge:
• side shift with hydraulic cylinders including connecting hoses and quick coupling for 825,00 euros
• Tilt cylinders with non-return valve with connection hoses and quick coupling for 450,00 euros
• Control unit with two levers including connecting hoses and quick coupling for 470,00 euros
• Control unit with three levers including connecting hoses and quick coupling for 570,00 euros

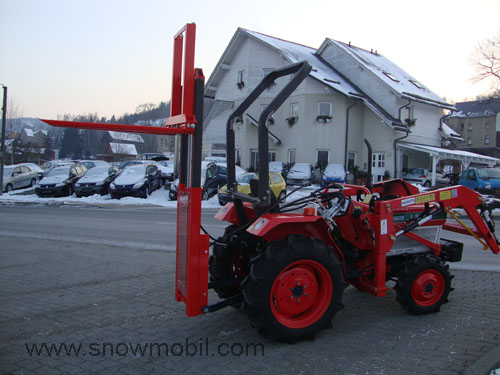

The rear stacker is designed for the rear three-point hitch KATI.
Specifications
• Max. Lifting height: 180 cm
• Max. Payload: 700 kg
• Net weight: 170 kg
• length of the pallet forks: 108 cm
• Pallet forks are adjustable 2x
• with connection hoses included (but not a control valve)

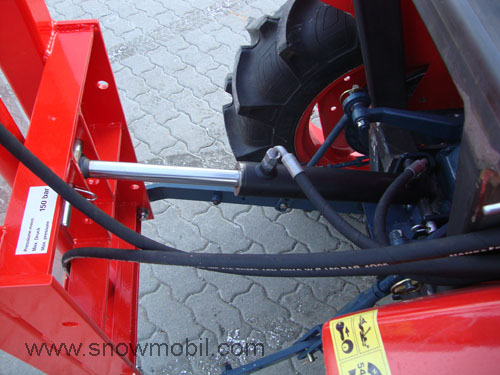

additional swivel cylinder
The pallet forks have a length of 108 cm and are adjustable 2x in width.

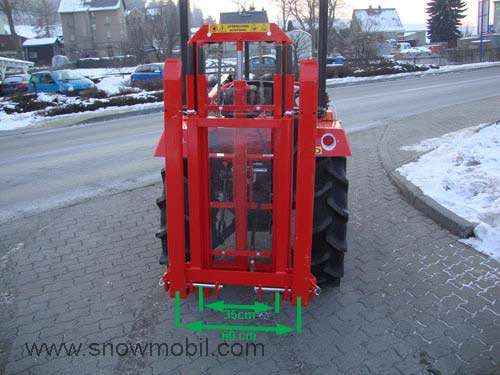

Width fork position = 60 cm
Narrow fork position = 35 cm

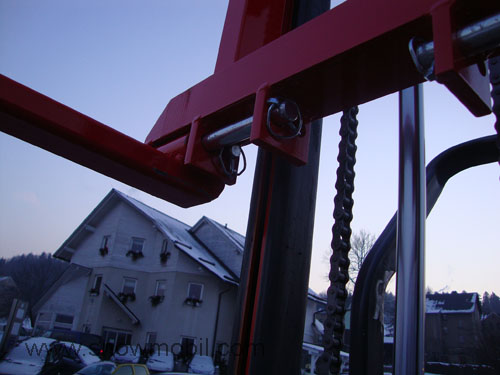

locking bolt
Measured at the lowest position of the rear three-point hitch

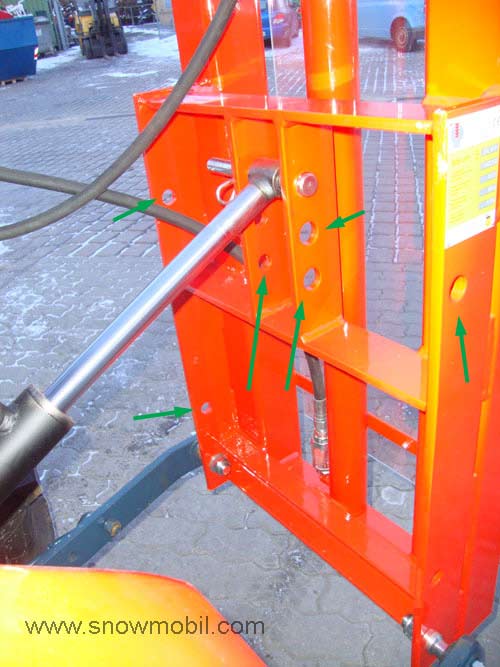

Additional mounting holes

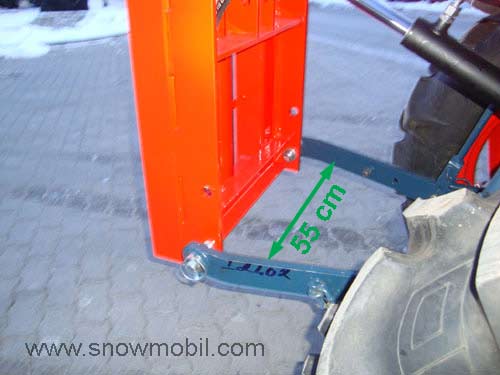

Light level center - center 55 cm
Bolt diameter 22 mm
We guarantee a serious carrying out. You have a full right of return.
