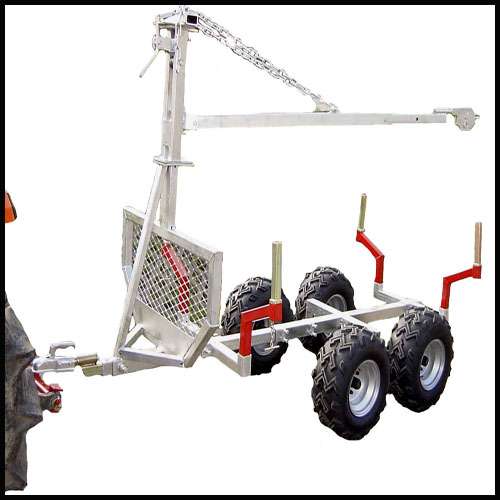

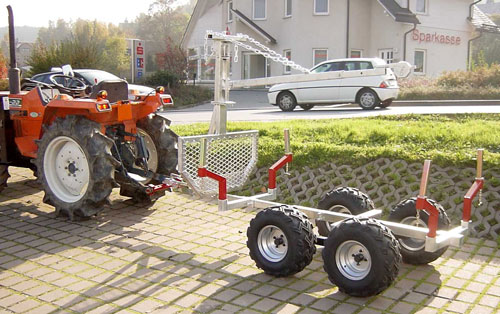

The crane shown is not included! The trailer is unassembled.

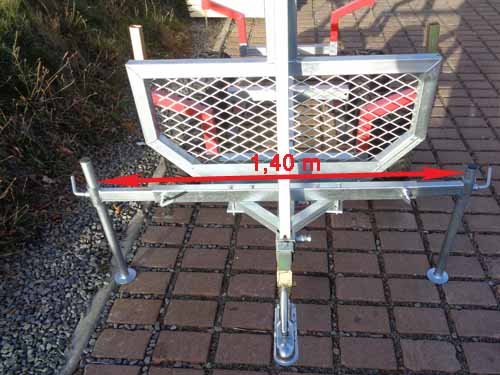

Standard with lateral support, thus the risk of tipping is substantially minimized:
This logging trailer is imported from Sweden. There it is usual to fetch the timber from the forest with Quad / small tractor or jeep.
The frame of the trailer is made of galvanized 4-square tubes. The side supports are made of this material too.

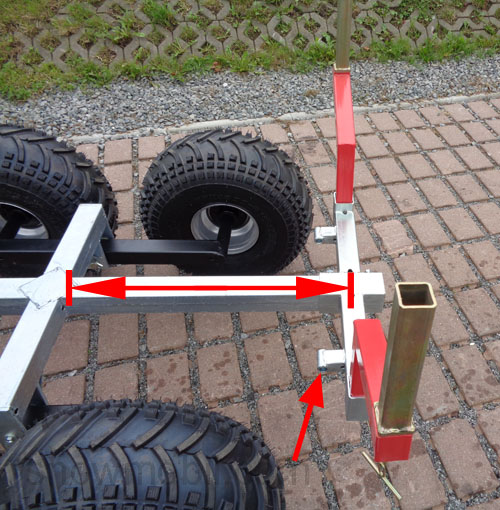

It is possible with little effort to increase the side arms (red 4-Square tubes), by putting a longer 4-Square-tube into the holder.
The payload should be no more than 750 kg if it is used on the road because the trailer is unbraked.
For use in non-road traffic, the payload is up to max. 1200 kg.
Pay attention to safety on the weight ratio between tractor and trailer or when used on inclines. Only the driver is responsible.

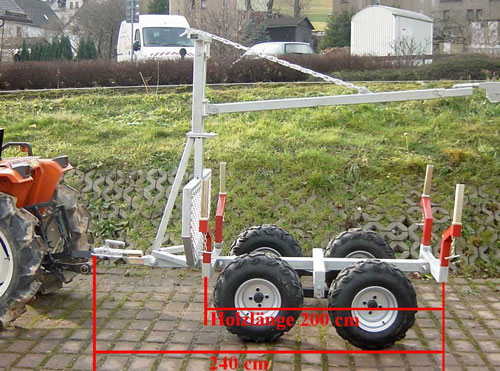

It has a length of 2.40 m and is extendible to 3.60 m. Please check the screws and tighten if necessary.

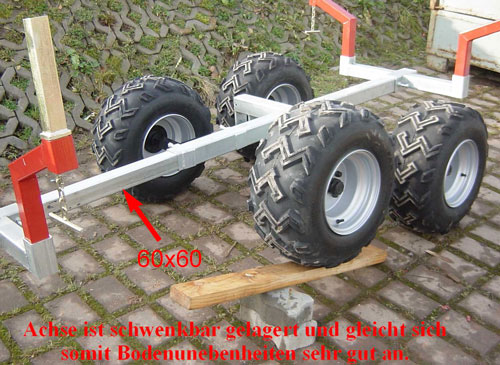

The four large ATV tires are movably mounted on the two axes, so they can adapt to any ground unevenness. The swing axle is greasable.
The trailer has no approval, TUV or similar. A street legal at 25km / h is possible for 680,00 euros. The freight costs for a fully assembled HR500 forestry trailer with road approval are 350.00 euros.

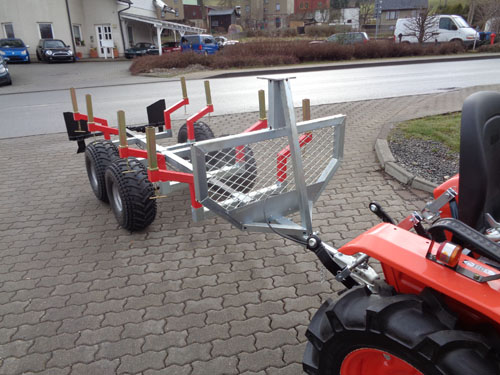

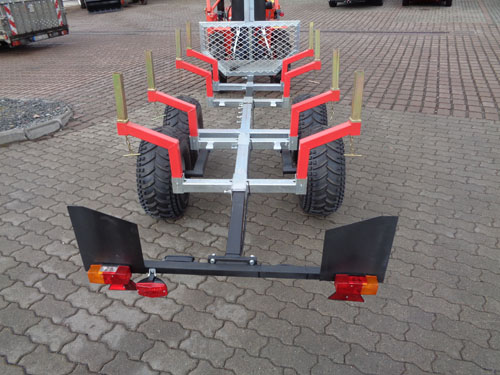

Here you can see the road traffic regulations conversion respectively 2 additional stakes mounted to transport short timber.
This is the current light bar (only in connection with a street legal).
Then the top speed is limited to 25 km / h.
The tire size is 22x12-8 with an outer diameter of 58 cm and a tire width of 25 cm.
We sell these trailers since 2006 in Germany.
We guarantee a serious carrying out. You have a full right of return.
Specification
- Frame and side holder/bracket 4--Square pipes
- max. Payload on the road - because unbraked: 750 kg
- max. Payload when using non-road traffic - without authorization: 1200 kg
- Net weight: 260 kg without crane
- Tires: 22x12-8 (with a diameter of 55 cm and a tire width of 25 cm)
- Dimensions (LxWxH): 2400 (extended 3600) x 1200 x 1800 mm
Power supply:
- secured socket on the tractor
- separate battery
completely pushed together

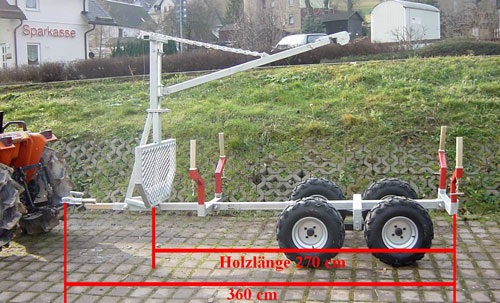

completely telescoped
Central pivot greasable

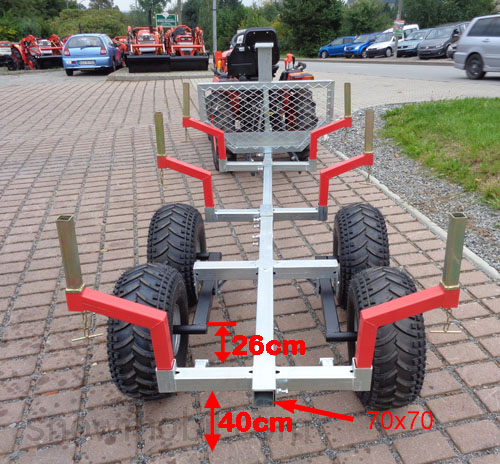

26 cm ground clearance of the axis
40 cm ground clearance of the frame

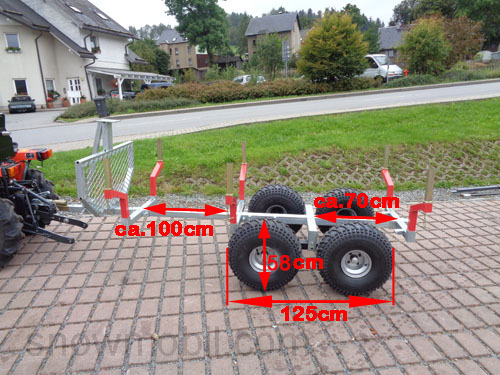

front 100 cm displaceable
rear 70 cm displaceable
60cm wheel diameter

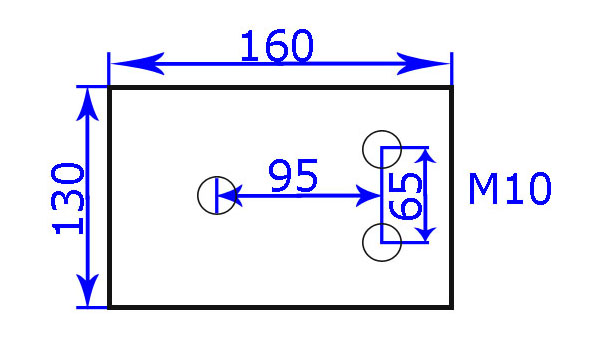

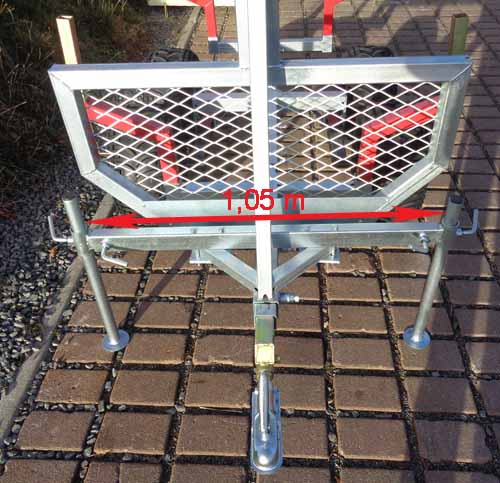

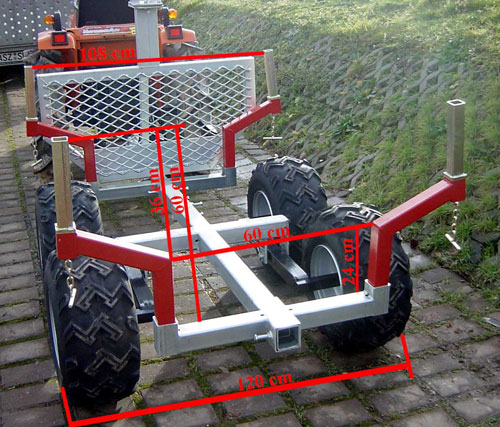

Dimensions of the mounting plate for the crane
Currently this logging trailer is supplied with this tire profile.

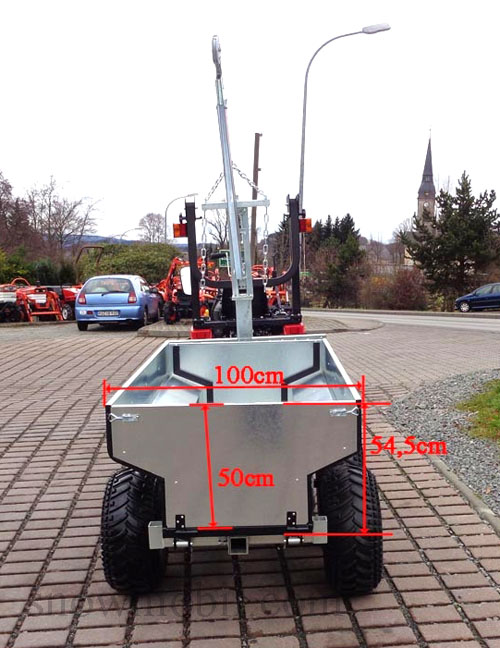

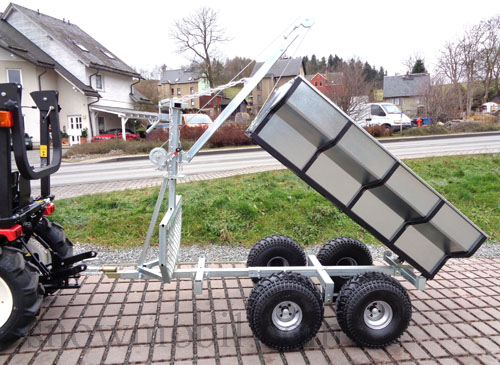

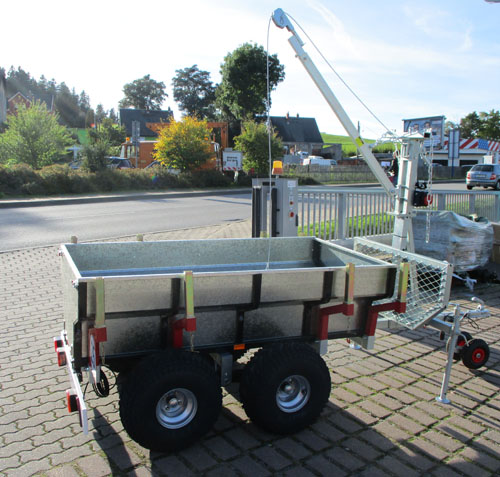

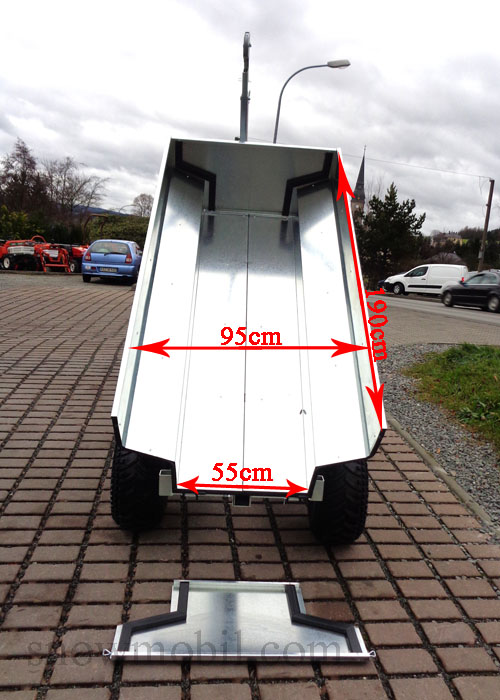

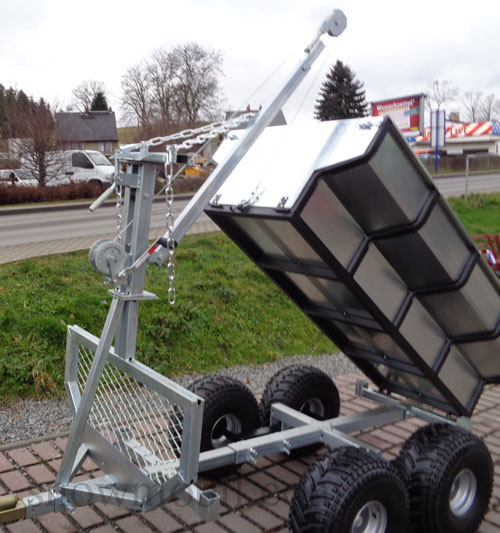

Here the skip / cargo box is mounted.

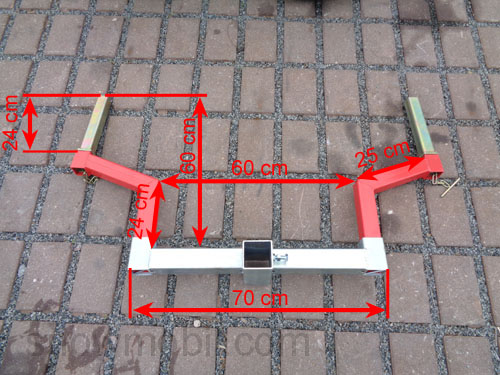

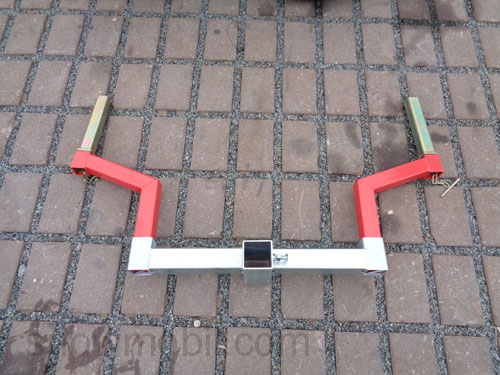

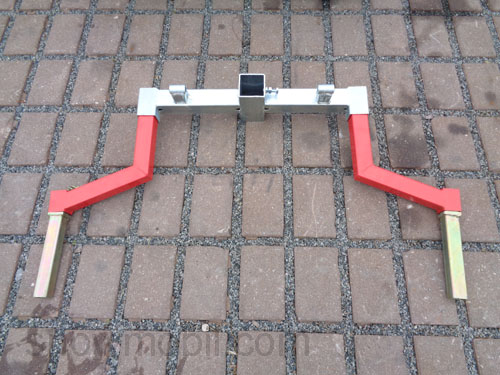

The additional stanchion is available for 130,00 Euro surcharge per piece (composed of 5 parts see pictures).

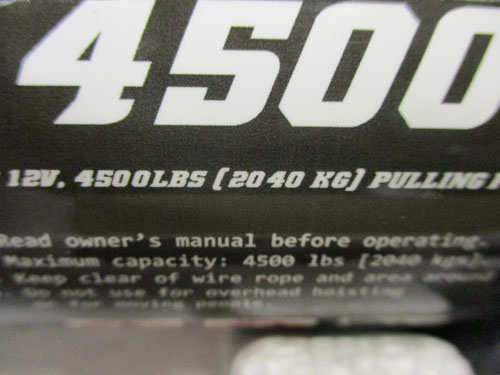

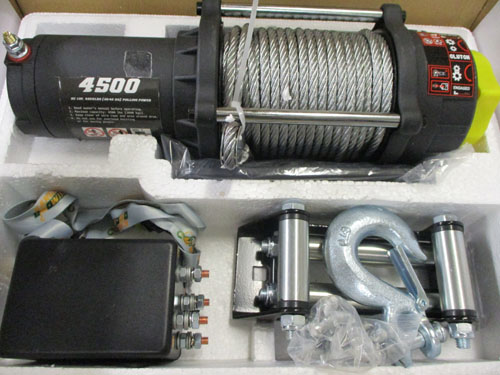

Winch 12V for 369.00 Euro extra cost.
- Line pull 2040 kg
- rope length 15 m

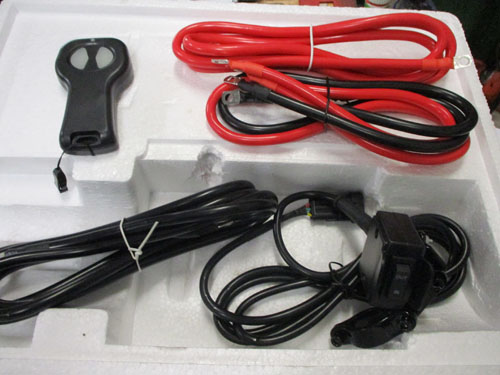

Remote control included
Hand winch available for an additional charge of EUR 80.00.

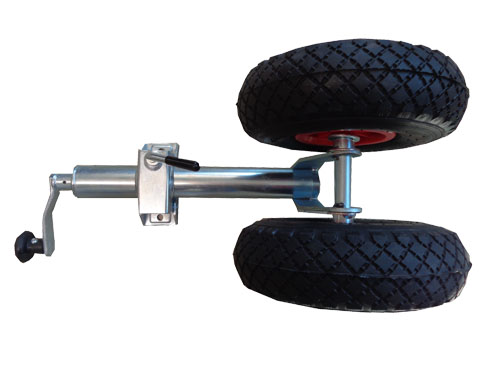

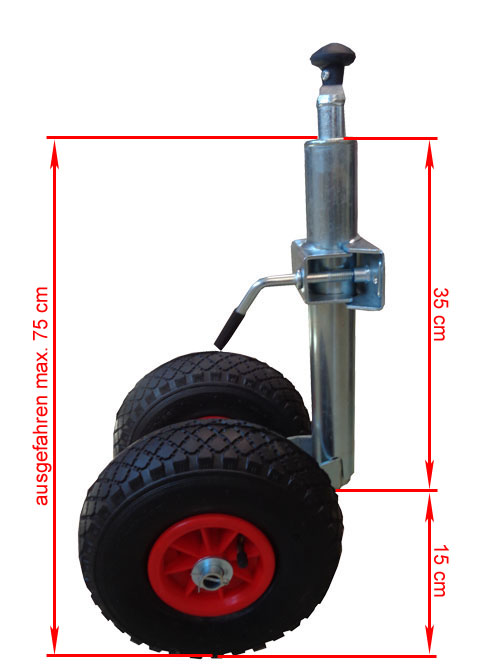

Support wheel FM2009 universal for trailer for 75 €

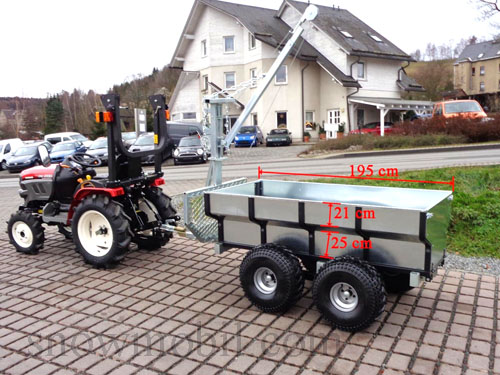

Skip/Cargobox for 650,00 Euro extra cost.
