The tare weight of the trailer is approx. 590 kg.

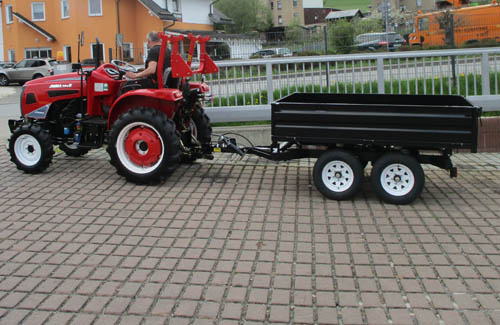

The trailer / tipper is particularly suitable for small tractors. The tipper / dump trailer is, in conjunction with a minitractor or small tractor as a tractor, ideally suited for private use or small business use.

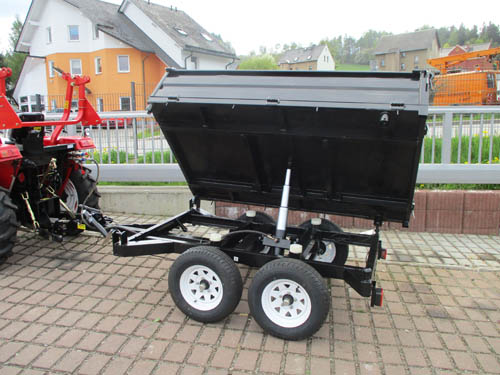

The trailer trough is designed as a 3 side tipper and can be tilted hydraulically up to 40°. The trailer trough can be tipped by connecting the quick coupling with the hose to the hydraulics available on the tractor. (Should an additional control valve be required, this can be supplied at extra cost).

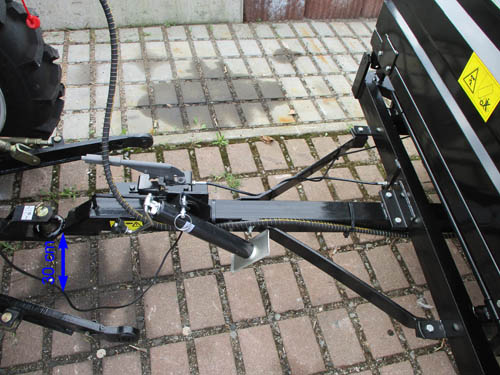

Distance of the towing jaw to the ground 30 cm
The trailer is equipped with an adjustable support and hand brake
Box inside dimensions
Light outside dimension
All drop sides can be folded. The side supports can be easily removed. Furthermore, each sideboard can be easily pulled out of the hinges.
Slight abrasions or paint damage from sea transport may be present.
We guarantee a serious transaction - you have full right of return.
Technical data
- Permitted total weight in road traffic: 750 kg
- Dead weight: 590 kg
- trough can be tilted hydraulically up to 40
- adjustable support
- drop sides foldable and removable

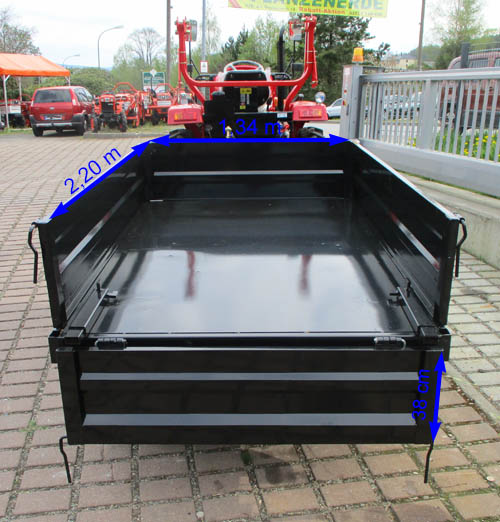

- box interior dimensions (LxWxH): 2330 x 1200 x 380 mm
- Wide tires: 165R 13C (dimension 600 x 150 mm)
- total length: 3,50 m
- optionally available against surcharge: car trailer coupling and agricultural towing hitch
The permissible total weight according to the manufacturer is 2 tons.
According to German regulations, the use is only allowed up to a total weight of 750 kg.
This results from the fact that this trailer is unbraked.
Especially when used with small tractors, utmost caution is always required.
On downhill slopes, the ratio between the tractor's own weight and the trailer's payload must be taken into account.
The extra charge for a complete assembly is 250 euros.
A road approval for 25 km/h / decragutachten is possible for 550.00 euros.

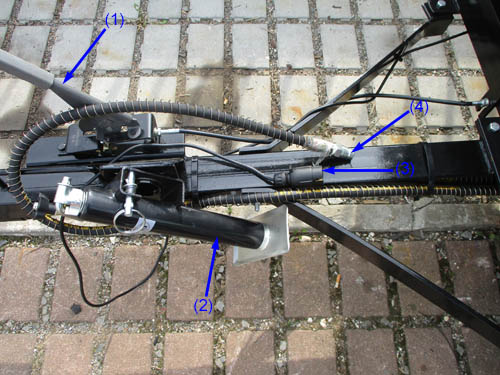

(1) hand brake
(2) swiveling support foot
(3) lighting 12V
(4) hydraulic connection
