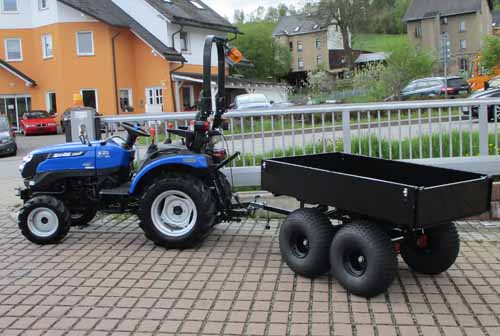

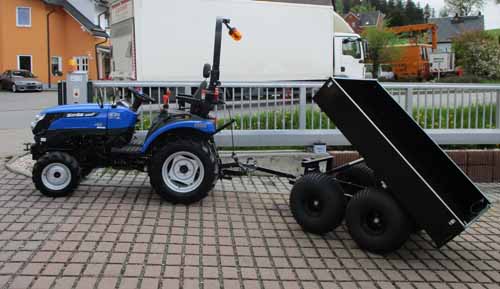

This trailer is suitable for any compact tractor with a car trailer hitch - but it is not street legal.
This durable tandem trailer is from United States and is sold there in large numbers.
It is about 15 years on the market there - it is elaborated and debugged. It also fits Quads / ATV / UTV.
The over-sized and soil gentle tires gives the trailer a good performance in both on and off the road.
A retrofitting including road approval at 25 km/h is possible for 550 Euro.
The extra charge for a complete assembly is 250 euros.
(Shipping costs for the assembled device then amount to 350 euros within Germany (except islands)
The wheels are bolted to the frame - the trailer does not have a swing axle.

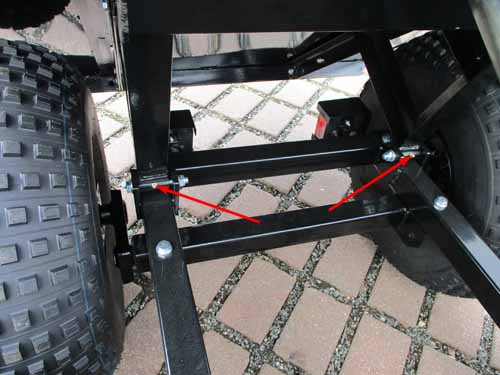

But it has swing arm-axles, which prevent swinging in rough terrain.

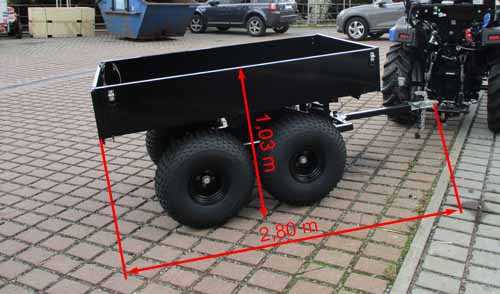

Due to the high ground clearance of 340 mm, the trailer is ideal for off-road.

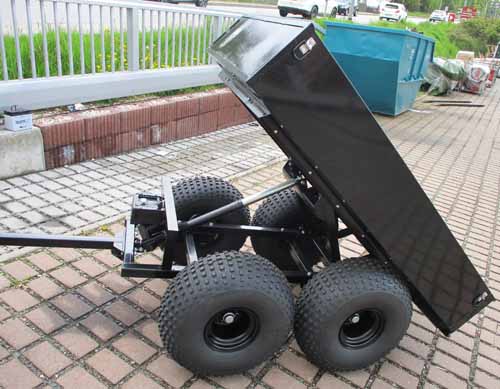

The loading platform can be tilted electrically via a 12 volt spindle drive motor.
The trailer comes with a wiring harness, which must be connected with the electrical system of the tractor by a qualified electrician.

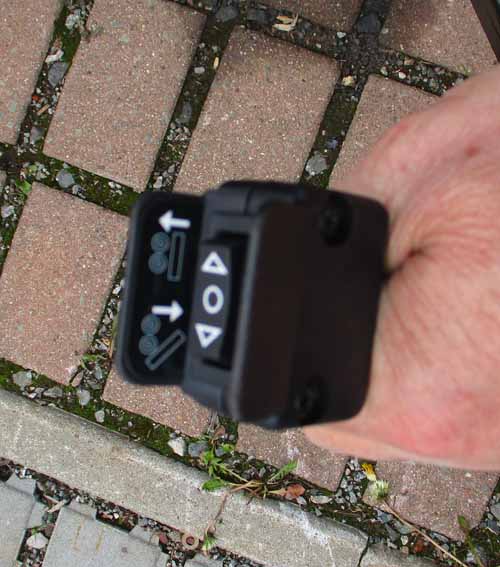

The lifting and lowering of the trailer is via a switch mounted on the front part of the tractor.

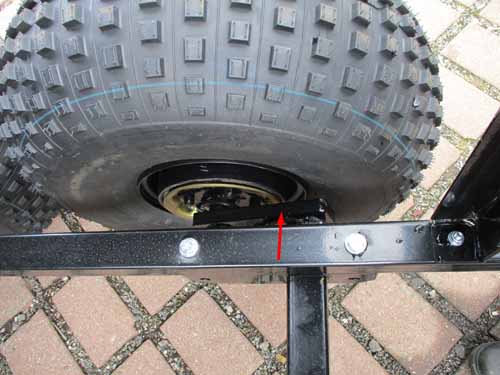

The trailer has an electric brake system.
Since on the road in Germany an electric brake system is not approved, this braking system must be switched off during road use of the trailer by a switch on the handlebars.
Outside of the road, the brake system can be used again.
You have to connect the brake cable to the brake light and when the tractor / quads is braking the trailer brakes delayed.
Wiring diagram:
- White cable 2,5mm² - Ground wire
- Black cable 2,5mm² - + battery
- Brown cable 1,5mm² - stoplight
- Yellow cable 1,5mm² - Ground wire
An important technical detail if the trailer is fully loaded.
We guarantee a serious carrying out. You have a full right of return.
Specification

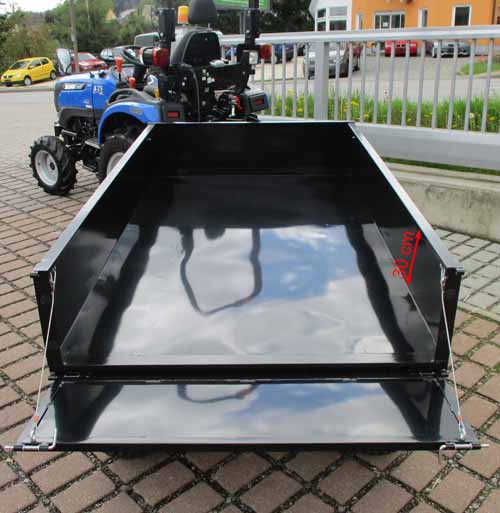

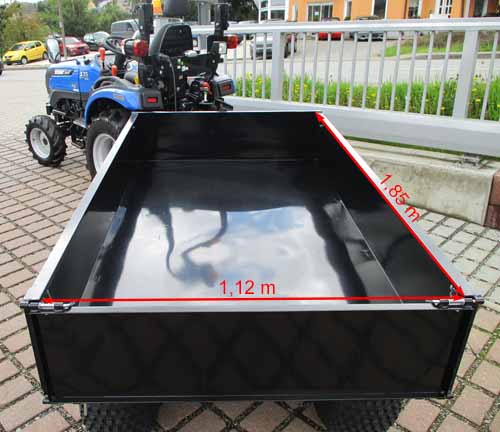

• Box/skip inner dimensions (LxWxH): 1800 mm x 1050 mm x 300 mm
• Payload: 750 kg
• Net weight: 244 kg
• ground clearance: 340 mm
• Powdered black frame with 4-square profile 50 x 50 mm
• Tilting device via 12 volt spindle drive motor
• electric tiltable when hitched
• protected brake light
• Tyres: 25x12.00-9

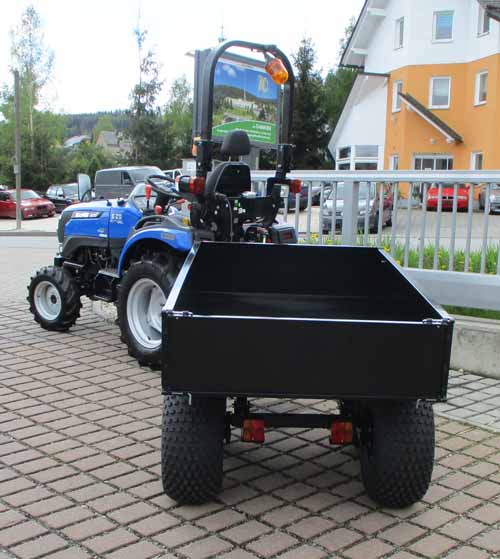

• foldable tailboard

The tailboard can be tilted optionally up or back,
but can also be easily removed if this should be necessary.

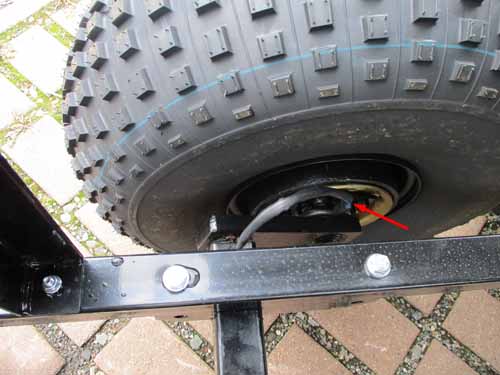

electrical connections for the brake

Pendulum axle mounted on silent rubber

greasable tipper pins
