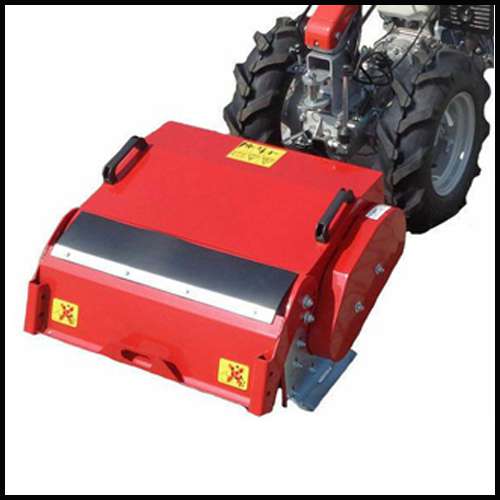

Flail mulcher TR60 flail mower for two wheel tractors with height-adjustable wheel set

Product no.: TR60EA

1.830,00 EUR   19 % VAT incl. Shipping inside Germany: 85,00 EUR *     * Shipping information Shipping time: immediately available from stock, since we have several stores in the vicinity, we ask for tel. Pre-registration for pick-up

flail mulcher TR60 flail mower
Suitable for walking tractors from 8,0PS

Because a flail mulcher has a very high power consumption it needs a drive power of 8.0 PS at least to operate the mower.
20 moving Y blades are attached On the knife/blade shaft.
The device is ideal for mowing lawns, parks, gardens, etc.. branches, rocks and other obstacles are not a problem because the blades fold away upon impact.
The cutting height is infinitely adjustable by means of the spindle.
With the two steering wheels, the flail mulcher matches perfectly to the prevailing ground conditions.

Specification

• 60 cm working width
• 20 Y-blades
• Infinitely adjustable cutting height
• front steering wheels
• 55 kg weight

Immediately available with adapter for walking tractors KM5/KAM413S and KM8/MAK17.

It is possible to install this implement via a transmission adapter in nearly all two wheel tractors (for example: Agria, Barbieri, Fort, Goldoni, Bertolini, Nibbi, BCS, Ferrari). Please ask for the price of the compatible adapter to your two wheel tractor.

In Italy there are about 50 walk behind tractors manufacturers. Each manufacturer has its own port, so we will need the information on the nameplate of the two wheel tractor (motor data are uninteresting).

Only then is it possible to get the right adapter. A majority of common adapters we have in stock. For direct orders in Italy, we need an average delivery time of approximately 3 weeks.

Furthermore, we need pictures and measurements from your two wheel tractor connector as follows:

walk behind tractor:

Diameter of the pipe connection or Quickfit connection on walk behind tractor

Sliding sleeve on walk behind tractor:

Number of teeth
(1) Inner diameter of the toothing
(2) outer diameter of the toothing

Screw connector of two wheel tractor:

(1) center to center of the bolt diameter
(2) Inside diameter

Number of teeth
(1) Inner Diameter
(2) outer diameter

Implement:

(1) Outside diameter of the implement
(2) Distance from center of hole to end of pipe
(3) length of the toothed shaft

Number of teeth
(1) Inner Diameter
(2) outer diameter

Screw connection of the implement:

(1) Inner diameter of the plug sleeve
(2) outer diameter of the plug sleeve

Diameter of the center

⇒ Typing errors, misapprehensions and changes excepted.
