Combined two wheel tractor KM8/MAK17S 11,0PS Kohler diesel engine KD15440AE with electric start and manual start

Combined two wheel tractor KM8/MAK17S 11,0PS Kohler diesel engine KD15440AE with electric start and manual start
Product no.: B2.2-10,9PS-D+K

5.549,00 EUR   19 % VAT incl.

Shipping inside Germany: 110,00 EUR *     * Shipping information

Shipping time: immediately available from stock, since we have several stores in the vicinity, we ask for tel. Pre-registration for pick-up

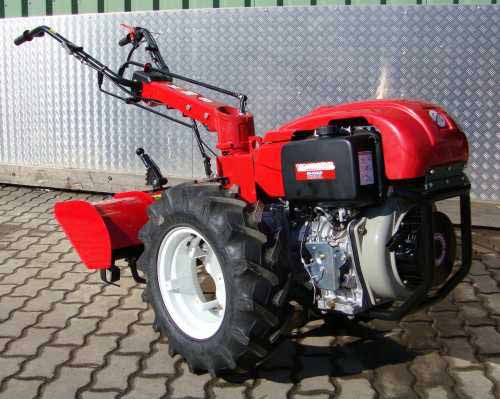

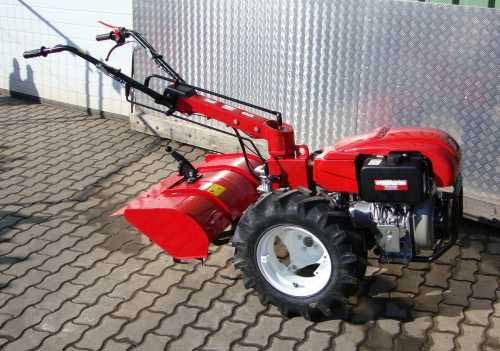

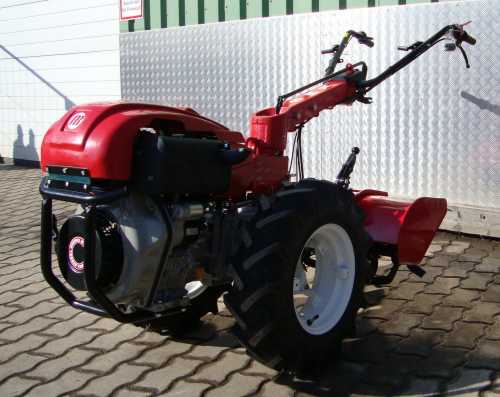

Combined two wheel tractor KM8/MAK17S 11,0PS Kohler diesel engine KD15440AE with electric start and manual start

The universal two-wheel-tractor which leaves nothing to be desired - whether for sophisticated private use or commercial gardening and landscaping.

The robust construction and the various implements allow it to be a reliable and safe help.

The two wheel tractor is produced in Italy as 90% of all combination units. From there, the devices are sold worldwide - in different colors, versions, engines, spar and sticker

Since 1997, we buy from this company two-wheel-tractors, which we sell retail and wholesale.

Gear damage, and serious engine damage never occurred. Typically, a Bowden cable, a spark plug or a air filter get broken. But that"s it!

We can deliver spare parts quick and easy.

As major advantage we see the compact design of the machine. The engine is flanged directly via a powerful clutch to the gearbox. To the end of the gear unit a large-sized quick release fastener is screwed where all the implements can be changed quickly without tools. This is an important advantage compared to the Japanese manufacturers of two wheel tractors, they implement the transmission of power through V-belts.

This walk-behind tractor is supplied with electric start and battery.

Special Features: As an important wear part, the clutch is a reinforced multi-plate clutch disc, fitted as standard from the factory. We could have let them install also a cheaper cone clutch, but the service life of these clutches is very limited when the clutches are used with tillers / snowblowers or rotary mowers.



This is the multi-plate clutch with 4 single clutch discs.


Here is the comparison between the two clutch inserts - once the small contact surface of the cone clutch (right) and in turn the significantly higher contact surface the multiple disc clutch (left).

<
cone clutch

The walkbehind tractor is ready for use and complete assembled, it will be delivered on a disposable pallet. You just need to remove the stretch film, refuel petrol and off you go.

We sell only products, which even have been extensively tested and found to be good.

We guarantee a serious carrying out. You have a full right of return.

Specification

441 cc / 10.9 HP Kohler diesel engine KD15440AE with hand start + electric start
• heavy-duty, durable multi-plate disc clutch
• 4 forward and 1 reverse gears (in both directions)
• Reverse gear (thereby you have in any forward direction 4 forward and 1 reverse gear)
• differential and lock
• solid hitch
• Quick spar adjustment
• independent drum brakes, single acting as a steering brake on each wheel
• Handlebar is mounted on silent blocks and can be swiveled 180 ° without tools
• Standard PTO with 2 speeds
• Included: - Farm tires 6.50/80-12 with change rim
- the wheel base can be adjusted 2x
- hitch for the single axle trailer
• Weight of walkbehind tractor with motor ca. 230 kg

optional with tiller

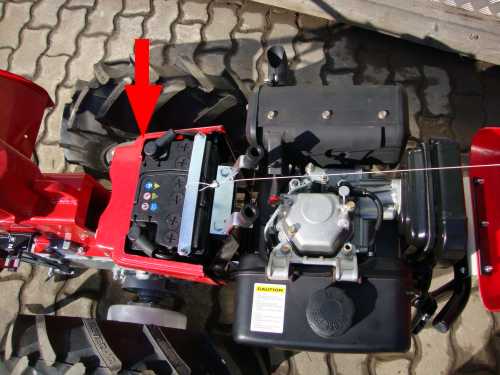

battery holder

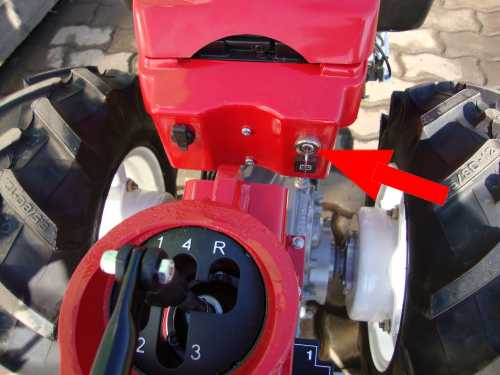

ignition lock

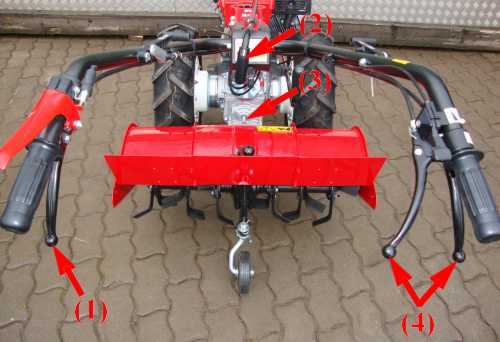

(1) clutch lever
(2) gear lever
(3) 2 PTO
(4) steering brake lever

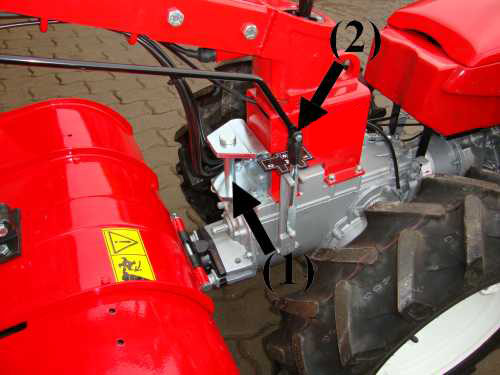

(1) stable big hitch
(2) PTO with 2 speeds

Speed and dimensions ​​of the walkbehind tractor:



For an additional charge we can supply the walkbehind tractor and trailer equipped road leagal.








⇒ Typing errors, misapprehensions and changes excepted.
