identical in construction to Bertolini 413
We sell only products, which even have been extensively tested and found to be good.

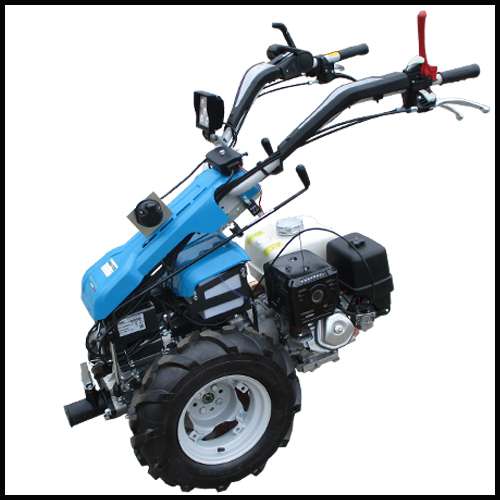

The universal two-wheel-tractor which leaves nothing to be desired - whether for sophisticated private use or commercial gardening and landscaping.
The robust construction and the various implements allow it to be a reliable and safe help.
The two wheel tractor is produced in Italy as 90% of all combination units. From there, the devices are sold worldwide - in different colors, versions, engines, spar and sticker
Since 1997, we buy from this company two-wheel-tractors, which we sell retail and wholesale.
Gear damage, and serious engine damage never occurred. Typically, a Bowden cable, a spark plug or a air filter get broken. But that"s it!
We can deliver spare parts quick and easy.
We guarantee a serious carrying out. You have a full right of return.
Specification
- electronic ignition
- 9,6 kW/13,0 PS easy-start GX390 Honda engine with 390 cc displacement
- heavy-duty, durable multi-plate disc clutch
- 3 forward and 3 reverse gears (EN 709 standard) with limited slip differential
- Reverse gear (quick switching from forward to reverse)
- differential and lock
- solid hitch
- Quick spar adjustment
- independent drum brakes, single acting as a steering brake on each wheel
- Included: - agricultural 5.00x10 tires with rim exchange
- the wheel base can be adjusted 2x
- Quick-change connector and hitch for the single axle trailer
- Weight of walkbehind tractor with motor and flail mulcher(not included) about 125 kg
- with Electric start, street legal, Dekra report
Video KM5 at work
(mounted implements not included):
As major advantage we see the compact design of the machine. The engine is flanged directly via a powerful clutch to the gearbox. To the end of the gear unit a large-sized quick release fastener is screwed where all the implements can be changed quickly without tools. This is an important advantage compared to the Japanese manufacturers of two wheel tractors, they implement the transmission of power through V-belts.
Special Features: As an important wear part, the clutch is a reinforced multi-plate clutch disc, fitted as standard from the factory. We could have let them install also a cheaper cone clutch, but the service life of these clutches is very limited when the clutches are used with tillers / snowblowers or rotary mowers.
This is the multi-plate clutch with 4 single clutch discs.
Here is the comparison between the two clutch inserts - once the small contact surface of the cone clutch (right) and in turn the significantly higher contact surface the multiple disc clutch (left).
<
cone clutch
The walkbehind tractor is ready for use and complete assembled, it will be delivered on a disposable pallet. You just need to remove the stretch film, refuel petrol and off you go.
This is a meadow with peat under ground, which was not mowed for 2 years. This KM5 with 16PS two-cylinder makes for a good work.
Additional option
- also available with a Honda engine GX390/13 HP for 5090,- Euro
- also available with a Diesel engine K9000HD/9,2 PS for 4590,- Euro
For an extra charge, we can supply the single-axle machine equipped with a trailer road. For this it is necessary to equip the engine with electric start, as well as a battery and a battery holder. The engine with electric start has an alternator as standard, with which the battery is recharged. Furthermore, a headlight and the entire lighting system is mounted.
