Cable winch, forestry winch KBF1000 skidding winch chainsaw

1.680,00 EUR 19 % VAT incl.

Shipping inside Germany: 45,00 EUR * * Shipping information

Shipping time: immediately available from stock, since we have several stores in the vicinity, we ask for tel. Pre-registration for pick-up

Item is temporarily not available!

A real alternative, because it is characterized by low weight and a maximum pull length of 80 m.

The pulling speed is approximately three times faster as with a ATV winch or car winch.

The delivery includes only the winch without adapter and without chainsaw!

It is recommended to use a chain saw of 3.0 - 4.8 kW.

Auto return stop with clutch pressed inthat would slow down the load.

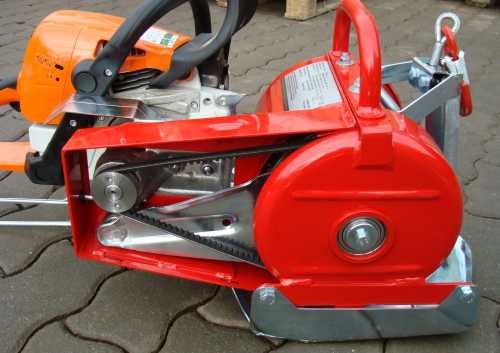

The coupling is made of three clutch discs.

With a control lever, the clutch and brake can be actuated.

Especially in impassable, steep terrain, the winch is a real help.

This winch can be used in emergency rescue, medical, vehicle recovery, forest, hunters, construction companies, sewer, cable laying etc..

typical uses
• recover of deadlocked vehicles
• pull down loads of trailers
• pulling of logs in rough terrain
• recover of heavy battue
• salvaging boats out of the water
• pulling of building materials and construction material
• rescue operations
• pulling electric cables

Attached is the original brochure of the manufacturer! (PDF)

Attached is the list of available adapters - at surcharge of € 120,00 per adapter!

Art.No.+ Drive Motor Type

12011 Stihl 08 + Glocke 211088
12012 Stihl MS290, MS310, MS311, 390, MS 391 + additional cup 211088
12013 Stihl 038, 042, 044, MS 440, MS 441, 046, MS 460, 048, 064, MS 640
12014 Stihl 045, 056
12015 Stihl 050, 051 Glocke
12018 Stihl Contra, 070 Glocke
12019 Stihl 040, 041
12020 Stihl 07 (not available)
12022 Stihl 034, MS341, 036, MS 361, 361 Stern
12023 Stihl 076
12076 Stihl MS 660, 066, MS 362, 461,462
12080 Stihl MS 661
12030 Husquarna 61, 266, 268, 272, 280, 281, 285,480, 385 Glocke
12031 Husquarna 65, 77 Glocke
12034 Husquarna 357, 359, 262, 555
12035 Husquarna 55, 154, 254, 257
12036 Husquarna 90 F Glocke
12060 Husquarna 66, 356, 365, 371, 372, 562, 575, 576 Stern
12063 Husquarna 362 Stern
12068 Husquarna 460
12069 Husquarna 394 Glocke
12074 Husquarna 395xp, 390xp
12077 Husquarna 560xp
12078 Husquarna 562xp
12030 Jonsered 625II, 630, 670, 830 Glocke
12034 Jonsered 2159, 2156 Glocke
12036 Jonsered 2095, 2094 Glocke
12037 Jonsered 2077 , 2177, 2083, 2188 Stern
12050 Jonsered 820, 910, 920, 930, 8020 Glocke
12060 Jonsered 2071, 2171, 2065, cs2165, cs 2172 Stern
12063 Jonsered 2163, 2063 Stern
12079 Jonsered cs 2260
12070 Dolmar 6400 (not available)
12071 Dolmar 7300, 7900, 7310, 7910
12072 Dolmar 120, 6800
Dolmar 133 (not available)
12073 Solo 694

This winch is ready for use.

We assemble and test all machines and devices before shipment, and so you have less risk.

We guarantee a serious carrying out. You have a full right of return.

Specification

recommended engine power: 3-5,2 kW (4,1-7,2 hp)
Standard cable: 80 m long with 6 mm diameter
traction in the direct pull: max. 1 ton
Pulling force with pulleys: max. 2 tons
Max. pulling speed: up to 30 m / min. and 0.5 m / sec.
Dimensions (LxWxH): 580 x 400 x 350 mm
Light weight of only 42.0 kg with rope
included only the winch without an adapter and without chain saw

For your information:

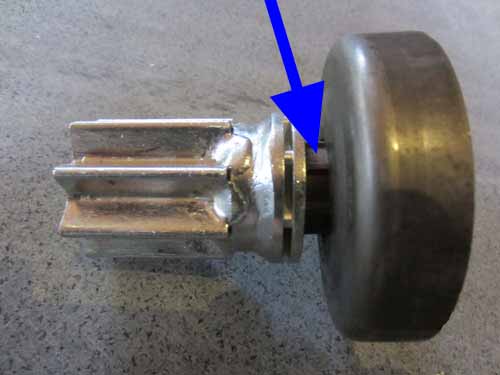

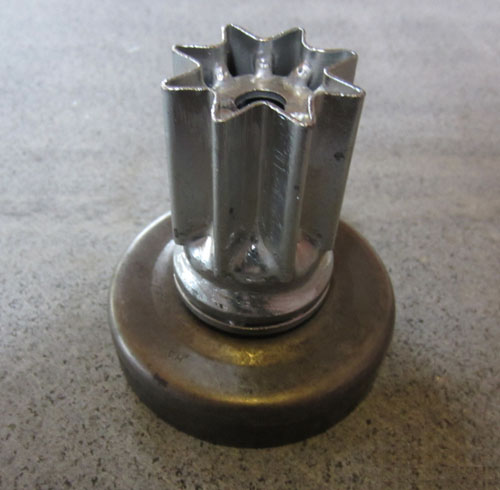

Dear Customer, the adapter for the chainsaw is principally designed for connection to a chain wheel with Power Made. That is, the chain with star must be replaced with a chain wheel with Power Made.
