Winch hydraulic winch forest winch tractor winch - building kit for tractors small tractors

The hydraulic winch is a kit and therefore does not yet conform to the CE.

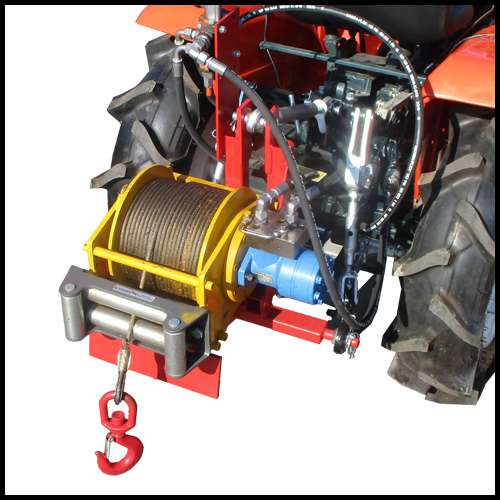

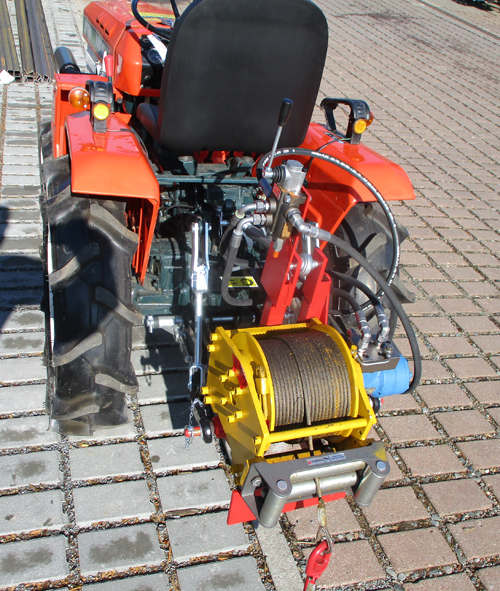

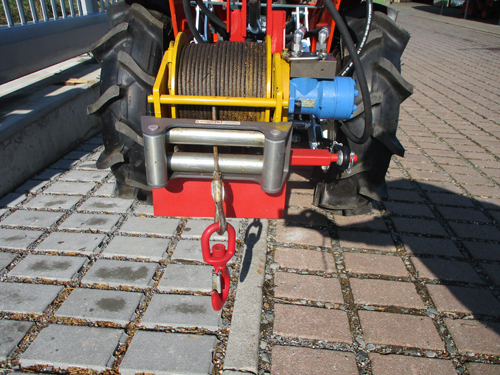

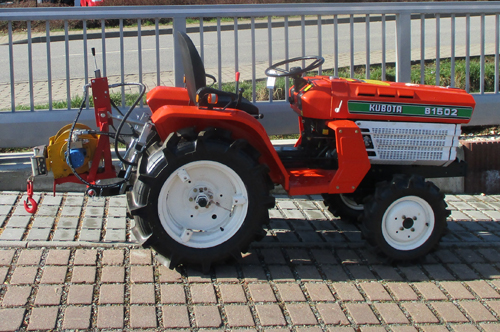

The cable winch is equipped on a frame with a KAT 1 suspension for small tractors.

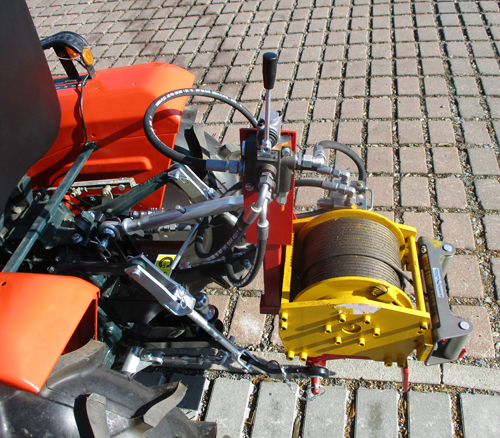

The hose set and the control valve are included in the standard scope of delivery.

The customer must implement the connection and the existing hydraulic system of the tractor himself.

The safety cover, back support, spacer device are a matter for the customer or to be implemented by the customer.

The cable winch is made very robust.

Among other things, it is used as a component in the construction industry.

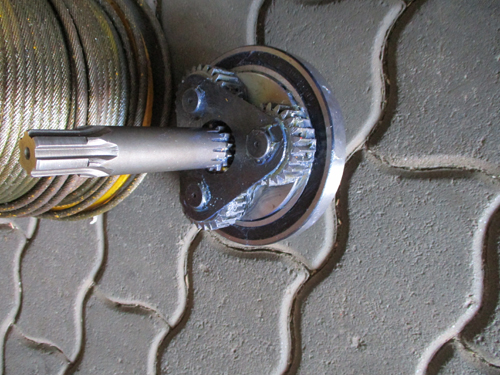

The drive takes place via a planetary gear which is permanently greased.

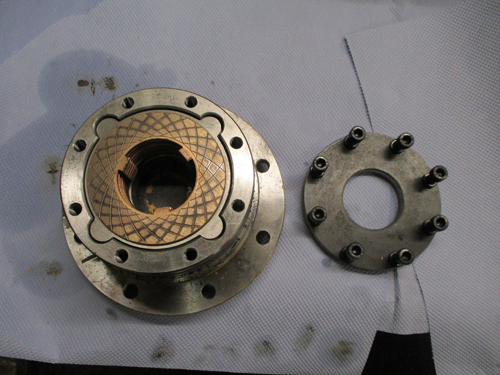

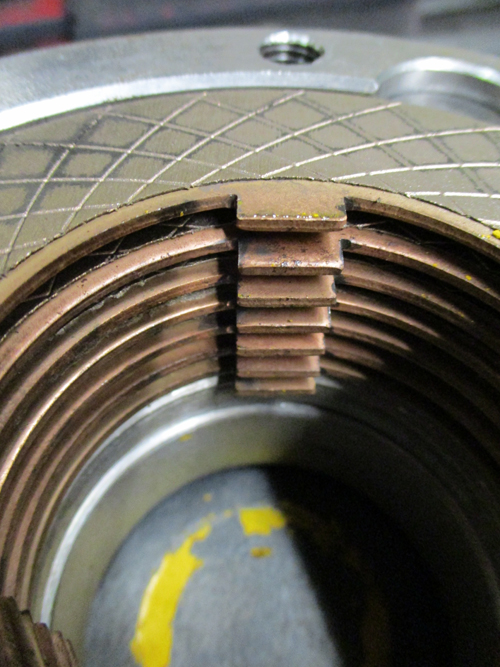

A 7-layer multi-disc brake is also installed.

Braking occurs immediately when stopping.

The hydraulic brake opens depending on how the control valve is operated.

If the control valve is set to the O position, the brake is applied immediately.

The rope can only be pulled in or pulled out when the control valve is actuated.

The tractor is not included in the scope of delivery!

Technical specifications

• Rope: 8 mm, 50 m long
• Tractive force: 1 ton

• Oil quantity: from 15 l / min

• Permanent oil pressure: 16 Mpa

• Weight: 110 kg

SUPPLIER'S DECLARATION FOR COMPONENTS

We hereby declare that this product is intended for installation and assembly / mounting in a machine.

The machine in which the above-mentioned part is to be installed must not be put into operation until it has been determined that the machine complies with the provisions of the Machinery Directive.

All resulting damage is not the responsibility of Motorgeräte Fritzsch GmbH. Motorgeräte Fritzsch GmbH does not accept any liability for damage, as we have no influence on the installation, use and safety of the machine.

The construction and use must be carried out in such a way that all necessary safety regulations are met.
